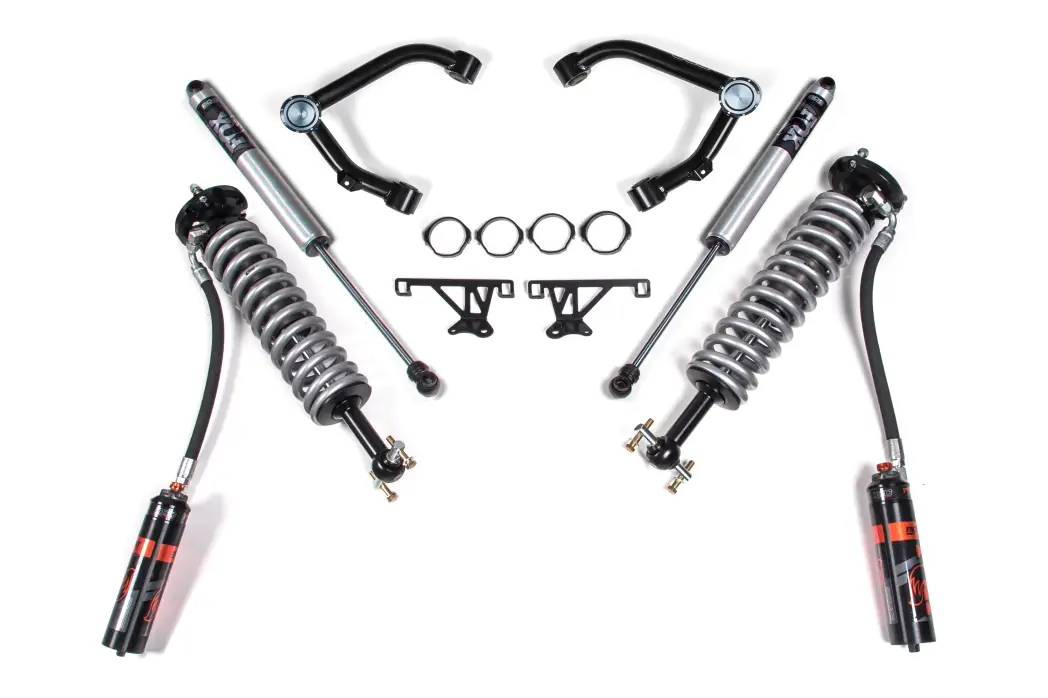

BDS769FDSC | BDS Suspension 2 Inch Lift Kit With Fox 2.5 Coilover For Chevrolet Silverado / GMC Sierra 1500 4WD | Aluminum / Stamped Steel Factory Control Arm | Fox 2.0 Performance Series Shocks

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100% Bolt on installation

• 285 / 70 with 17 x 9 and 4.5 in. Backspace
• 285 / 70 with 20 x 9 and in. Backspace
• 33 x 12.5 with 20 x 9 and 4.5 in. Backspace

DSC Adjustment

FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Important Notes

1. 33x12.50 tires will require weld on steering stop, also it requires inner fender well modification to clear this width tire
2. Will Not fit MagneRide magnetic ride control equipped models
