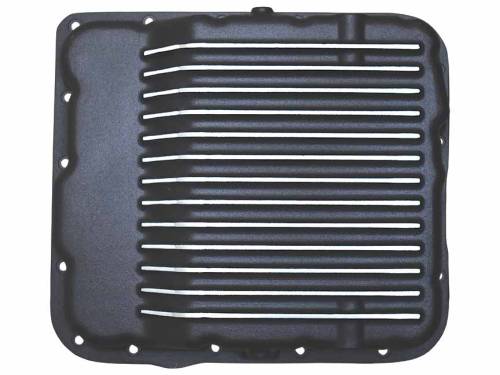

9427-B | PML Cover GM 4L60E, 4L65E, 4L70E, 4L75E Deep Transmission Pan For Chevrolet Avalanche Silverado 1500 & Tahoe / GMC Sierra 1500 & Yukon / Cadillac Escalade / Hummer H2 | Black Powder Coat Finish

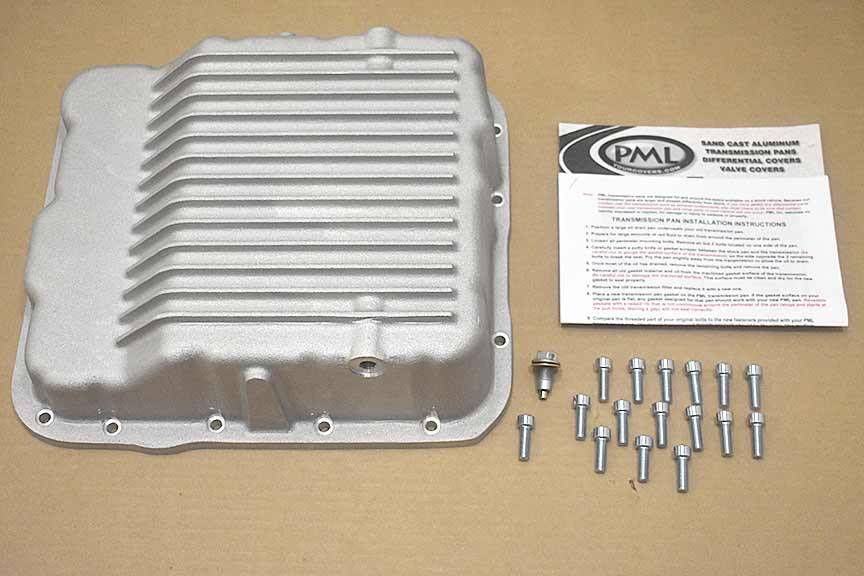

Pan includes magnetic drain plug and mounting hardware.

Volume:

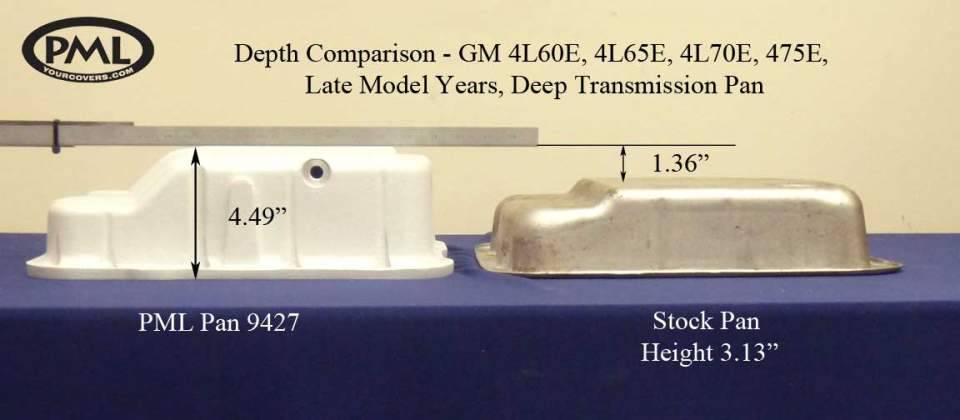

 1.5 quarts over stock GM deep pan

Number of Bolts:

16

This PML pan fits GM 4L60E, 4L65E, 4L70E, and 4L75E transmissions.

PML designed this pan as a heavy duty, extra capacity replacement for the GM and Chevy trucks and SUVs, 1999 and newer.

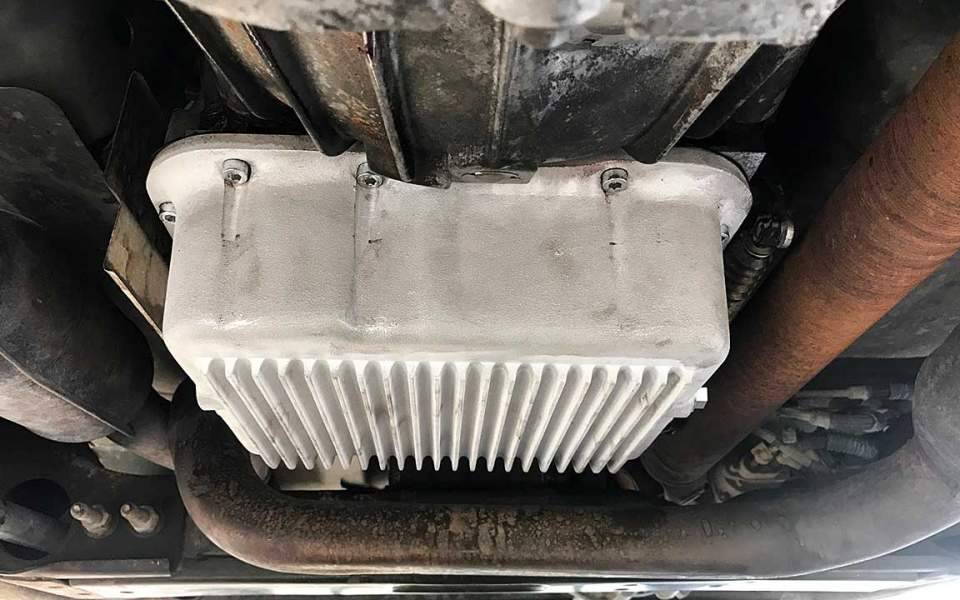

The step at the back of the PML pan matches the step at the rear of the stock pan to clear the exhaust pipe or frame cross member.

If your vehicle has a shallow pan, other than the few exceptions in Applications, see PML 700R4 4L60 deep pan, part number 8650-1, or PML 700R4, 4L60 stock capacity pan, part number 9297.

Benefits:

• Extra capacity
• Drain hole and magnetic drain plug for easy fluid changes
• Finned for cooling
• Heavy duty sand cast aluminum construction
• Machined flat gasket sealing surface
• Can optionally be machined for a temperture sending unit

Always check your vehicle before ordering. There are many configurations and options, so you must verify transmission and clearance.

Models of these vehicles have installed this pan or may be able to use this pan:

• Avalanche, 2002 to 2009, 5.3 or 6.0 engine, 4 speed transmission
• Cadillac Escalade, 1999 to 2006
• Envoy, 2002 to 2009
• Express, 1999 to 2014, 4 speed transmission
• Hummer H2, 2003 to 2007
• Isuzu Ascender, 2003 to 2009
• Saab, 9-7, 2005 to 2009
• Savana, 1999 to 2014, 4 speed transmission
• Silverado 1500, 1999 to 2013, 4.3, 4.8, 5.3, or 6.0 engine, 4 speed transmission
• Sierra 1500, 1999 to 2013, 4.3, 4.8, 5.3, or 6.0 engines, 4 speed transmission
• SSR, 2003 to 2006, 5.3 or LS2 6.0 engine, automatic transmission
• Suburban 1500, 2000 to 2009, 5.3, 6.0 engine, 4 speed transmission
• Tahoe, 2000 to 2008, 4.8 and 5.3 engine
• Tahoe, 2009, 4.8 engine
• Trailblazer, 2002 to 2009
• Trailblazer SS, 2006 to 2009
• Yukon, 2000 to 2008, 4.8 and 5.3 engine
• Yukon, 2009, 4.8 engine

Some 2007 and newer vehicles have 6 speed transmissions. See PML 6L80 or 6L90 transmission pans for those applications.

Note to H3, Colorado 4WD, Canyon 4WD: Some 4WD Chevrolet Colorado and GMC Canyon as well as the Hummer H3 and H3T models have the 4L60E transmission. The front drive shaft on these vehicles is too close to the side of the transmission pan to allow the larger PML transmission pan to be installed.

Do not use this pan on a 700R4 or 4L60 transmission (vehicles about 1993 and older) due to filter incompatibility.

Stock GM Shallow Pan, Exhaust Under Pan, and Want a Deep Pan?

The following trucks and SUVs came with the stock GM shallow pan and may have an exhaust pipe close enough to the pan to prevent the installation of PML 700R4, 4L60 deep pan, part number 8650-1. This PML pan, part number 9427, can be used for these applications IF you switch to the filter for the GM deep pan.

• C1500/K1500, 1996 to 1998, 4.3, 5.0, or 5.7 engine
• Suburban 1500, 1992 to 1999, 5.7 or 6.5 diesel engine
• Tahoe, 1995 to 1999, 5.7 engine
• Yukon 1992 to 1999, 5.7 engine

Be very careful if you change to a different stock filter. Future fluid changes and filter replacements must use the correct filter for the PML pan.

Installer must verify pan fitment and filter installation. If the filter does not fit or work correctly, the transmission damage can occur.

See the section on filters in Specifications.

If you have the stock GM shallow pan and do not have the exhaust routed under your stock pan, then see PML 700R4, 4L60 deep pan, part number 8650-1 or PML 700R4, 4L60 stock capacity pan, part number 9297.

Filter Information

PML designed this pan to work with the 4L60E filters that fit the stock GM deep pan.

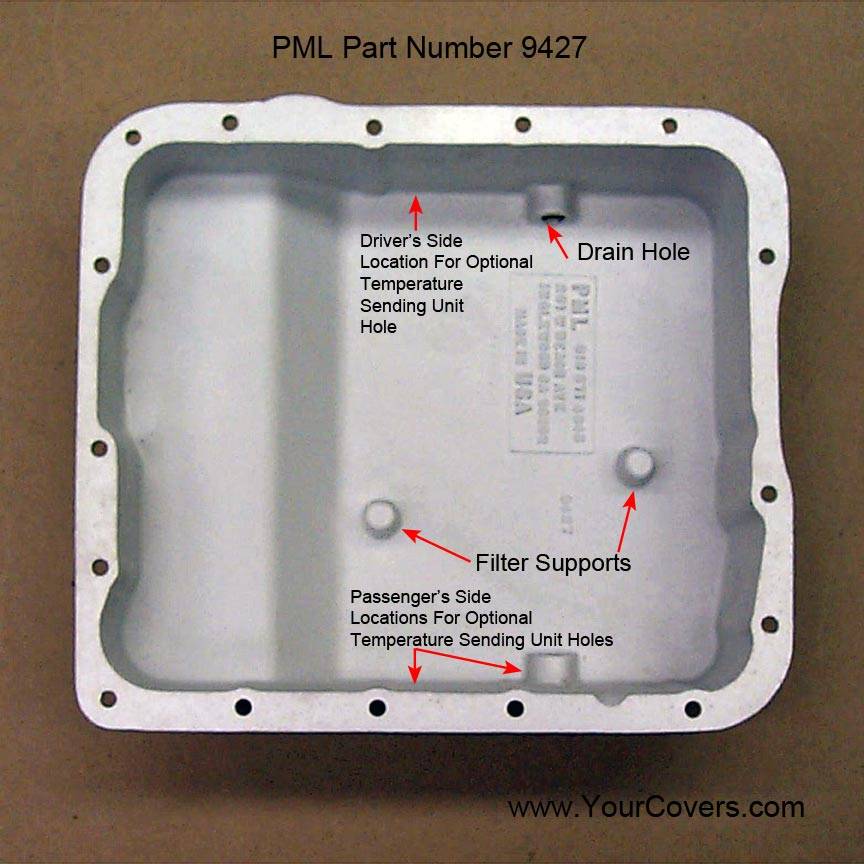

Filter Supports, Temperature Sending Unit Locations and Drain Hole Inside of Pan

This transmission pan has filter supports on the inside. A filter extension is not needed.

The drain hole is on the driver/left side.

Optionally, you can drill and tap this pan for a 1/8 NPT hole for a temperature sending unit. The locations are on the side of the pan. This would be for an aftermarket temperature gage.

The standard size is 1/8 NPT.

Gasket

PML recommends a cork or cork composite gasket for use with our GM 700R4, 4L60, 4L60E, 4L65E, 4L70E, 4L75E transmission pans. Any brand of cork/cork composite gasket is good. An example of one from Mahle, available at RockAuto.com. The Mahle part number is W39365.

Shift Cable Mounting Bracket

If you have a bracket that attaches to the stock pan, check carefully before ordering.

You may have to modify the cable mounting bracket to use this pan. Some brackets will not work at all with this pan because of the thicker walls and flange.
