10815-1-B | PML Covers As GM 8.5/8.6 Rear Horizontal Fins 10 Bolt Differential Cover For Chevrolet Blazer, Tahoe, Canyon, Colorado & Suburban/Avalanche 1500 / GMC Jimmy, Yukon & Canyon / Hummer H3 | Black Powder Coated, Stock Bolt Size 8mm-1.25x21 (-1)

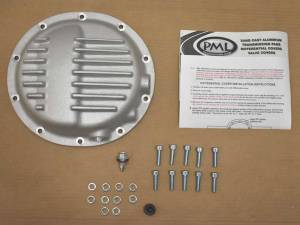

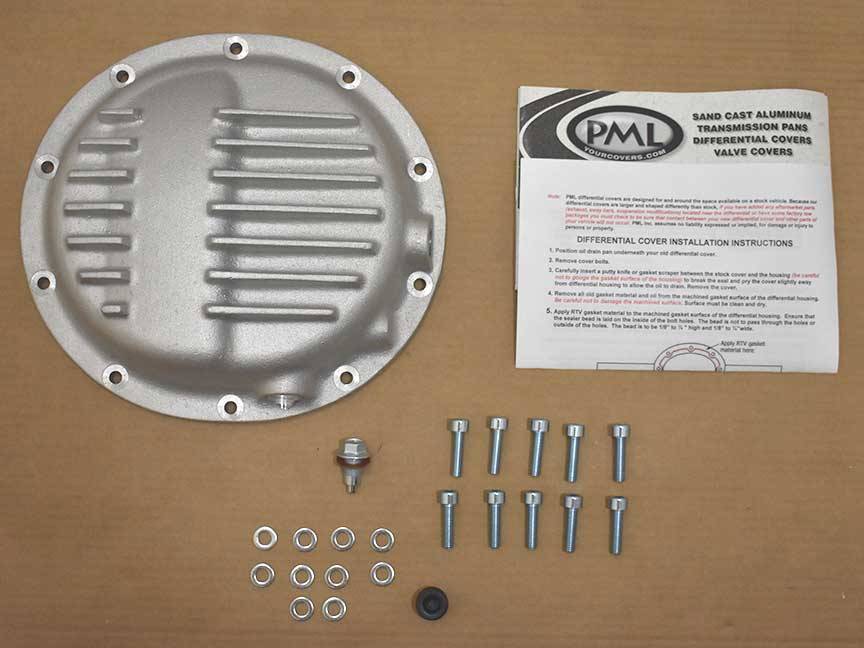

Cover includes magnetic drain plug and mounting hardware.

Stock Bolt Size 8mm-1.25x21 (-1)

Volume:

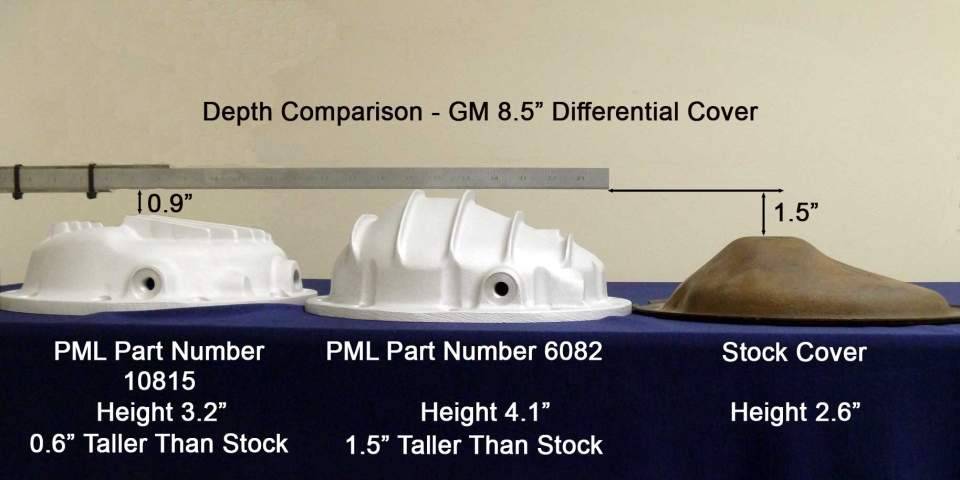

0.5 qt. over stock, approximately

Number of Bolts:

 10 bolts

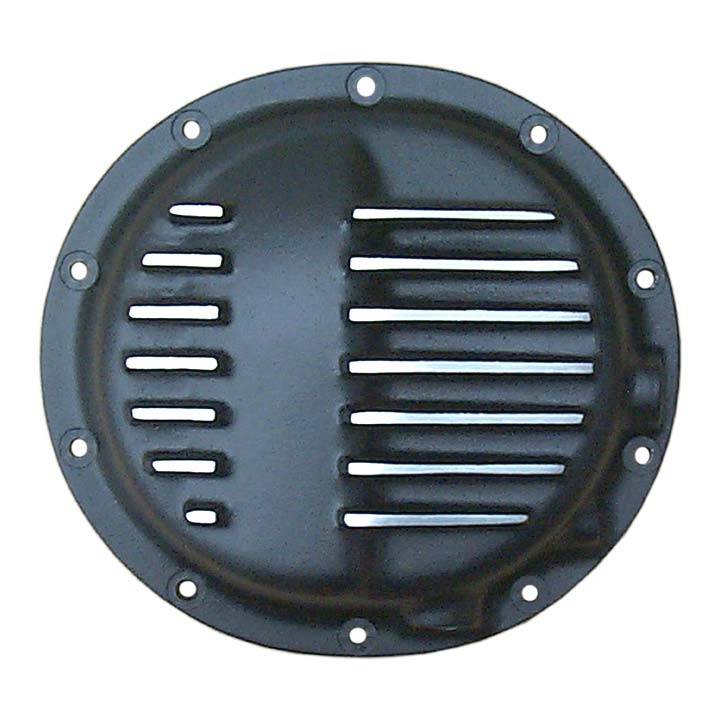

PML makes two covers for the GM 8.5, 8.6 inch ring gear differential, 10 bolts. This cover has a classic round shape and straight vertical fins. For the other cover, see PML GM 8.5, 8.6, Horizontal Fins differential cover, which offers more clearance.

Benefits:

• Extra capacity
• Drain hole and magnetic drain plug to simplify maintenance
• Large, vertical fins for heat dissipation
• Sand cast aluminum construction for thick walls

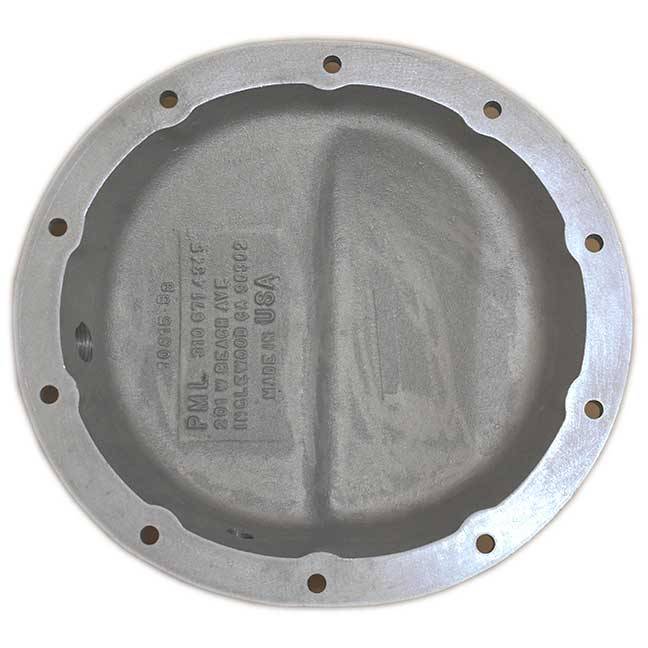

• Machined gasket flange for a secure seal
• Round shape similar to profile of stock cover

Note that 8.6 is a short hand reference for the 8.625 or 8 5/8 when written as a fraction.

For a GM 8.2 10 bolt, see 8.2 Rear Differential Cover Info.

This PML cover fits the GM 8.5, 8.6 rear differential. Many GM, GMC, and Chevrolet vehicles since the 1980s have this. Be aware that for each model and year there may be more than one rear differential possible.

Configurations vary. Always check your vehicle to verify differential and clearance. Some typical vehicles that MAY be able to use this differential cover:

• ½ Ton Trucks, ½Vans and ¾ Vans, 1979 to 2021:
  • C10 & K10
  • C1500 & K1500
  • Silverado 1500, some 2014 and newer have one of the GM 9.5 12 bolt rear covers
  • Sierra 1500, some 2014 and newer have one of the GM 9.5 12 bolt rear covers
  • Vandura
  • Express & Savana
  • G1500 & G2500
• ¾ Ton Trucks and Vans, 1979 to 1998
  • C20 & K20
  • C2500 & K2500
• Chevy and GM SUVs
  • 1977 to 1994 Full Size Blazer
  • 1977 to 1991 Jimmy
  • 1982 to 2021 Suburban 1500 (check for panhard bar clearance)
  • 1992 to 2021 Avalanche 1500, Escalade, Tahoe, Yukon (check for panhard bar clearance)
  • Hummer H3 (check for panhard bar clearance)
• 2002 to 2012 Canyon and Colorado (many models have similar GM Torsen 8.0)

1960s and 70s GM Muscle Cars: some may have a GM 8.2 differential, which is very similar and was used in cars such as Chevelle, GTO, Impala, Monte Carlo and Nova. Check bolt hole pattern carefully. See 8.2 Rear Differential Cover Info.

Police Pursuit Vehicles: generally PPV models have less clearance.

Front Differential: See PML GM Front 8.5 differential cover. This cover is for the rear.

Optional Temperature Sensor Port

The boss on the side can optionally be machined for temperature sending unit. There is a machining charge and a plug is included.

Bolt Information

GM has used four different bolts for this differential.

Gasket Information

PML recommends RTV or paper/fiber gaskets or cork composite gaskets.

PML machines the gasket surface of our differential covers flat. The flange surface of the differential housing is also machined flat. A thin bead of RTV silicon sealant makes an excellent seal between two machined surfaces.

Some of our customers have recommended the Fel-Pro RDS 55028-1 gasket.
