BDS900PSS | BDS Suspension 4 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Chevrolet Avalanche / Suburban 1500 / Tahoe / GMC Yukon / Yukon XL 1500 4WD | Rear Lift 3 Inch Coil Spacer | Fox 2.0 Performance Series Shocks

For 2007-2013 Chevrolet Avalanche / 2007-2014 Chevrolet Suburban 1500 / Tahoe / 2007-2014 GMC Yukon & Yukon XL 1500

BDS900PSS
Pricing: $6,237.12
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

Features & Benefits

  • Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
  • The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
  • High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas rear shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 32 x 11.5 with 17 x 8 and 4.5 in. Backspace
  • 33 x 12.5 with 18 x 9 and 5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Rear Lift Option

BDS offers 3" or 2" rear coil spring spacers for a level or tail high stance with this kit!

Coil Spacers

  • Maintains factory ride quality
  • Made with heavy-duty steel construction
  • Powdercoat finish for long-lasting durability

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Important Notes

  1. Will not work with auto-ride equipped vehicles. Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
  2. Minor frame bracket modification and welding are required.
  3. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
  4. Add BDS121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment

Specification

  • Front Lift Method : Cross Member & Coil-Over
  • Front Lift Height : 4"
  • Rear Lift Method : Coil Spacer
  • Rear Lift Height : 3"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007ChevroletAvalancheALL4WDALLFront and Rear4"
2007GMCYukonSLE4WDALLFront and Rear4"
2007ChevroletTahoeLT4WDALLFront and Rear4"
2007GMCYukonSLT4WDALLFront and Rear4"
2007GMCYukon XL 1500SLT4WDALLFront and Rear4"
2007ChevroletTahoeLS4WDALLFront and Rear4"
2007ChevroletTahoeLTZ4WDALLFront and Rear4"
2007GMCYukon XL 1500SLE4WDALLFront and Rear4"
2008ChevroletAvalancheALL4WDALLFront and Rear4"
2008GMCYukonHybrid4WDALLFront and Rear4"
2008ChevroletTahoeLTZ4WDALLFront and Rear4"
2008GMCYukon XL 1500SLE4WDALLFront and Rear4"
2008ChevroletTahoeHybrid4WDALLFront and Rear4"
2008GMCYukonSLE4WDALLFront and Rear4"
2008GMCYukonSLT4WDALLFront and Rear4"
2008GMCYukon XL 1500SLT4WDALLFront and Rear4"
2008ChevroletTahoeLT4WDALLFront and Rear4"
2008ChevroletTahoeLS4WDALLFront and Rear4"
2009ChevroletTahoeHybrid4WDALLFront and Rear4"
2009GMCYukonSLT4WDALLFront and Rear4"
2009ChevroletAvalancheALL4WDALLFront and Rear4"
2009GMCYukon XL 1500SLE4WDALLFront and Rear4"
2009ChevroletTahoeLT4WDALLFront and Rear4"
2009ChevroletTahoeLTZ4WDALLFront and Rear4"
2009GMCYukonSLE4WDALLFront and Rear4"
2009GMCYukon XL 1500SLT4WDALLFront and Rear4"
2009ChevroletTahoeLS4WDALLFront and Rear4"
2009GMCYukonHybrid4WDALLFront and Rear4"
2010GMCYukonSLT4WDALLFront and Rear4"
2010ChevroletAvalancheALL4WDALLFront and Rear4"
2010GMCYukon XL 1500SLT4WDALLFront and Rear4"
2010GMCYukonDenali Hybrid4WDALLFront and Rear4"
2010GMCYukon XL 1500SLE4WDALLFront and Rear4"
2010GMCYukonSLE4WDALLFront and Rear4"
2010ChevroletTahoeHybrid4WDALLFront and Rear4"
2010ChevroletTahoeZ71ALLALLFront and Rear4"
2010GMCYukonHybrid4WDALLFront and Rear4"
2010ChevroletTahoeLTZ4WDALLFront and Rear4"
2010ChevroletTahoeLS4WDALLFront and Rear4"
2010ChevroletTahoeLT4WDALLFront and Rear4"
2011GMCYukon XL 1500SLE4WDALLFront and Rear4"
2011GMCYukonSLE4WDALLFront and Rear4"
2011ChevroletTahoeLS4WDALLFront and Rear4"
2011ChevroletTahoeLT4WDALLFront and Rear4"
2011GMCYukonDenali Hybrid4WDALLFront and Rear4"
2011GMCYukonHybrid4WDALLFront and Rear4"
2011GMCYukon XL 1500SLT4WDALLFront and Rear4"
2011ChevroletAvalancheALL4WDALLFront and Rear4"
2011GMCYukonSLT4WDALLFront and Rear4"
2011ChevroletTahoeHybrid4WDALLFront and Rear4"
2011ChevroletTahoeLTZ4WDALLFront and Rear4"
2011ChevroletTahoeBase4WDALLFront and Rear4"
2012ChevroletAvalancheLTZ4WDALLFront and Rear4"
2012GMCYukonHybrid4WDALLFront and Rear4"
2012GMCYukonDenali Hybrid4WDALLFront and Rear4"
2012GMCYukon XL 1500SLE4WDALLFront and Rear4"
2012ChevroletTahoeLTZ4WDALLFront and Rear4"
2012GMCYukonSLE4WDALLFront and Rear4"
2012ChevroletTahoeLT4WDALLFront and Rear4"
2012GMCYukonSLT4WDALLFront and Rear4"
2012ChevroletTahoeHybrid4WDALLFront and Rear4"
2012GMCYukon XL 1500SLT4WDALLFront and Rear4"
2012ChevroletTahoeSSVALLALLFront and Rear4"
2012ChevroletAvalancheLT4WDALLFront and Rear4"
2012ChevroletAvalancheLS4WDALLFront and Rear4"
2012ChevroletTahoeLS4WDALLFront and Rear4"
2013ChevroletTahoeLT4WDALLFront and Rear4"
2013ChevroletTahoeLTZ4WDALLFront and Rear4"
2013ChevroletAvalancheBlack Diamond LS4WDALLFront and Rear4"
2013ChevroletTahoeSSVALLALLFront and Rear4"
2013ChevroletAvalancheBlack Diamond LT4WDALLFront and Rear4"
2013GMCYukonDenali Hybrid4WDALLFront and Rear4"
2013ChevroletTahoeHybrid4WDALLFront and Rear4"
2013ChevroletAvalancheBlack Diamond LTZ4WDALLFront and Rear4"
2013GMCYukonHybrid4WDALLFront and Rear4"
2013GMCYukon XL 1500SLT4WDALLFront and Rear4"
2013GMCYukonSLT4WDALLFront and Rear4"
2013GMCYukon XL 1500SLE4WDALLFront and Rear4"
2013GMCYukonSLE4WDALLFront and Rear4"
2013ChevroletTahoeLS4WDALLFront and Rear4"
2014ChevroletTahoeLT4WDALLFront and Rear4"
2014ChevroletTahoeLTZ4WDALLFront and Rear4"
2014GMCYukonSLT4WDALLFront and Rear4"
2014GMCYukonSLE4WDALLFront and Rear4"
2014ChevroletTahoeLS4WDALLFront and Rear4"
2014ChevroletTahoeSSVALLALLFront and Rear4"
2014GMCYukon XL 1500SLE4WDALLFront and Rear4"
2014GMCYukon XL 1500SLT4WDALLFront and Rear4"
2015GMCYukonALL4WDALLFront and Rear4"
2015GMCYukon XLALL4WDALLFront and Rear4"
2015ChevroletTahoeALL4WDALLFront and Rear4"
2015ChevroletSuburbanALL4WDALLFront and Rear4"
2016ChevroletSuburbanLTZ4WDALLFront and Rear4"
2016ChevroletTahoeLT4WDALLFront and Rear4"
2016ChevroletTahoeSSVALLALLFront and Rear4"
2016GMCYukonALL4WDALLFront and Rear4"
2016ChevroletSuburbanLT4WDALLFront and Rear4"
2016ChevroletSuburbanLS4WDALLFront and Rear4"
2016GMCYukon XLALL4WDALLFront and Rear4"
2016ChevroletTahoeLTZ4WDALLFront and Rear4"
2016ChevroletTahoePPV4WDALLFront and Rear4"
2016ChevroletTahoeLS4WDALLFront and Rear4"
2017ChevroletTahoeLT4WDALLFront and Rear4"
2017GMCYukonALL4WDALLFront and Rear4"
2017GMCYukon XLALL4WDALLFront and Rear4"
2017ChevroletSuburbanLS4WDALLFront and Rear4"
2017ChevroletSuburbanPremier4WDALLFront and Rear4"
2017ChevroletTahoeLS4WDALLFront and Rear4"
2017ChevroletTahoePPV4WDALLFront and Rear4"
2017ChevroletTahoeSSVALLALLFront and Rear4"
2017ChevroletSuburbanLT4WDALLFront and Rear4"
2017ChevroletTahoePremier4WDALLFront and Rear4"

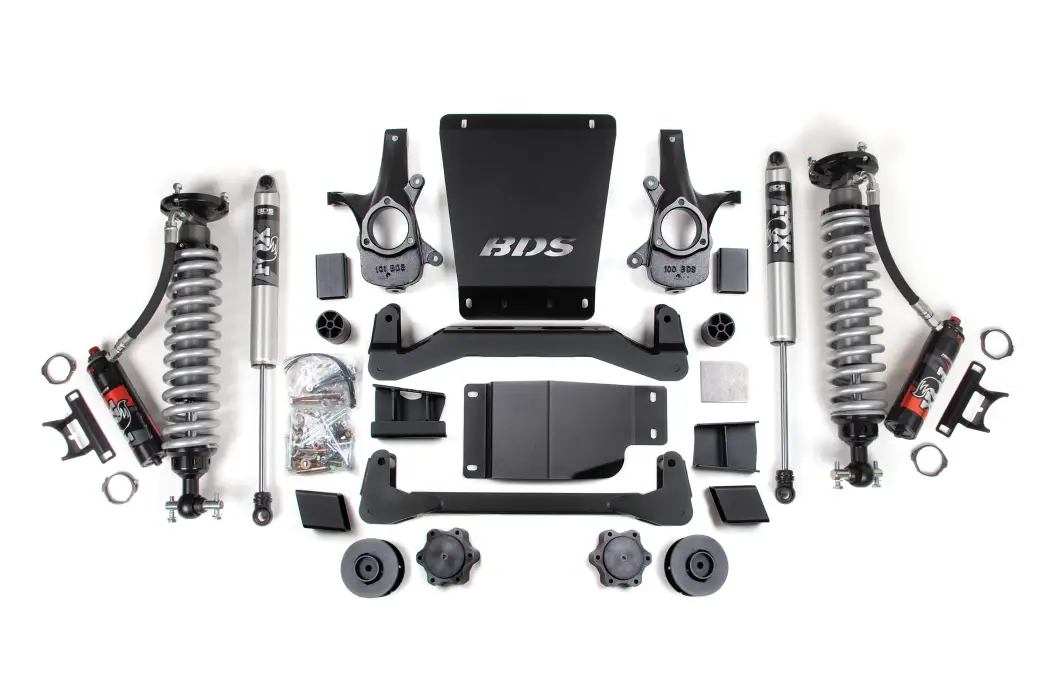

Component List

1 BDS021209 07-14 GM SUV 2in Rear Kit
1 BDS021640 07-13 GM 1500/SUV 4-6in Front Box (1of2)
1 BDS021644 2007-2013 GM 1500/SUV 4-6in Front Box (2of2)
1 BDS121613 Front Skid Plate | Fits BDS 4 or 6 Inch Lift Only | Chevy Silverado and GMC Sierra 1500 (07-13)
2 FOX98224719 FOX 2.0 IFP Shock | Performance Series | 26.85 x 16.75 x 2- EB1/EB1
1 FOX88406533 FOX 2.5 Coil-Over Shocks w/ DSC Reservoir Adjuster | 4 Inch Lift | Performance Elite Series | Chevy Silverado and GMC Sierra 1500 (07-18)

Tires & Wheels

(Trimming may be required)
32 x 11.5 with 17 x 8 and 4.5 in. Backspace
33 x 12.5 with 18 x 9 and 5 in. Backspace
33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H20.0000” x L40.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
