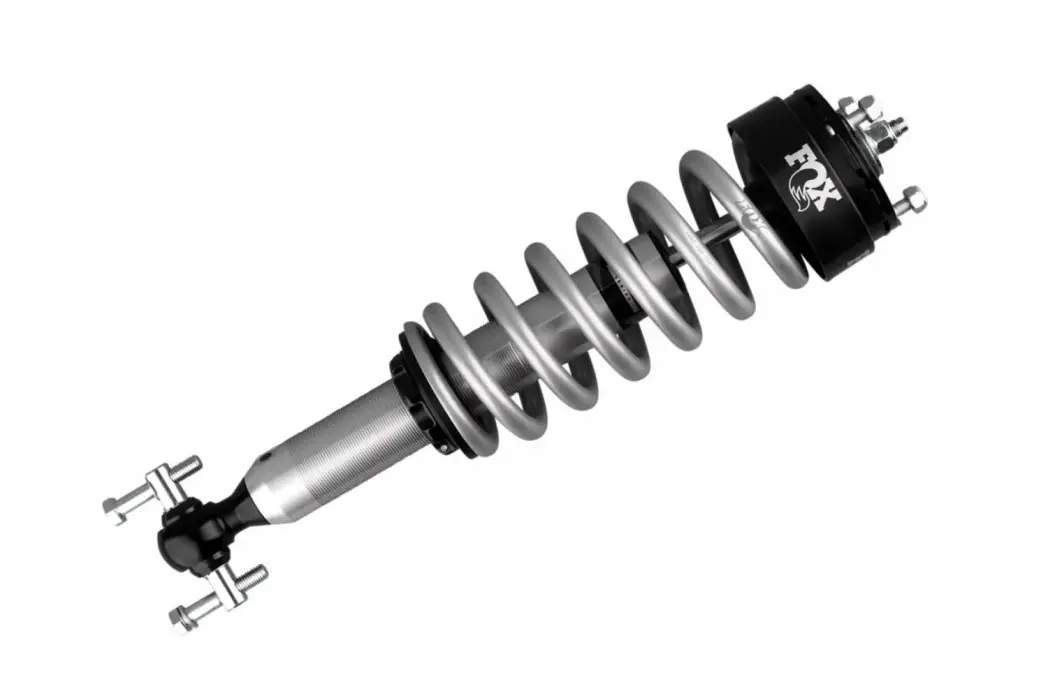

FOX98502133 | BDS Suspension Fox 2.0 IFP Coilover Shock For Ford Ranger | Performance Series | 0-3 Inch Lift
For 2019-2023 Ford Ranger
Description
Upgrade the on-road comfort and off-road control of your 2019-2023 Ford Ranger to FOX Performance Series 2.0 Coil-Over IFP (internal floating piston) shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. FOX shocks bolt on with no modifications and are designed to level your truck front-to-rear. The metal impact-extruded aluminum body increases cooling capacity and resists rust. Vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Features & Benefits
- 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Internal IFP mono-tube reservoir design
Installation
Est. Install Time :
2-3 hrsSpecification
- Compressed Length : 15
- Cylinder Material : Aluminum
- Extended Length : 19.39
- Gas Charged : Yes
- Lower Mount Code : TM
- Lower Mount Type : Bar Pin
- Shaft Diameter : 5_8
- Travel Length : 4.39
- Type : Coil-Over
- Upper Mount Code : OEM
- Upper Mount Type : TM
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2019 | Ford | Ranger | ALL | ALL | ALL | Front | 3" |
| 2020 | Ford | Ranger | ALL | ALL | ALL | Front | 3" |
| 2021 | Ford | Ranger | ALL | ALL | ALL | Front | 3" |
| 2022 | Ford | Ranger | ALL | ALL | ALL | Front | 3" |
| 2023 | Ford | Ranger | XL | ALL | ALL | Front | 3" |
| 2023 | Ford | Ranger | XLT | ALL | GAS | Front | 3" |
| 2023 | Ford | Ranger | Lariat | ALL | ALL | Front | 3" |
Details
- FOX98502133
- FOX98502133
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 20.0 lbs.
- W3.0000” x H3.0000” x L20.0000”
- Free Ground Shipping | Exclusions Apply*
