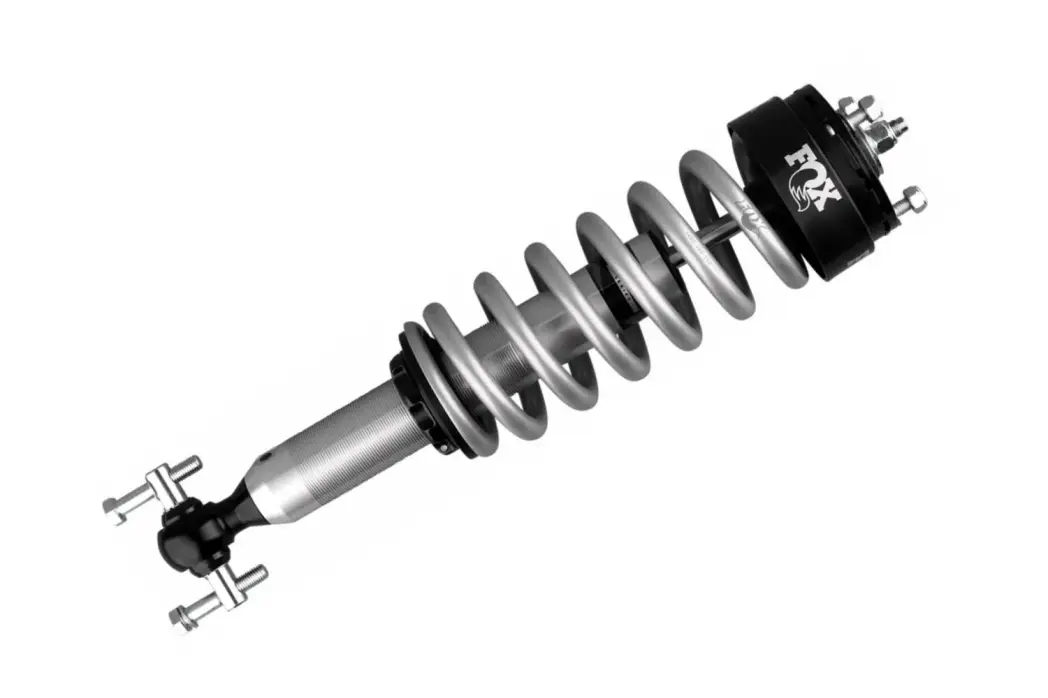

FOX98502134 | BDS Suspension Fox 2.0 IFP Coilover Shock For Chevrolet Silverado / GMC Sierra 1500 | Performance Series | 0-2 Inch Lift

For 2019-2026 Chevrolet Silverado / GMC Sierra 1500

FOX98502134
Pricing: $869.33
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the on-road comfort and off-road control of your 2019-2026 Chevy Silverado or GMC Sierra 1500 to FOX Performance Series 2.0 Coil-Over IFP (internal floating piston) shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. FOX shocks bolt on with no modifications and are designed to level your truck front-to-rear. The metal impact-extruded aluminum body increases cooling capacity and resists rust. Vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

Installation

Est. Install Time :

2-3 hrs

Specification

  • Compressed Length : 16.4
  • Cylinder Material : Aluminum
  • Extended Length : 20.99
  • Gas Charged : Yes
  • Lower Mount Code : N/A
  • Lower Mount Type : Bar Pin
  • Shaft Diameter : 5_8
  • Travel Length : 4.59
  • Type : Coil-Over
  • Upper Mount Code : N/A
  • Upper Mount Type : TM

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019ChevroletSilverado 1500LTALLALLFront2"
2019ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2019ChevroletSilverado 1500WTALLALLFront2"
2019GMCSierra 1500SLEALLALLFront2"
2019GMCSierra 1500BaseALLALLFront2"
2019GMCSierra 1500AT4ALLALLFront0"
2019GMCSierra 1500SLTALLALLFront2"
2019ChevroletSilverado 1500CustomALLALLFront2"
2019ChevroletSilverado 1500LTZALLALLFront2"
2019ChevroletSilverado 1500RSTALLALLFront2"
2019GMCSierra 1500ElevationALLALLFront2"
2019ChevroletSilverado 1500LT Trail BossALLALLFront0"
2019ChevroletSilverado 1500SSVALLALLFront2"
2019GMCSierra 1500DenaliALLALLFront2"
2019ChevroletSilverado 1500High CountryALLALLFront2"
2020GMCSierra 1500AT4ALLALLFront0"
2020GMCSierra 1500SLEALLALLFront2"
2020ChevroletSilverado 1500LTALLALLFront2"
2020GMCSierra 1500DenaliALLALLFront2"
2020ChevroletSilverado 1500LTZALLALLFront2"
2020ChevroletSilverado 1500LT Trail BossALLALLFront0"
2020GMCSierra 1500ElevationALLALLFront2"
2020ChevroletSilverado 1500CustomALLALLFront2"
2020ChevroletSilverado 1500RSTALLALLFront2"
2020ChevroletSilverado 1500High CountryALLALLFront2"
2020GMCSierra 1500BaseALLALLFront2"
2020ChevroletSilverado 1500SSVALLALLFront2"
2020ChevroletSilverado 1500WTALLALLFront2"
2020ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2020GMCSierra 1500SLTALLALLFront2"
2021GMCSierra 1500DenaliALLALLFront2"
2021GMCSierra 1500BaseALLALLFront2"
2021ChevroletSilverado 1500LTALLALLFront2"
2021ChevroletSilverado 1500SSVALLALLFront2"
2021ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2021ChevroletSilverado 1500WTALLALLFront2"
2021GMCSierra 1500SLEALLALLFront2"
2021GMCSierra 1500SLTALLALLFront2"
2021GMCSierra 1500ElevationALLALLFront2"
2021ChevroletSilverado 1500LTZALLALLFront2"
2021ChevroletSilverado 1500CustomALLALLFront2"
2021GMCSierra 1500AT4ALLALLFront0"
2021ChevroletSilverado 1500High CountryALLALLFront2"
2021ChevroletSilverado 1500RSTALLALLFront2"
2021ChevroletSilverado 1500LT Trail BossALLALLFront0"
2022GMCSierra 1500 LimitedProALLALLFront2"
2022GMCSierra 1500AT4ALLALLFront0"
2022GMCSierra 1500SLEALLALLFront2"
2022ChevroletSilverado 1500LTZALLALLFront2"
2022GMCSierra 1500 LimitedSLTALLALLFront2"
2022ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2022ChevroletSilverado 1500LTALLALLFront2"
2022GMCSierra 1500 LimitedElevationALLALLFront2"
2022GMCSierra 1500Denali UltimateALLALLFront2"
2022ChevroletSilverado 1500CustomALLALLFront2"
2022GMCSierra 1500SLTALLALLFront2"
2022ChevroletSilverado 1500RSTALLALLFront2"
2022GMCSierra 1500 LimitedDenaliALLALLFront2"
2022GMCSierra 1500DenaliALLALLFront2"
2022ChevroletSilverado 1500WTALLALLFront2"
2022ChevroletSilverado 1500High CountryALLALLFront2"
2022GMCSierra 1500ElevationALLALLFront2"
2022GMCSierra 1500ProALLALLFront2"
2022GMCSierra 1500 LimitedSLEALLALLFront2"
2022ChevroletSilverado 1500LT Trail BossALLALLFront0"
2022GMCSierra 1500 LimitedAT4ALLALLFront0"
2023ChevroletSilverado 1500LTALLALLFront2"
2023ChevroletSilverado 1500LT Trail BossALLALLFront0"
2023ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2023ChevroletSilverado 1500PPVALLALLFront2"
2023GMCSierra 1500DenaliALLALLFront2"
2023ChevroletSilverado 1500High CountryALLALLFront2"
2023GMCSierra 1500SLTALLALLFront2"
2023ChevroletSilverado 1500LTZALLALLFront2"
2023GMCSierra 1500ProALLALLFront2"
2023GMCSierra 1500AT4ALLALLFront0"
2023ChevroletSilverado 1500WTALLALLFront2"
2023ChevroletSilverado 1500CustomALLALLFront2"
2023ChevroletSilverado 1500RSTALLALLFront2"
2023GMCSierra 1500ElevationALLALLFront2"
2023GMCSierra 1500SLEALLALLFront2"
2023GMCSierra 1500Denali UltimateALLALLFront2"
2024GMCSierra 1500AT4ALLALLFront0"
2024ChevroletSilverado 1500LTZALLALLFront2"
2024ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2024ChevroletSilverado 1500WTALLALLFront2"
2024GMCSierra 1500SLEALLALLFront2"
2024ChevroletSilverado 1500RSTALLALLFront2"
2024ChevroletSilverado 1500LTALLALLFront2"
2024ChevroletSilverado 1500CustomALLALLFront2"
2024GMCSierra 1500SLTALLALLFront2"
2024GMCSierra 1500ProALLALLFront2"
2024ChevroletSilverado 1500PPVALLALLFront2"
2024GMCSierra 1500ElevationALLALLFront2"
2024ChevroletSilverado 1500LT Trail BossALLALLFront0"
2025ChevroletSilverado 1500Custom4WDALLN/A
2025ChevroletSilverado 1500LT Trail BossALLALLFront0"
2025GMCSierra 1500AT4ALLALLFront0"
2025GMCSierra 1500AT4XALLALLN/A
2025ChevroletSilverado 1500RST4WDALLN/A
2025GMCSierra 1500SLT4WDALLN/A
2025GMCSierra 1500Pro4WDALLN/A
2025ChevroletSilverado 1500LT4WDALLN/A
2025ChevroletSilverado 1500LTZ4WDALLN/A
2025GMCSierra 1500SLE4WDALLN/A
2025GMCSierra 1500Elevation4WDALLN/A
2025ChevroletSilverado 1500WT4WDALLN/A
2025ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2026GMCSierra 1500AT4ALLALLFront0"
2026ChevroletSilverado 1500LT Trail BossALLALLFront0"
2026ChevroletSilverado 1500Custom Trail BossALLALLFront0"
