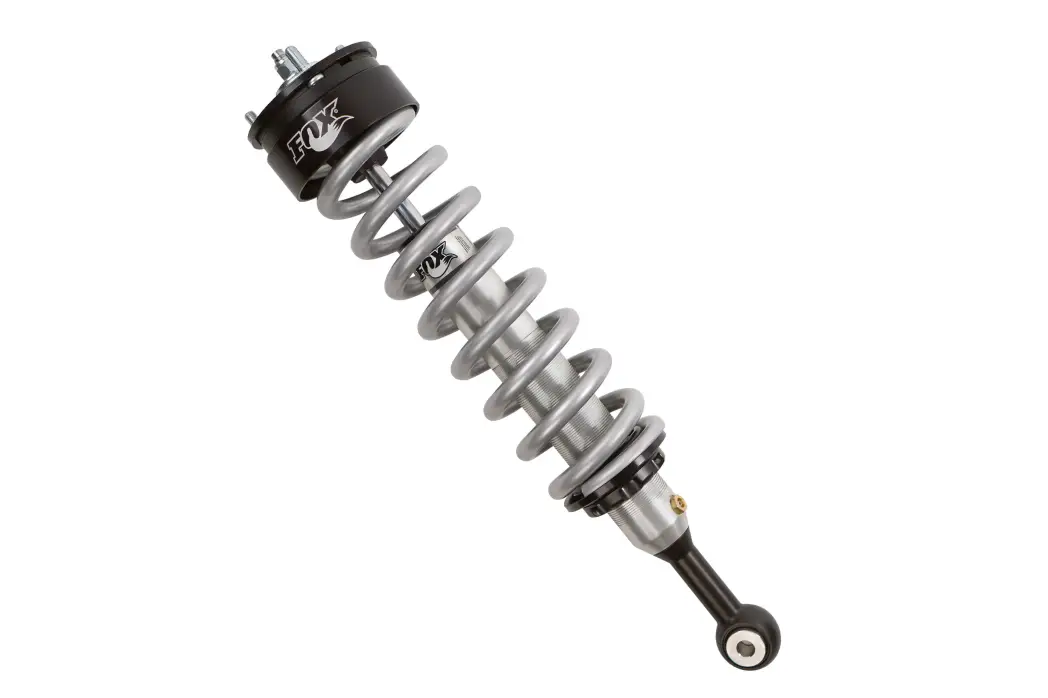

FOX98502018 | BDS Suspension Fox 2.0 IFP Coilover Shock For Chevrolet Silverado / GMC Sierra 1500 | Performance Series | 0-2 Inch Lift

For 2007-2018 Chevrolet Silverado / GMC Sierra 1500

FOX98502018
Pricing: $869.33
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the on-road comfort and off-road control of your 2007-2018 Chevy Silverado or GMC Sierra 1500 to FOX Performance Series 2.0 Coilover IFP (internal floating piston). The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration, allowing maximum performance from the factory-tuned, precision valving.

Locking spring preload rings allow easy ride height and preload adjustment while retaining a top-quality racing coil, selected to deliver the optimal spring rate. FOX shocks bolt on with no modifications and are designed to level your truck front-to-rear. The metal impact-extruded aluminum body increases cooling capacity and resists rust. Vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

Important Notes

  1. Sold individually - order QTY 2 for a pair.

Installation

Est. Install Time :

1-2 hrs

Difficulty Level :

Moderately Easy

Specification

  • Adjustable Damping : No
  • Compressed Length : 14.89
  • Extended Length : 19.21
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lift Height : 0-3.5"
  • Lower Mount Code : Bar Pin
  • Lower Mount Type : Bar Pin
  • Position : Front
  • Shaft Diameter : 5/8"
  • Travel Length : 4.32
  • Type : Coil-Over
  • Upper Mount Code : Special
  • Upper Mount Type : OEM

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007GMCSierra 1500ALLALLALLFront2"
2007ChevroletSilverado 1500ALLALLALLFront2"
2007ChevroletAvalancheALLALLALLFront2"
2007ChevroletSuburban 1500ALLALLALLFront2"
2007GMCYukonALLALLALLFront2"
2007GMCYukon XL 1500ALLALLALLFront2"
2007ChevroletTahoeALLALLALLFront2"
2008ChevroletAvalancheALLALLALLFront2"
2008GMCYukon XL 1500ALLALLALLFront2"
2008ChevroletTahoeALLALLALLFront2"
2008GMCYukonALLALLALLFront2"
2008ChevroletSuburban 1500ALLALLALLFront2"
2008GMCSierra 1500ALLALLALLFront2"
2008ChevroletSilverado 1500ALLALLALLFront2"
2009GMCYukonALLALLALLFront2"
2009GMCYukon XL 1500ALLALLALLFront2"
2009ChevroletTahoeALLALLALLFront2"
2009ChevroletAvalancheALLALLALLFront2"
2009ChevroletSuburban 1500ALLALLALLFront2"
2009ChevroletSilverado 1500ALLALLALLFront2"
2009GMCSierra 1500ALLALLALLFront2"
2010GMCSierra 1500ALLALLALLFront2"
2010GMCYukonALLALLALLFront2"
2010ChevroletSilverado 1500ALLALLALLFront2"
2010ChevroletSuburban 1500ALLALLALLFront2"
2010ChevroletTahoeALLALLALLFront2"
2010GMCYukon XL 1500ALLALLALLFront2"
2010ChevroletAvalancheALLALLALLFront2"
2011ChevroletSilverado 1500ALLALLALLFront2"
2011ChevroletAvalancheALLALLALLFront2"
2011ChevroletTahoeALLALLALLFront2"
2011ChevroletSuburban 1500ALLALLALLFront2"
2011GMCSierra 1500ALLALLALLFront2"
2011GMCYukonALLALLALLFront2"
2011GMCYukon XL 1500ALLALLALLFront2"
2012ChevroletTahoeALLALLALLFront2"
2012GMCSierra 1500ALLALLALLFront2"
2012ChevroletAvalancheALLALLALLFront2"
2012ChevroletSilverado 1500ALLALLALLFront2"
2012ChevroletSuburban 1500ALLALLALLFront2"
2012GMCYukon XL 1500ALLALLALLFront2"
2012GMCYukonALLALLALLFront2"
2013ChevroletSuburban 1500ALLALLALLFront2"
2013ChevroletTahoeALLALLALLFront2"
2013GMCSierra 1500ALLALLALLFront2"
2013ChevroletSilverado 1500ALLALLALLFront2"
2013ChevroletAvalancheALLALLALLFront2"
2013GMCYukon XL 1500ALLALLALLFront2"
2013GMCYukonALLALLALLFront2"
2014GMCSierra 1500ALLALLALLFront2"
2014ChevroletTahoeALLALLALLFront1"
2014ChevroletTahoeALLALLALLFront2"
2014GMCSierra 1500ALLALLALLFront1"
2014ChevroletSilverado 1500ALLALLALLFront2"
2014ChevroletSilverado 1500ALLALLALLFront1"
2014GMCYukonALLALLALLFront2"
2014GMCYukonALLALLALLFront1"
2014ChevroletSuburban 1500ALLALLALLFront1"
2014GMCYukon XL 1500ALLALLALLFront1"
2015ChevroletTahoeALLALLALLFront1"
2015GMCYukonALLALLALLFront2"
2015ChevroletTahoeALLALLALLFront2"
2015ChevroletSilverado 1500ALLALLALLFront2"
2015GMCSierra 1500ALLALLALLFront1"
2015ChevroletSilverado 1500ALLALLALLFront1"
2015GMCYukonALLALLALLFront1"
2015ChevroletSuburbanALLALLALLFront1"
2015GMCSierra 1500ALLALLALLFront2"
2015GMCYukon XLALLALLALLFront1"
2016ChevroletTahoeALLALLALLFront2"
2016ChevroletSilverado 1500ALLALLALLFront2"
2016GMCSierra 1500ALLALLALLFront1"
2016GMCYukon XLALLALLALLFront1"
2016ChevroletTahoeALLALLALLFront1"
2016ChevroletSuburbanALLALLALLFront1"
2016ChevroletSilverado 1500ALLALLALLFront1"
2016GMCYukonALLALLALLFront1"
2016GMCYukonALLALLALLFront2"
2017GMCSierra 1500ALLALLALLFront2"
2017ChevroletTahoeALLALLALLFront1"
2017GMCYukon XLALLALLALLFront1"
2017ChevroletSuburbanALLALLALLFront1"
2017GMCSierra 1500ALLALLALLFront1"
2017ChevroletSilverado 1500ALLALLALLFront1"
2017ChevroletSilverado 1500ALLALLALLFront2"
2017GMCYukonALLALLALLFront1"
2018GMCSierra 1500ALLALLALLFront1"
2018ChevroletSilverado 1500ALLALLALLFront2"
2018GMCYukonALLALLALLFront1"
2018GMCSierra 1500ALLALLALLFront2"
2018GMCYukon XLALLALLALLFront1"
2018ChevroletSilverado 1500ALLALLALLFront1"
2018ChevroletTahoeALLALLALLFront1"
2018ChevroletSuburbanALLALLALLFront1"
2019ChevroletSuburbanALLALLALLFront1"
2019ChevroletSilverado 1500 LDALLALLALLFront1"
2019ChevroletTahoeALLALLALLFront1"
2019GMCYukon XLALLALLALLFront1"
2019GMCYukonALLALLALLFront1"
2019GMCSierra 1500 LimitedALLALLALLFront1"
2020ChevroletTahoeALLALLALLFront1"
2020GMCYukonALLALLALLFront1"
2020ChevroletSuburbanALLALLALLFront1"
2020GMCYukon XLALLALLALLFront1"

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 21.0 lbs.
  • W8.0000” x H8.0000” x L20.0000”
  • Free Ground Shipping | Exclusions Apply*
