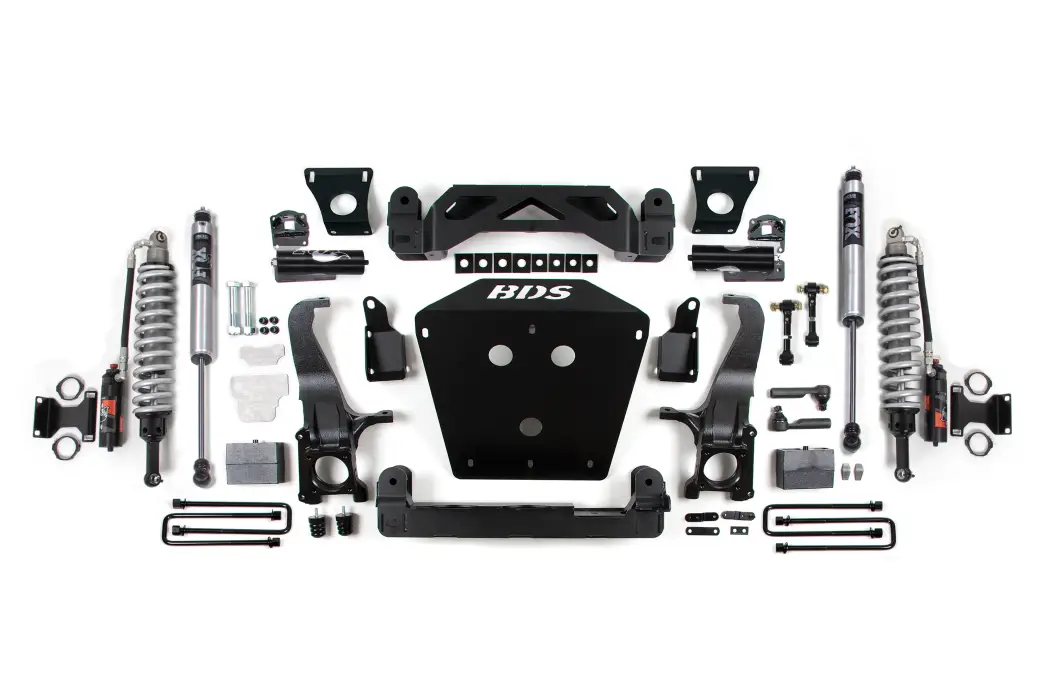

BDS818FPS | BDS Suspension 7 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Toyota Tundra 2/4WD | Fox 2.0 Performance Series Shocks

• FOX 2.5 Performance Elite series adjustable coil overs for improved ride quality, performance, and capability.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.
• HD skid plate system improved offroad protection.
• Multipoint differential relocation brackets to secure the front axle and improve CV angles.
• FOX performance series IFP gas rear shocks to improved ride and offroad performance.
• Factory Protection Plus drivetrain warranty included

• 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 6.25 in. Backspace
• 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. Requires frame bracket modification and welding.
2. No strut disassembly required.
3. Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
4. Models with two piece rear drive line would require rear drive shaft modification.
5. Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
6. Will NOT work on TRD Pro (Bilstein and Fox Piggyback Strut) models.
