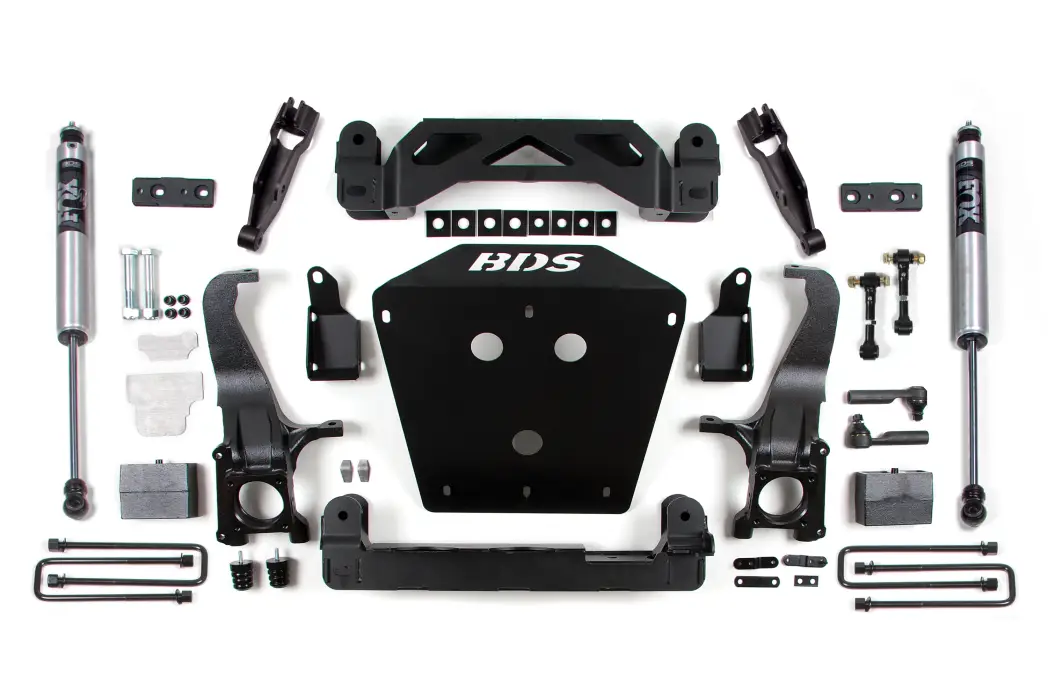

BDS818FS | BDS Suspension 7 Inch Lift Kit For Toyota Tundra 2/4WD | Fox 2.0 Performance Series Shocks

• High clearance design maximizes ground clearance.
• Robust steering knuckles maintain ESC system compliance.
• Full width belly skidplate for added protection.
• Allows fitment of up to 37" tires with 7" systems.
• Choice of FOX 2.0 Performance or NX2 Nitro shocks for improved capability.

• 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
• 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

High Clearance Crossmembers

These specially designed 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components.

Heavy Duty Steering Knuckles

Rear Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. Requires frame bracket modification and welding.
2. No strut dissassembly required.
3. Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
4. If 2-piece rear drive shaft on 4wd you will need carrier bearing drop kit. If 2-piece rear drive shaft on 2wd drive shaft will need lengthened before carrier bearing kit installed.
5. Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
6. Will NOT work on TRD Pro (Bilstein anf Fox Piggback Strut) models.
