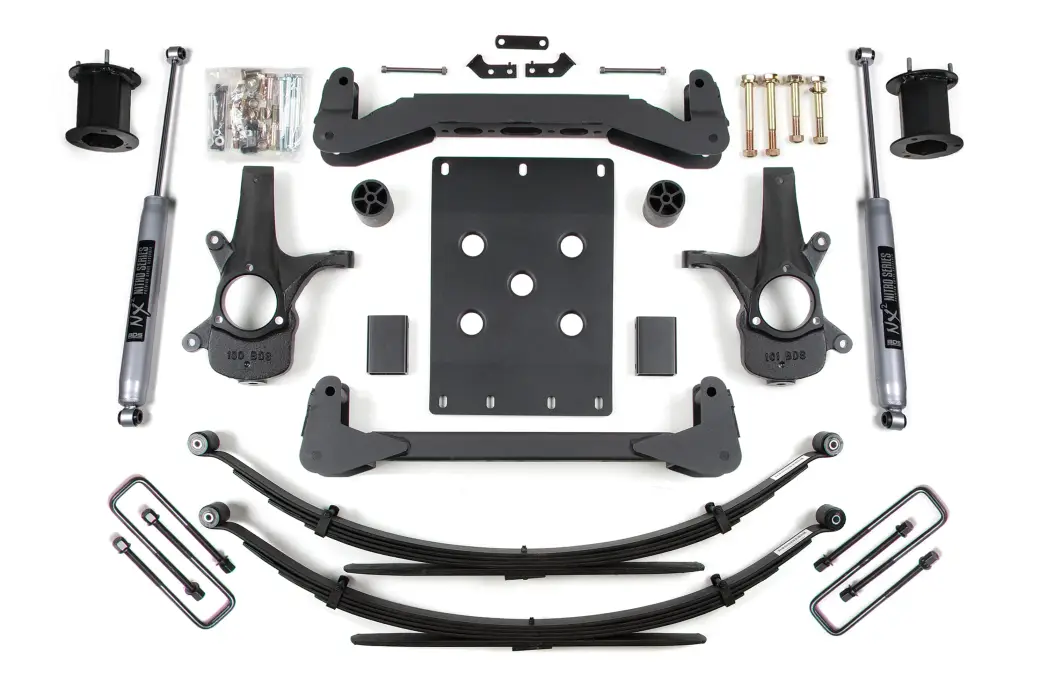

BDS798H | BDS Suspension 6 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 2WD | Rear Leaf Springs | NX2 Nitro Series Shocks

• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• FOX performance series IFP gas rear shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included

• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

Block Kit

• Mounts between factory leaf springs and axle to provide lift
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Rear Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. This system will not fit 2007 classic models
2. Installation of rear leaf springs requires removal of the fuel tank
3. Requires frame bracket modification
4. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
5. Traction bars will not fit regular cab short box models.
6. Will not fit two-mode hybrid models with electronic power steering.
7. Stock 20" wheels can be re-installed only with factory tire size. Factory 17 and 18's cannot be re-installed.
