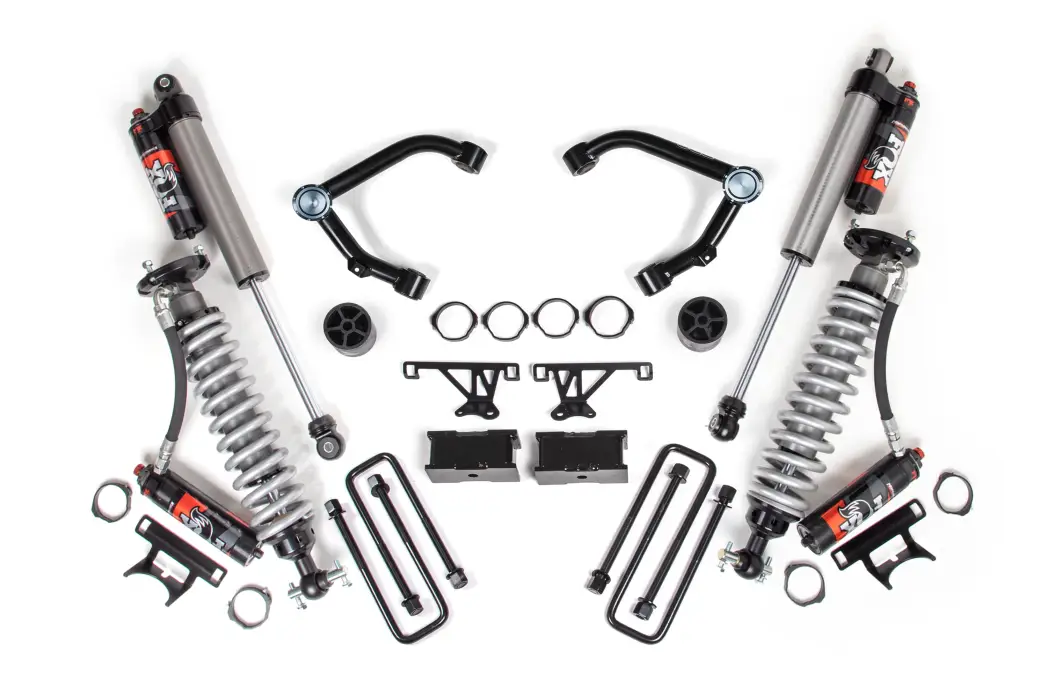

BDS757PES | BDS Suspension 3 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Chevrolet Silverado / GMC Sierra 1500 4WD | Cast Steel Factory Control Arm | Fox 2.5 Performance Elite Shocks

• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5 in. Backspace
• 285 / 70 with 20 x 9 and 4.5 in. Backspace

Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. *IMPORTANT*: Cast aluminum lower control arm required for '16-18 model year trucks for CV boot clearance.
             - OE aluminum lower control arm reference numbers = 22853473 and 22853474, or equivalents.
             - Cast aluminum and stamped steel lower control arms have the same ball joint taper.
             - Cast steel LCAs have a different ball joint taper and would not be usable for ’16-'18 model years.
2. *IMPORTANT*: GM is producing several knuckle/control arm configurations in 2007-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
3. 33x12.50 tires will require weld on steering stop, also it requires inner fender well modification to clear this width tire.
4. Factory wheels cannot be reinstalled due to upper control arm interference.
5. Will Not fit MagneRide magnetic ride control equipped models.
6. This system will not fit 2007 classic models
