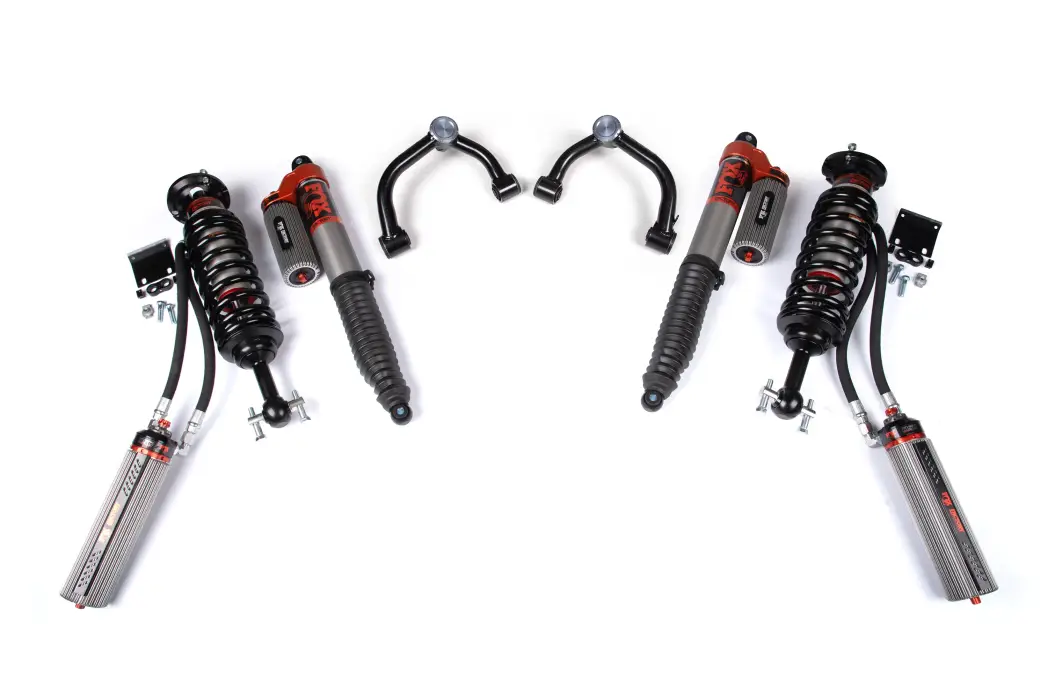

BDS1912FRS | BDS Suspension 2.5 Inch Leveling Kit For Ford F-150 4WD | Fox 3.0 Coil-Over Factory Race Series, Rear Fox 3.0 Factory Race Series Shocks, Truck Without Adaptive Headlight UCA Sensor

FOX Factory Race Series

FOX Factory Race Series 3.0 Internal Bypass shocks for the Ford Bronco deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Finned external reservoirs and aluminum shock bodies keep shock fluid temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter bodies. The DSC adjuster allows you to dial in your Bronco for load, environment, and driving style.

FOX Internal Bypass shocks deliver the support and confidence you need while driving high-speed through rugged terrain. Experience race-bred performance next time you leave the pavement.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Adaptive Headlights

This is a factory option where the headlamp beams move in the same direction as the steering wheel, illuminating the path ahead. If you are unsure if equipped, look at your upper control arms for a sensor mounted to them.

Important Notes

1. Model with Adaptive headlights option only have a driver's side mounted ride height sensor. Adaptive headlight kit will not fit models with sensors on both front arms.
2. Will NOT work with trucks that have CCD (Continuous Controlled Damping)
3. Will NOT work with Diesel models.
4. Not compatible on trucks with the On-Board Scales option.
5. Will NOT work with the Raptor model.
6. Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.

Installation

Difficulty Level :

Moderate

Specialty Tools Needed :

Ball Joint Separation Tool

Specification
