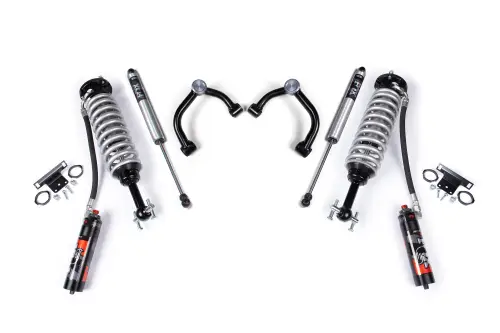

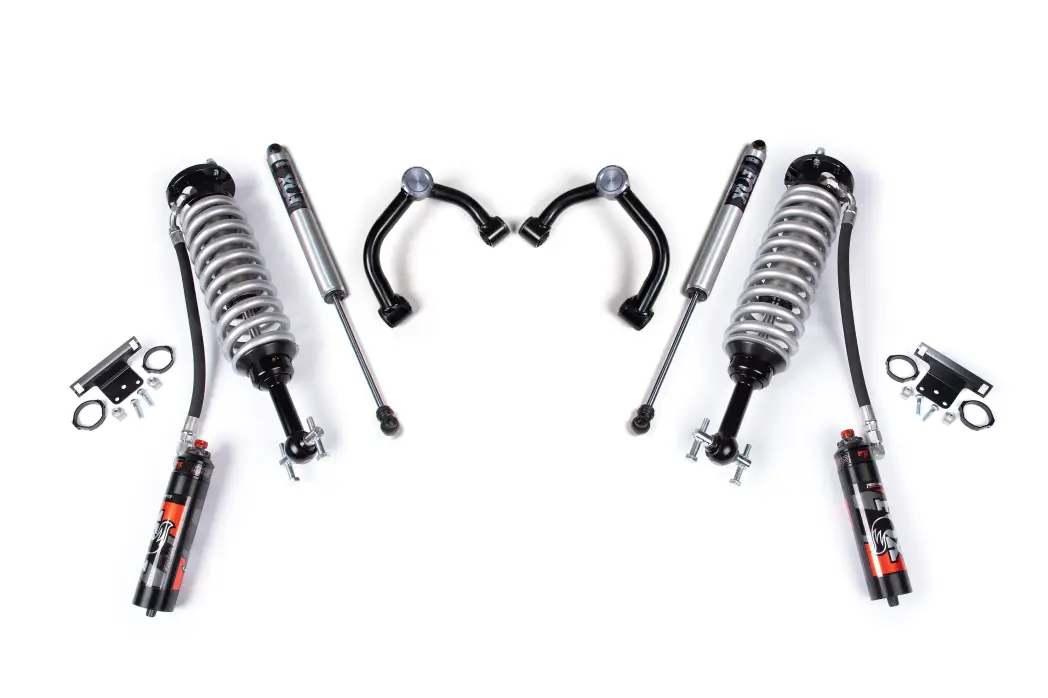

BDS1913FPE | BDS Suspension 2 Inch Leveling Kit For Ford F-150 4WD | Fox 2.5 Coil-Over Performance Series, Rear Fox 2.0 Performance Series Shocks, Truck With Adaptive Headlight UCA Sensor

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5"" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Important Notes

1. Models with Adaptive headlights option only have a driver's side mounted ride height sensor. Adaptive headlight kit will not fit models with sensors on both front arms.
2. Will NOT work with trucks that have CCD (Continuous Controlled Damping)
3. Will NOT work with Diesel models.
4. Not compatible on trucks with the On-Board Scales option
5. Shock length too short for Tremor
6. Excludes Raptor
7. 35" x 12.5" with 4.75" Wheel Backspacing Recommended
8. Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.

Installation

Difficulty Level :

Moderate

Specialty Tools Needed :

Ball Joint Separation Tool

Specification
