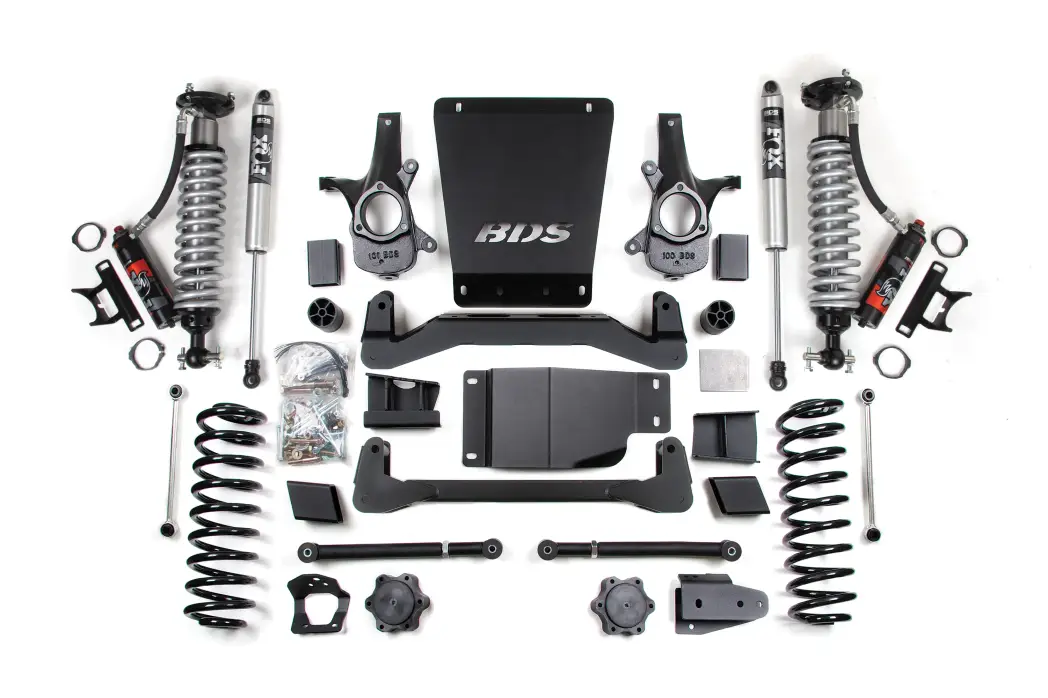

BDS178PSS | BDS Suspension 6 Inch Lift Kit For Chevrolet Tahoe & Avalanche / GMC Yukon & Yukon XL 1500 | Fox 2.5 Performance Elite Coil-Over

For 2007-2012 Chevrolet Avalanche / 2007-2014 Chevrolet Tahoe / 2007-2014 GMC Yukon / 2007-2014 GMC Yukon XL 1500

BDS178PSS
Availability:
Pricing: $6,819.48
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

Features & Benefits

  • Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
  • The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
  • High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas rear shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 34 x 12.5 with 17 x 8 and 4.5 in. Backspace
  • 34 x 12.5 with 18 x 9 and 5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 5.75 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.





Important Notes

  1. Will not work with auto-ride equipped vehicles. Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
  2. Minor frame bracket modification and welding are required.
  3. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
  4. Add BDS121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment

Specification

  • Front Lift Method : Cross Member & Coil-Over
  • Front Lift Height : 6"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 6"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007GMCYukonSLE4WDALLFront and Rear6"
2007ChevroletTahoeLTZ4WDALLFront and Rear6"
2007GMCYukon XL 1500SLE4WDALLFront and Rear6"
2007GMCYukon XL 1500SLT4WDALLFront and Rear6"
2007GMCYukonSLT4WDALLFront and Rear6"
2007ChevroletTahoeLS4WDALLFront and Rear6"
2007ChevroletAvalancheALL4WDALLFront and Rear6"
2007ChevroletTahoeLT4WDALLFront and Rear6"
2008GMCYukonHybrid4WDFULL HYBRID EV-GAS (FHEV)Front and Rear6"
2008ChevroletTahoeLT4WDGASFront and Rear6"
2008ChevroletTahoeHybrid4WDFULL HYBRID EV-GAS (FHEV)Front and Rear6"
2008ChevroletTahoeLTZ4WDGASFront and Rear6"
2008GMCYukon XL 1500SLT4WDALLFront and Rear6"
2008ChevroletTahoeLS4WDFLEXFront and Rear6"
2008GMCYukon XL 1500SLE4WDALLFront and Rear6"
2008GMCYukonSLT4WDFLEXFront and Rear6"
2008GMCYukonSLT4WDGASFront and Rear6"
2008ChevroletTahoeLTZ4WDFLEXFront and Rear6"
2008GMCYukonSLE4WDGASFront and Rear6"
2008ChevroletTahoeLT4WDFLEXFront and Rear6"
2008ChevroletAvalancheALL4WDALLFront and Rear6"
2008GMCYukonSLE4WDFLEXFront and Rear6"
2008ChevroletTahoeLS4WDGASFront and Rear6"
2009GMCYukonSLT4WDGASFront and Rear6"
2009ChevroletTahoeLTZ4WDGASFront and Rear6"
2009GMCYukonSLT4WDFLEXFront and Rear6"
2009ChevroletTahoeLT4WDFLEXFront and Rear6"
2009ChevroletTahoeLS4WDGASFront and Rear6"
2009GMCYukonSLE4WDFLEXFront and Rear6"
2009ChevroletTahoeLTZ4WDFLEXFront and Rear6"
2009ChevroletTahoeLT4WDGASFront and Rear6"
2009ChevroletTahoeHybrid4WDFULL HYBRID EV-GAS (FHEV)Front and Rear6"
2009GMCYukonHybrid4WDFULL HYBRID EV-GAS (FHEV)Front and Rear6"
2009GMCYukonSLE4WDGASFront and Rear6"
2009ChevroletAvalancheALL4WDALLFront and Rear6"
2009ChevroletTahoeLS4WDFLEXFront and Rear6"
2009GMCYukon XL 1500SLT4WDALLFront and Rear6"
2009GMCYukon XL 1500SLE4WDALLFront and Rear6"
2010GMCYukonSLE4WDFLEXFront and Rear6"
2010ChevroletTahoeLS4WDFLEXFront and Rear6"
2010GMCYukon XL 1500SLT4WDALLFront and Rear6"
2010GMCYukon XL 1500SLE4WDALLFront and Rear6"
2010GMCYukonDenali Hybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2010ChevroletTahoeZ714WDFLEXFront and Rear6"
2010ChevroletTahoeHybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2010GMCYukonHybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2010GMCYukonSLT4WDFLEXFront and Rear6"
2010ChevroletTahoeLTZ4WDFLEXFront and Rear6"
2010ChevroletAvalancheALL4WDALLFront and Rear6"
2010ChevroletTahoeLT4WDFLEXFront and Rear6"
2011ChevroletAvalancheALL4WDALLFront and Rear6"
2011GMCYukon XL 1500SLE4WDALLFront and Rear6"
2011ChevroletTahoeHybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2011ChevroletTahoeLT4WDFLEXFront and Rear6"
2011ChevroletTahoeLS4WDFLEXFront and Rear6"
2011GMCYukonHybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2011GMCYukonSLE4WDFLEXFront and Rear6"
2011ChevroletTahoeBase4WDGASFront and Rear6"
2011GMCYukon XL 1500SLT4WDALLFront and Rear6"
2011GMCYukonSLT4WDFLEXFront and Rear6"
2011ChevroletTahoeLTZ4WDFLEXFront and Rear6"
2011ChevroletTahoeBase4WDFLEXFront and Rear6"
2011GMCYukonDenali Hybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2012GMCYukon XL 1500SLE4WDALLFront and Rear6"
2012GMCYukonSLE4WDFLEXFront and Rear6"
2012ChevroletTahoeSSV4WDFLEXFront and Rear6"
2012ChevroletAvalancheLTZ4WDALLFront and Rear6"
2012GMCYukonDenali Hybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2012ChevroletAvalancheLT4WDALLFront and Rear6"
2012GMCYukonSLT4WDFLEXFront and Rear6"
2012GMCYukonHybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2012GMCYukon XL 1500SLT4WDALLFront and Rear6"
2012ChevroletAvalancheLS4WDALLFront and Rear6"
2012ChevroletTahoeLT4WDFLEXFront and Rear6"
2012ChevroletTahoeLTZ4WDFLEXFront and Rear6"
2012ChevroletTahoeLS4WDFLEXFront and Rear6"
2012ChevroletTahoeHybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2013GMCYukonHybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2013ChevroletAvalancheBlack Diamond LTZ4WDALLFront and Rear6"
2013ChevroletTahoeSSV4WDFLEXFront and Rear6"
2013GMCYukon XL 1500SLT4WDALLFront and Rear6"
2013ChevroletTahoeHybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2013ChevroletTahoeLT4WDFLEXFront and Rear6"
2013ChevroletAvalancheBlack Diamond LT4WDALLFront and Rear6"
2013GMCYukonDenali Hybrid4WDFULL HYBRID EV-FLEX (FHEV)Front and Rear6"
2013ChevroletTahoeLTZ4WDFLEXFront and Rear6"
2013GMCYukonSLT4WDFLEXFront and Rear6"
2013ChevroletTahoeLS4WDFLEXFront and Rear6"
2013GMCYukon XL 1500SLE4WDALLFront and Rear6"
2013ChevroletAvalancheBlack Diamond LS4WDALLFront and Rear6"
2013GMCYukonSLE4WDFLEXFront and Rear6"
2013ChevroletTahoeLT4WDGASFront and Rear6"
2014ChevroletTahoeSSV4WDFLEXFront and Rear6"
2014ChevroletTahoeLT4WDALLFront and Rear6"
2014GMCYukon XL 1500SLT4WDALLFront and Rear6"
2014GMCYukonSLT4WDALLFront and Rear6"
2014GMCYukon XL 1500SLE4WDALLFront and Rear6"
2014ChevroletTahoeLS4WDFLEXFront and Rear6"
2014GMCYukonSLE4WDALLFront and Rear6"
2014ChevroletTahoeLTZ4WDFLEXFront and Rear6"

Component List

1 BDS021609 07 GM Tahoe/Yukon Rear Box Kit
1 BDS021640 07-13 GM 1500/SUV 4-6in Front Box (1of2)
1 BDS021644 2007-2013 GM 1500/SUV 4-6in Front Box (2of2)
1 BDS121613 Front Skid Plate | Fits BDS 4 or 6 Inch Lift Only | Chevy Silverado and GMC Sierra 1500 (07-13)
2 FOX98224759 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
1 FOX88406534 FOX 2.5 Coil-Over Shocks w/ DSC Reservoir Adjuster | 6 Inch Lift | Performance Elite Series | Chevy Silverado and GMC Sierra 1500 (07-18)

Tires & Wheels

(Trimming may be required)

34 x 12.5 with 17 x 8 and 4.5 in. Backspace
34 x 12.5 with 18 x 9 and 5 in. Backspace
33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
