33370 | Rough Country 4 Inch Lift Kit For Ram 1500 (2012-2018) / 1500 Classic (2019-2023) 4WD | No Strut, V2 Monotube Shocks

4 Inch Lift Kit For Ram 1500 (2012-2018) / 1500 Classic (2019-2023) 4WD | No Strut, V2 Monotube Shocks | NOT Fit AWD, Factory Air, 18" Or Smaller Wheels Models

33370
Pricing: $1,885.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Give your RAM 1500 the perfect blend of performance, protection, and style with Rough Country's 4-inch Suspension Lift. Designed to offer an affordable way to maximize off-road performance and run up to 35-inch tires, these kits offer high-quality, heavy-duty equipment for new model RAM 1500’s. Utilizing heavy-duty, laser-cut, steel equipment engineered by Rough Country, these 4-inch Suspension Lifts are complete kits that include everything needed for outstanding off-road performance.

High-clearance front and rear cross-members provide enough room for off-road climbs and runs. A heavy-duty skid plate shields the vehicle’s differential, protecting you from hazardous terrain. A durable set of driver and passenger-side lifted cast knuckles are also included, helping to promote proper geometry once the vehicle is lifted. For true trailblazers, this kit also ships with a set of rear N3 Nitrogen-charged shock absorbers - valved specifically for a blend of on and off-road performance. Includes Rough Country's Lifetime Replacement Guarantee!

FEATURES

  • Maintains factory ride quality.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.

OPTIONAL N3 LOADED STRUTS

  • Includes pre-loaded coil
  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Will fit Eco Diesel engine models.
  • Kit is not recommended for AWD models.
  • Does NOT fit models with factory air ride suspension.
  • "TRX" models will achieve approximately 1" of additional lift.
  • Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.

SPECS

  • Est. Install Time 4-6 hours

Vehicle Applications

2012-2018 4WD Ram 1500
2019-2023 4WD Ram 1500 Classic

NOTES - IMPORTANT
Will fit Eco Diesel engine models.
Kit is not recommended for AWD models.
Does NOT fit models with factory air ride suspension.
"TRX" models will achieve approximately 1" of additional lift.
Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.

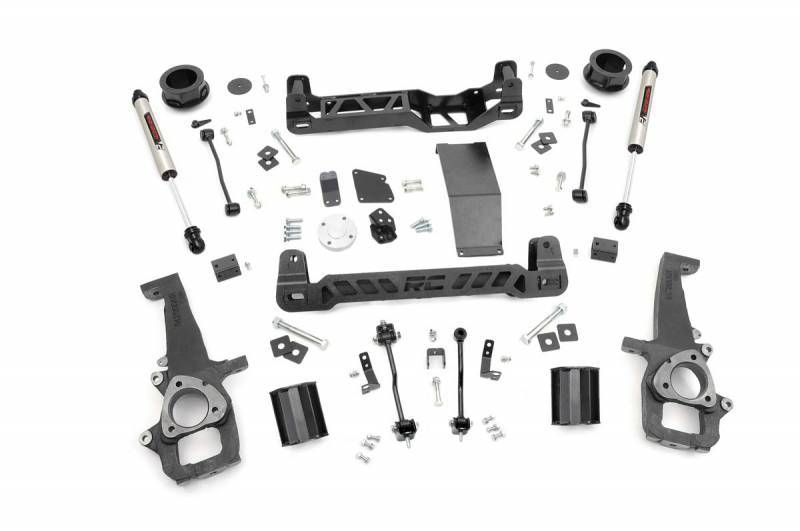

Components

FRONT
Lifted knuckles
(2) Upper strut spacers
Optional: (2) Premium N3 Loaded Struts
Front crossmember
Rear crossmember
Differential drop brackets
Driveshaft spacer
Sway-bar links
Skid plate
Hardware

REAR
Upper coil spacers
Sway-bar links
Bump-stop brackets
Brake line brackets
Hardware

SHOCKS
(2) Rear Shocks

Tires & Wheels

35x12.50R20 20x9 5x5.5 -12 -
35x12.50R20 20x9 5x5.5 +0 -
35x12.50R20 20x9 5x5.5 +0 Minor trimming
35x12.50R20 20x9 5x5.5 +1 -
35x12.50R20 20x9 5x5.5 +1 Minor trimming
295/60R20 20x9 5x5.5 +1 -
35x12.50R20 20x10 5x5.5 -25 -
35x12.50R20 20x10 5x5.5 -24 -
35x12.50R20 20x10 5x5.5 -19 -
295/60R20 20x10 5x5.5 -19 -
35x12.50R20 20x10 5x5.5 -18 -
35x12.50R22 22x10 5x5.5 -25 -
35x12.50R22 22x10 5x5.5 -24 -
35x12.50R22 22x10 5x5.5 -19 -
35x12.50R22 22x10 5x5.5 -19 Minor trimming
35x12.50R22 22x10 5x5.5 -18 -
35x12.50R22 22x10 5x5.5 -18 Minor trimming

Details

  • 33370
  • 33370
  • 843030176884
  • Rough Country
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
