155262TPC | Belltech 2 Inch Lift / Coilover Kit For Mercedes-Benz Sprinter 2500 | 4400-5200LBS Axle Rating

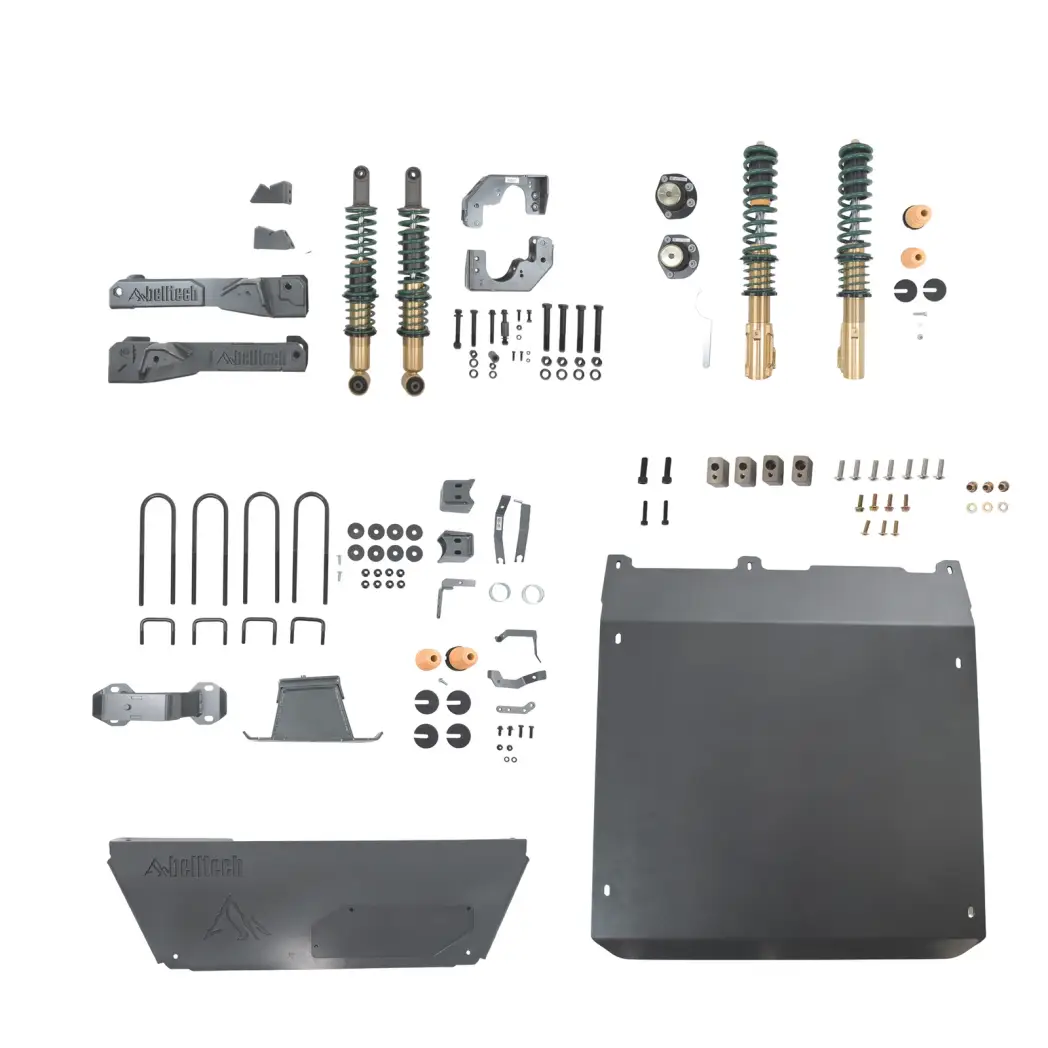

Engineered to take your Mercedes-Benz Sprinter 2500 AWD deeper into the adventure, the Belltech 2" lift kit delivers a balanced combination of off-road capability, durability, and refined on-road performance. The system features Belltech's precision-engineered, load-adjustable coilovers that support a 5,200-lb. rear axle rating while increasing wheel travel, improving ride control, and providing confident handling across a variety of terrains. The enhanced suspension setup also helps provide greater stability and control in challenging driving conditions, including windy environments where Sprinter vans can be more susceptible to crosswinds.

Heavy-duty rear shock frame braces and high-quality hardware deliver enhanced chassis rigidity and lasting durability. Heavy-duty skid plates shield critical underbody components, ensuring reliable protection on rugged terrain. Whether you're building an overland camper or upgrading your work van, Belltech delivers premium engineering, exceptional ride quality, and confident on- and off-road performance.

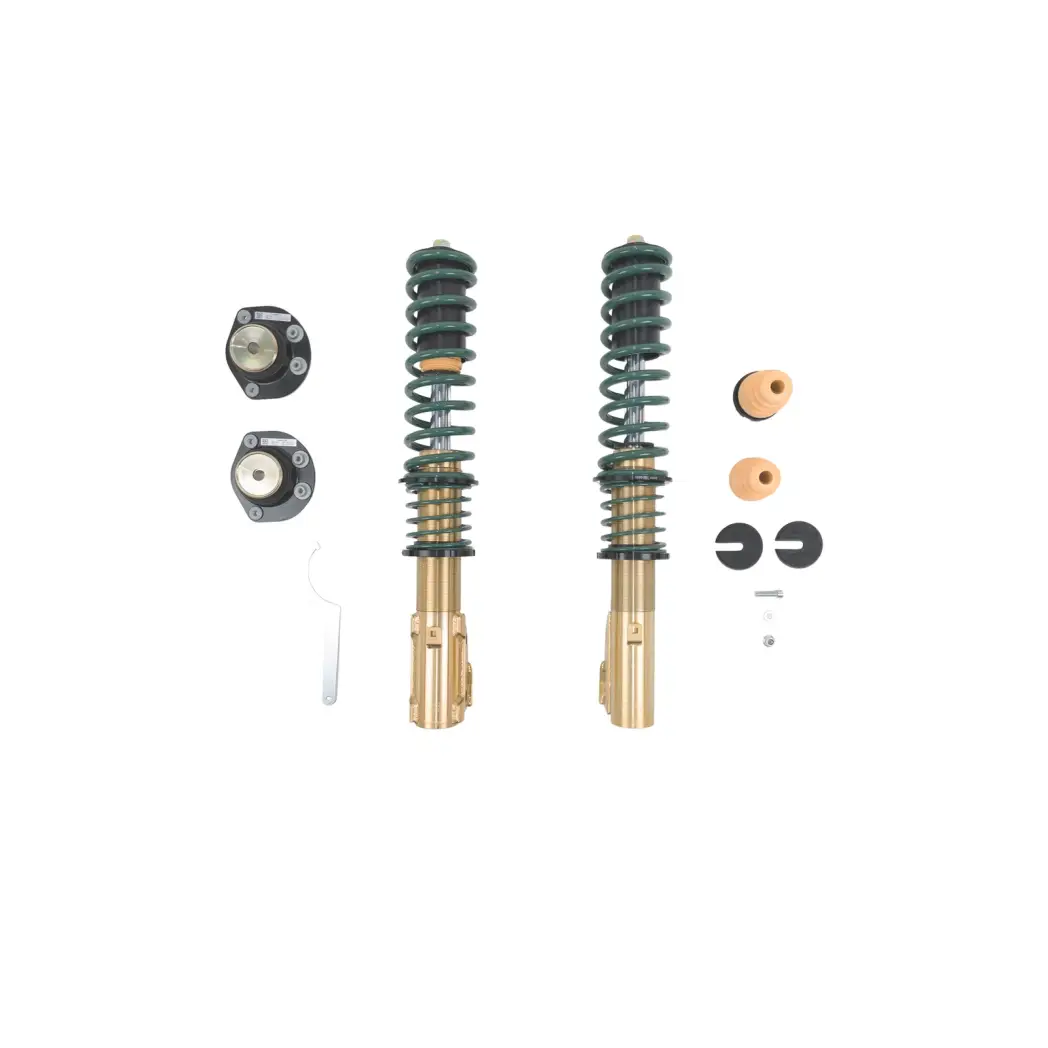

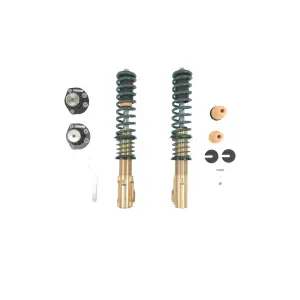

Front Features

• Load Adjustable Coilovers
  • Delivered pre-assembled with new top mounts
  • 2" (50 mm) of lift to optimize your Sprinter's stance and ride height for your build, load, and adventure needs
  • 40 N/mm spring rate for comfort, control, and capability

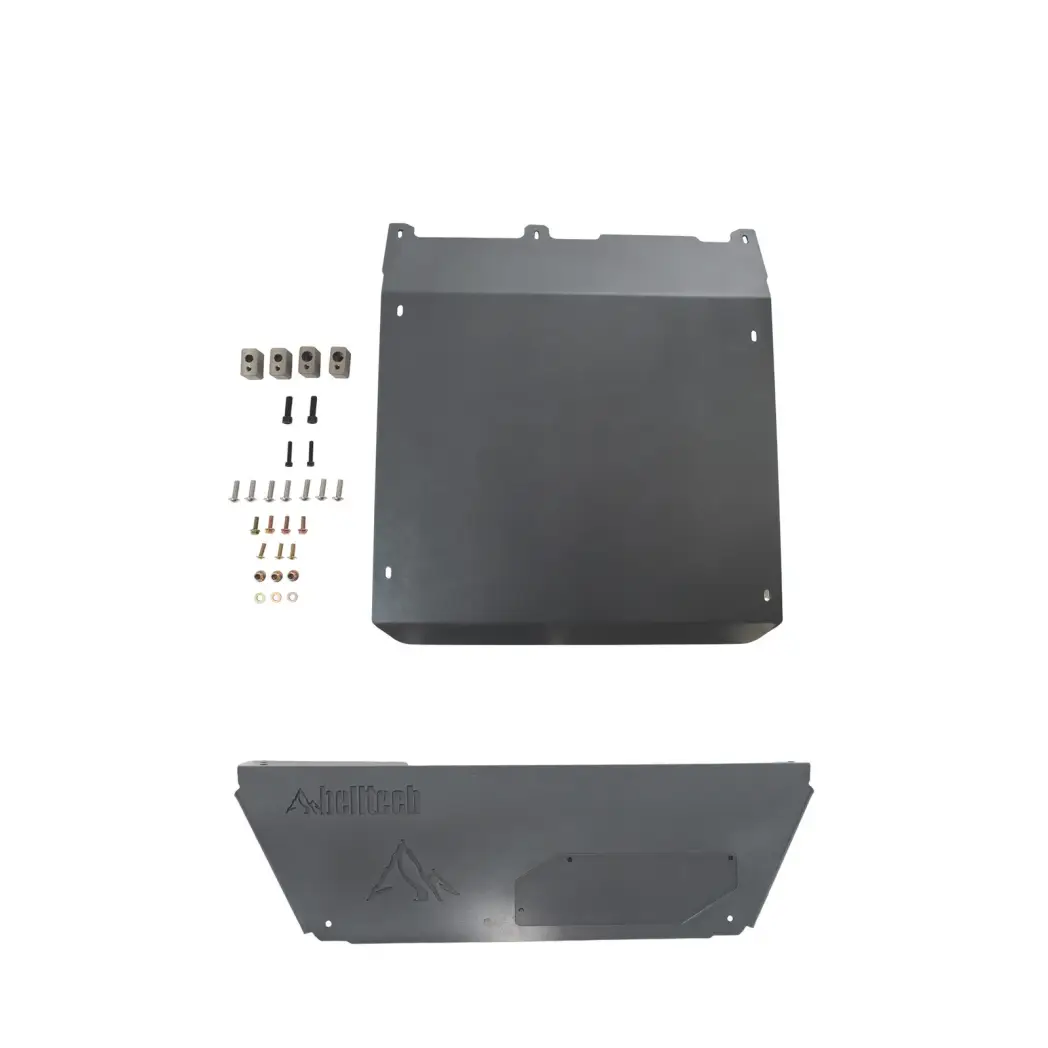

• Front Skid Plates
  • Finished in a high-quality metallic powder coat for superior corrosion resistance
  • Built from 3/16” steel for exceptional strength and long-term durability
  • Precision-designed fitment with OEM-quality mounting hardware for a straightforward, bolt-on installation

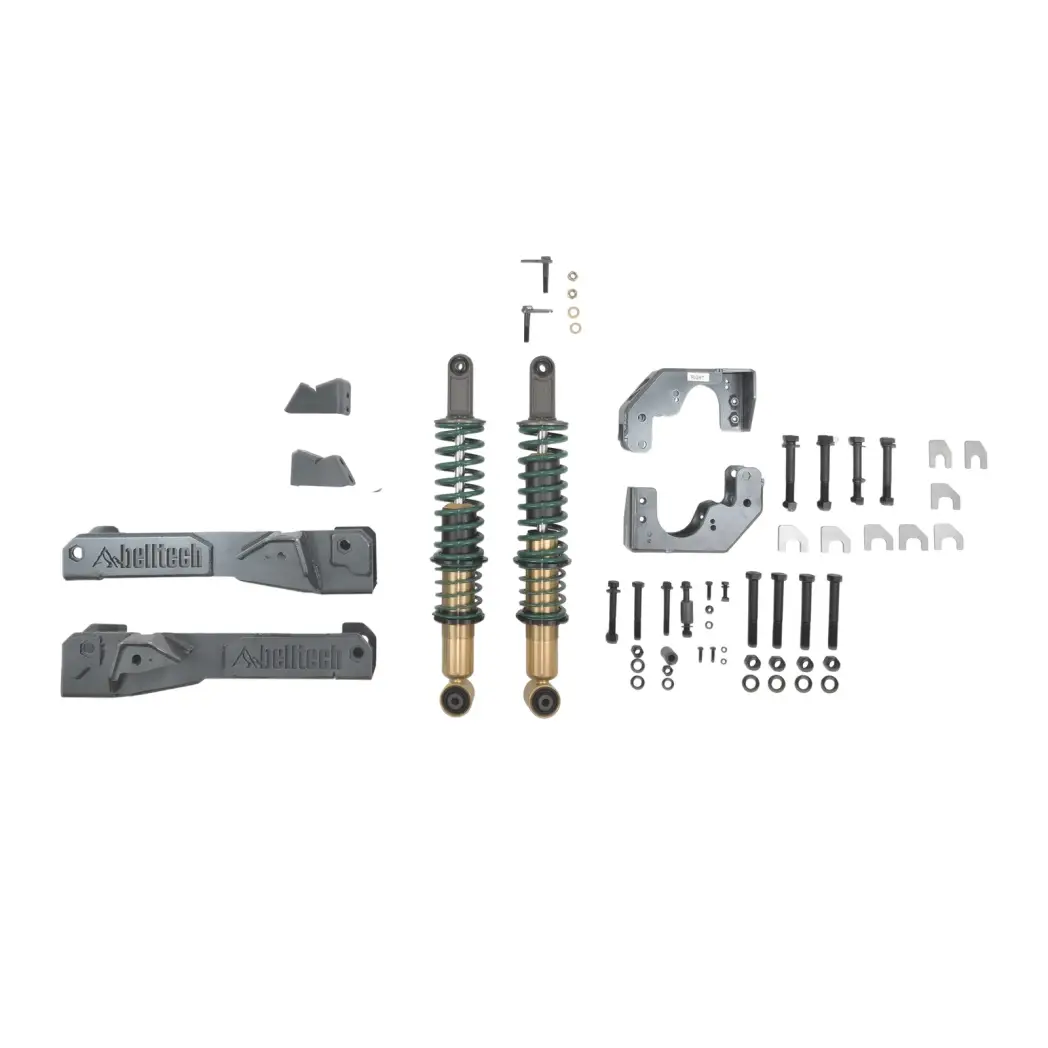

Rear Features

• Load Adjustable Coilovers
  • Delivered pre-assembled with new mounting points for coilover braces
  • Leveling adjustment to fine-tune your Sprinter's stance with support for rear axle
  • 50 N/mm spring rate for heavier payloads and towing


• Upper and Lower Shock Braces
  • Constructed with 1/4" thick steel that is powder coated for strength and corrosion resistance
  • Repositions the rear shock mounting points to support additional suspension travel
  • The upper braces clamp over the frame rails to reinforce areas known to be weak, adding strength and stability to the chassis

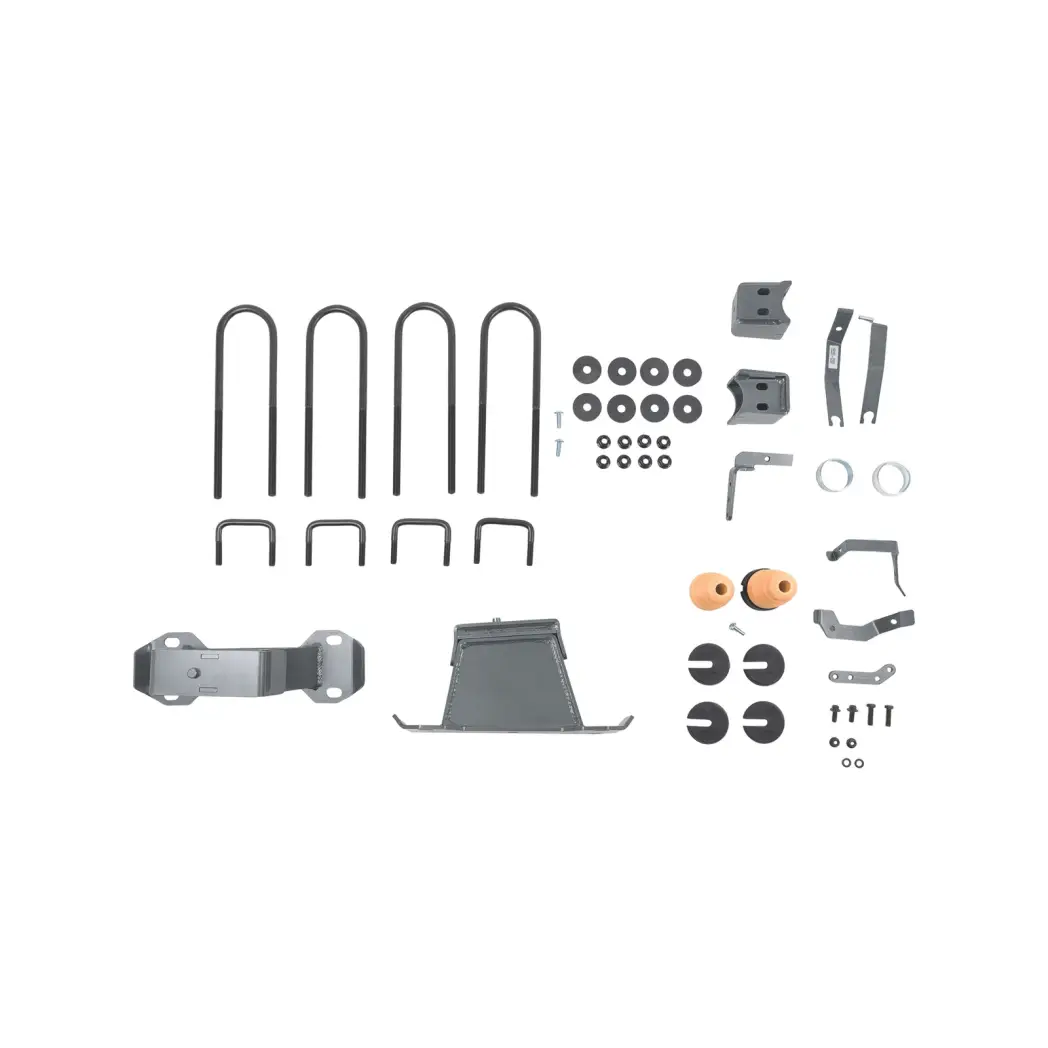

• Rear Lift Blocks
  • Height adjustable lift block system for a 2” or 3” application
  • Finished in a high-quality metallic powder coat for superior corrosion resistance
  • Extended length round U-bolts and anti-axle wrap squared U-bolts are supplied to properly fasten with the original U-bolt mounts


• Adjustable Bump Stop System
  • Progressive-rate polymer foam bump stops provide smooth limit control
  • Spacers to adjust the bump stop height to match the lift block setup
  • Easy bolt-in solution with supplied high-grade hardware
