11700116 | Ridetech Performance Lowering System For Chevrolet Silverado / GMC Sierra 1500 | 4WD | With OE Cast Steel Arms

Lower your 2007-2016 Chevy Silverado or GMC Sierra 1500 4WD 3-4 inches up front and 4-5.5 inches in the rear with Ridetech StreetGRIP lowering suspension system. More than a lowering kit, StreetGRIP will turn your vehicle into a high-performance muscle truck with better stance, handling and ride quality.  This system is 100% bolt-on, fully adjustable and made in the USA.

Fitment includes 2007-2016 Chevrolet Silverado and GMC Sierra 1500 2WD & 4WD pickups WITH CAST STEEL OE CONTROL ARMS.   Some trucks (specifically 2014-2016 model years) may have stamped steel or aluminum control arms which use different spindles and ball joints (Kit # 11710111 & 11710116).  Trucks equipped with magnetic suspension require shock simulators.

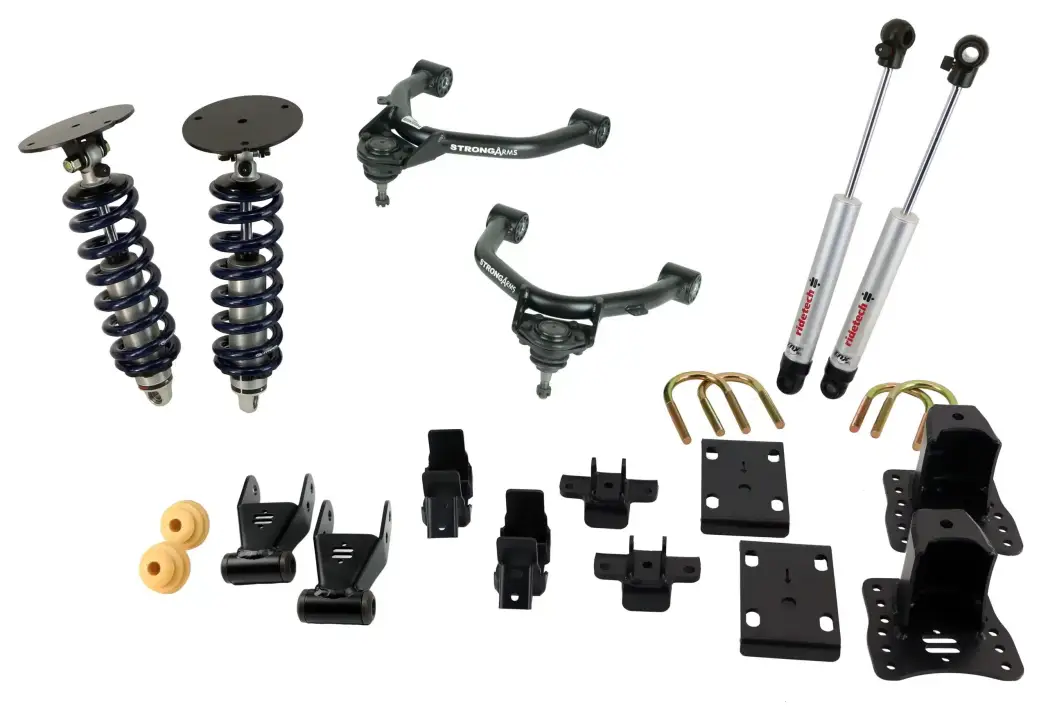

Included

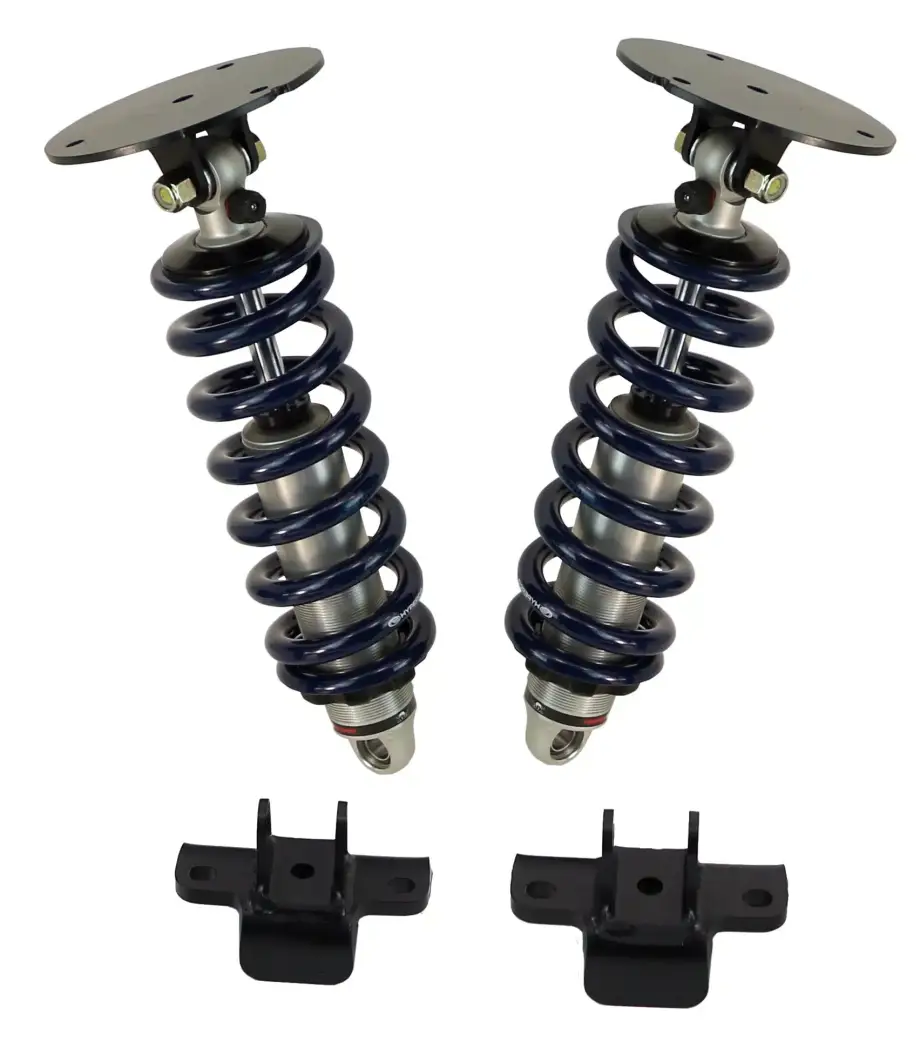

• Front factory springs and shocks are replaced with heavy-duty HQ Series Coil-overs with a 1,000,001-mile warranty.
• Front and rear shock absorbers feature rebound adjustment so that you can fine-tune valving to suit your driving style and vehicle specs.
• The Upper StrongArm tubular control arms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment.  Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

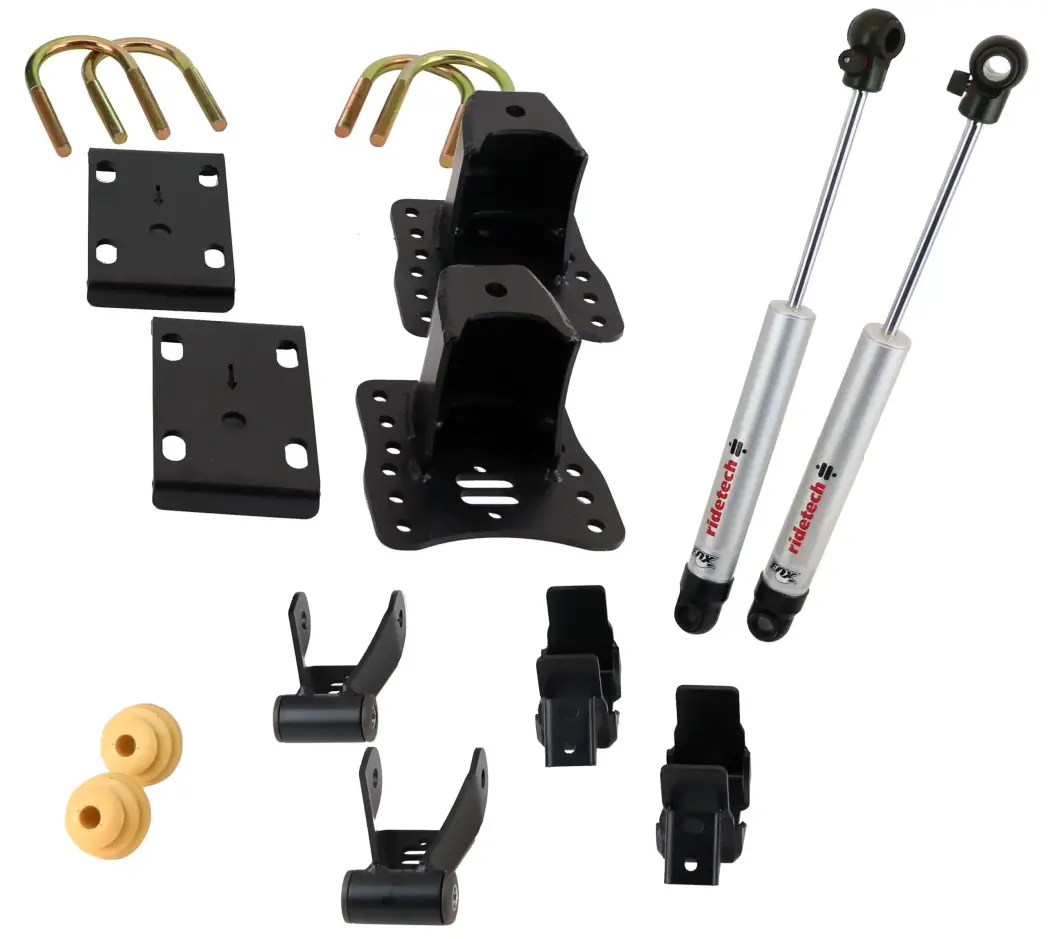

• Rear suspension upgrades feature an adjustable shackle, adjustable hanger and flip kit.
• Rear adjustable HQ Series monotube shock absorbers.
• All necessary hardware is included to make the swap a simple bolt-on upgrade.
• Fits standard, extended and crew cab 1500 configurations.
• *NOTE *Minimum 17 inch diameter wheels are required.

Features

• Lowered stance
• Adjustable ride height, 3-4 inch front drop & 4-5.5 inch rear drop.
• Improved ride quality and handling.
• Rebound adjustable shocks with 1,000,001 mile warranty.
• Bolt-on installation – No welding (Rear bump stop bracket must be removed).
• Corrected driveline angles to prevent driveline vibrations.

Options

• Front Sway Bar will increase the sway bar rate by 52% and reduce suspension bind with Delrin lined bushings and performance end links.
• The Air Assist load leveling option will maximize the vehicle’s safe load-carrying capacity, stability, ride quality and brake effectiveness.
