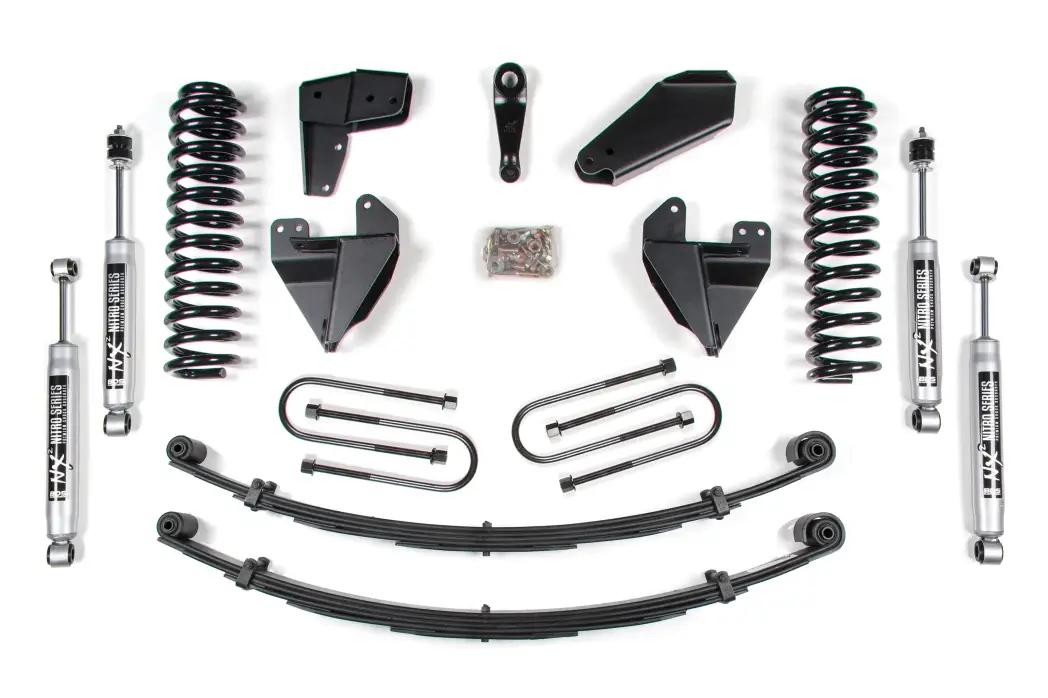

BDS511H | BDS Suspension 6 Inch Lift Kit For Ford F-100 / F-150 4WD | Rear 6 Inch Leaf Springs | NX2 Nitro Series Shocks

• Easy, Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for better control

• 35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Rear Lift Option

4 Inch Block Kit

• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• Blocks made of steel for high strength.
• Designed to provide correct pinion angles.

6 Inch Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Important Notes

1. Front end alignment required. Alignment cams may be required. See page 118.
2. #123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems between 1980 and 1996. In extremely rare cases, modification may be required.
3. Extended lines required for all 4-6" lifts.
4. Does not fit F150 models without power steering.

Installation

Specification

• Front Lift Method : Coil Spring
• Front Lift Height : 6"
• Rear Lift Method : Leaf Spring
• Rear Lift Height : 6"
• Shocks Included : Yes
