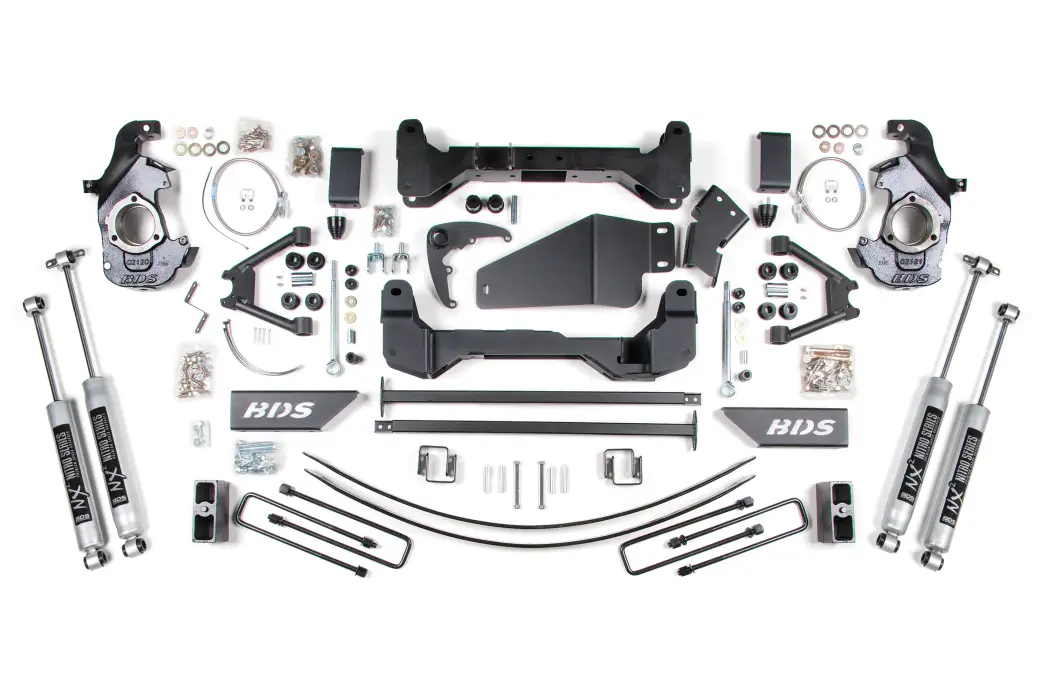

BDS195H | BDS Suspension 6 Inch Lift Kit For Chevrolet Suburban / Tahoe / GMC Yukon 1500 | NX2 Nitro Series Shocks

For 1992-1998 Chevrolet Suburban / Tahoe / GMC Yukon 1500

BDS195H
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $3,281.02
Qty:

Description

Engineered to improve stance, performance, and capability, the BDS 6-inch lift kit for the 1992-1998 Chevy and GMC Suburban, Tahoe, and Yukon 6 Lug SUVs is a must have upgrade. For maximum driveability, BDS designed this kit around heavy duty upper control arms and steering knuckles that offers zero track width change.This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar drop brackets, heavy duty upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles for long lasting durability
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 15 x 8 and 3.625 in. Backspace
  • 35 x 12.5 with 17 x 8 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.25 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Important Notes

  1. Requires exhaust modification.
  2. Special tool (Kent Moore Tools Part #J-36202-A) required to unload/load torsion bars.Not available through BDS.
  3. Requires frame bracket modification and differential mount modification.
  4. All models equipped with auto-trac may require a new front driveshaft. The auto-trac New Process 246 transfer case can be identified by the silver dollar sized plaque on the rear of the transfer case that reads "NP246". The dash mounted display will display the Auto 4WD symbol. NP243 is not auto-trac.
  5. Aftermarket wheels required. (See tire and wheel info in the instructions)
  6. System will not work on some 88-95 vehicles equipped with spindle mounted front ABS sensor.
  7. Four door models require 121002 Torsion Bar Crossmember Kit.

 Installation

Est. Install Time :

8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Reciprocating Saw, Torsion Bar Unloading Tool

Specification

  • Front Lift Method : Cross-Member
  • Front Lift Height : 6"
  • Rear Lift Method : Block & Add-A-Leaf
  • Rear Lift Height : 5"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
1992ChevroletBlazerALLALLALLFront and Rear6"
1992GMCK1500 SuburbanALLALLALL
1992GMCYukonALL4WDALL
1992ChevroletK1500 SuburbanALLALLALL
1993ChevroletBlazerALLALLALLFront and Rear6"
1993GMCYukonALL4WDALL
1993GMCK1500 SuburbanALLALLALL
1993ChevroletK1500 SuburbanALLALLALL
1994ChevroletBlazerALLALLALLFront and Rear6"
1994GMCYukonALL4WDALL
1994ChevroletK1500 SuburbanALLALLALL
1994GMCK1500 SuburbanALLALLALL
1995ChevroletK1500 SuburbanALLALLALL
1995GMCK1500 SuburbanALLALLALL
1995GMCYukonALL4WDALL
1995ChevroletTahoeALL4WDALL
1996GMCK1500 SuburbanALLALLALL
1996ChevroletK1500 SuburbanALLALLALL
1996ChevroletTahoeALL4WDALL
1996GMCYukonALL4WDALL
1997GMCK1500 SuburbanALLALLALL
1997ChevroletK1500 SuburbanALLALLALL
1997GMCYukonALL4WDALL
1997ChevroletTahoeALL4WDALL
1998ChevroletK1500 SuburbanALLALLALL
1998ChevroletTahoeALL4WDALL
1998GMCYukonALL4WDALL
1998GMCK1500 SuburbanALLALLALL

Component List

1 BDS011459 88-98 GM K1500 (6-Lug) 5in Rear Box Kit
1 BDS021602 88-98 GM K1500 (6-Lug) 6in Front (1of3)
1 BDS021605 88-98 Front box kit (2of3)
1 BDS021606 88-98 Front box kit (3of3)
1 BDS121002 GM IFS Tahoe 4wd Crossmember Kit
2 BDS85600 NX2 Nitro Front Shock | 6 Inch Lift | Chevy/GMC 1500 Truck (88-98) and SUV (92-98) 4WD
2 BDS85609 NX2 Nitro Rear Shock | 6 Inch Lift | Chevy Truck (88-98) and SUV (92-98) 4WD

Tire & Wheels Recommendations

(Trimming may be required)
35 x 12.5 with 15 x 8 and 3.625 in. Backspace
35 x 12.5 with 17 x 8 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 5.25 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
