BDS168H | BDS Suspension 2 Inch Lift Kit For Chevrolet Blazer / GMC Envoy | NX2 Nitro Series Shocks

For 2002-2009 Chevrolet Trailblazer / GMC Envoy

BDS168H
Pricing: $687.03
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Level out your 2002-2009 Chevy Trailblazer or GMC Envoy by installing this 2-inch lift kit from BDS. Specially designed for the GM SUV's, this 2" lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. To prevent maxing out ball joints or CV damage, BDS gets around this issue with a one piece mount increases the pre-load of the strut as well as increases the over all length of the strut assembly.

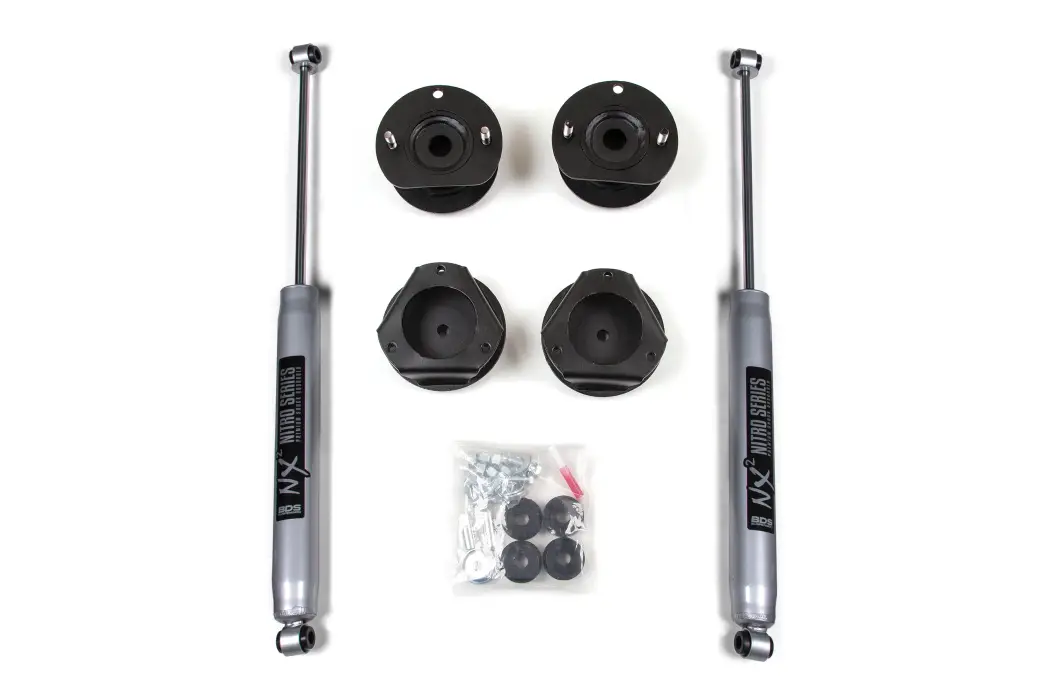

The lift kit includes steel top mount strut spacers, rear coil spring mounts and custom-tuned NX2 Nitro or FOX Performance series shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Maintains factory like ride quality
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 30 x 9.5 with 17 x 7 and in. Backspace

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Strut compressor required for installation
  2. Will not fit vehicles equipped with a rear air-ride system
  3. Will fit Ext and XL models
  4. Front only kit available as part #121201

Installation

Est. Install Time :

3-4 hrs

Difficulty Level :

Moderately Easy

Specialty Tools Needed :

Pitman Arm Puller, Strut Compressor

Specification

  • Front Lift Method : Strut Spacer
  • Front Lift Height : 2"
  • Rear Lift Method : Spacer
  • Rear Lift Height : 2"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2002ChevroletTrailblazerALL4WDALL
2002GMCEnvoyALL4WDALL
2003ChevroletTrailblazerLTZ4WDALL
2003GMCEnvoyALL4WDALL
2003ChevroletTrailblazerNorth Face4WDALL
2003ChevroletTrailblazerLS4WDALL
2003ChevroletTrailblazerLT4WDALL
2004ChevroletTrailblazerLT4WDALL
2004GMCEnvoyALL4WDALL
2004ChevroletTrailblazerLS4WDALL
2004ChevroletTrailblazerNorth Face4WDALL
2005ChevroletTrailblazerLT4WDALL
2005GMCEnvoyALL4WDALL
2005ChevroletTrailblazerLS4WDALL
2006GMCEnvoyALL4WDALL
2006ChevroletTrailblazerLT4WDALL
2006ChevroletTrailblazerLS4WDALL
2007ChevroletTrailblazerLT4WDALL
2007GMCEnvoyALL4WDALL
2007ChevroletTrailblazerLS4WDALL
2008GMCEnvoyALL4WDALL
2008ChevroletTrailblazerBase4WDALL
2008ChevroletTrailblazerLT4WDALL
2009GMCEnvoyALL4WDALL
2009ChevroletTrailblazerLT4WDALL

Component List

1 BDS011201 02-09 GM Trail/Envoy 2in Box Kit
2 BDS85619 NX2 Nitro Rear Shock | 2 Inch Lift | Chevy Trailblazer / Envoy (02-09)

Tires & Wheels

(Trimming may be required)
30 x 9.5 with 17 x 7 and in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 25.0 lbs.
  • W25.0000” x H6.0000” x L10.0000”
  • Free Ground Shipping | Exclusions Apply*
