57415 | McGaughys 4.5 Inch Premium S/S Black Lift Kit With 4-Link For Ford F-350 Super Duty 4WD

For 2023-2026 Ford F-350 4WD

57415
Pricing: $9,709.15
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Enhance Your Ford F-350 with the McGaughy's 4.5-Inch Premium 4-Link Lift Kit

Upgrade your Ford F-350 with the McGaughy's 4.5-Inch Premium Lift Kit, expertly designed to improve both performance and style. This premium package goes beyond a standard lift, converting your front suspension to a fully engineered 4-link system for superior strength, articulation, and on-road control. Precision-built and finished to match, it delivers outstanding ride quality while fine-tuning suspension and steering geometry.

Eliminate the factory rake and achieve a refined, leveled stance that complements your truck's rugged appeal. Built for strength and precision fitment, this kit includes everything you need for a smooth, efficient installation. Whether you're navigating daily commutes or exploring off-road trails, it delivers dependable performance and a striking presence.

Key Features:

  • Provides a 4.5-inch lift for a sleek, balanced profile
  • Full front 4-link conversion for improved strength, articulation, and handling
  • McGaughy's M84 Controlled front reservoir shocks for superior heat management and fade resistance
  • McGaughy's M84 Controlled rear shocks for a comfortable, controlled ride
  • Upper and lower 4-link arms with Stainless Steel inserts and Billet face plates
  • Proudly manufactured in the USA using durable, high-quality materials
  • Powder-coated black finish for a clean, aggressive look
  • Includes all necessary hardware for a straightforward installation
  • Supports larger wheels and tires for a more aggressive stance

Application List

2023-2026 Ford F-350 Super Duty 4WD

Component List

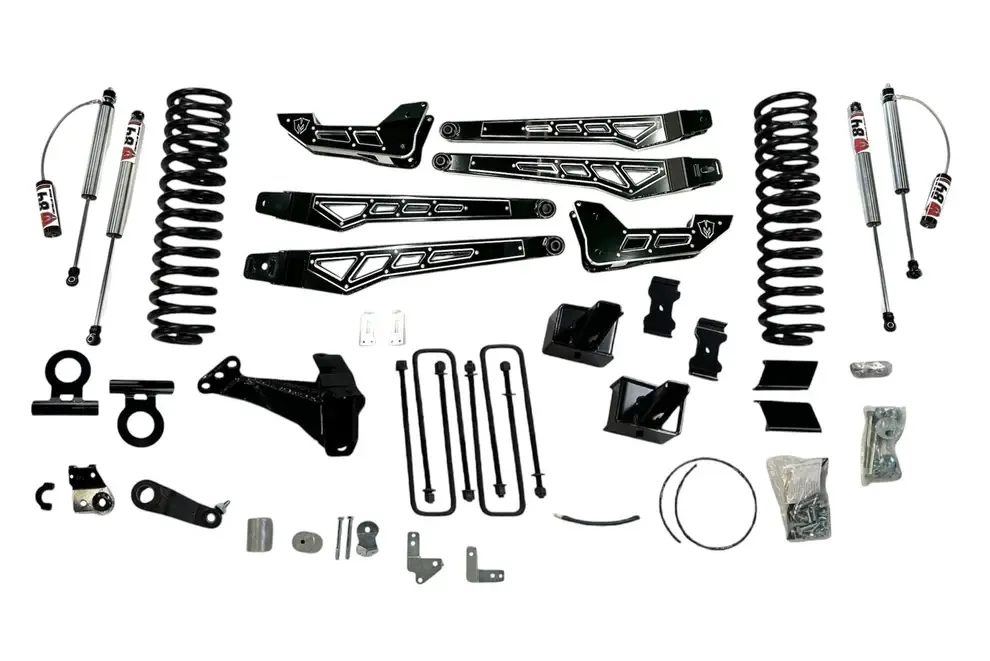

Kit Includes:

(2) Upper 4-Link Arms w/ SS Inserts & Billet Face Plates
(2) Lower 4-Link Arms w/ SS Inserts & Billet Face Plates
(2) 4-Link Drop Dow Brackets w/ SS Inserts & Billet Face Plates
(2) 4-Link Arm Auto-Leveling Brackets
(2) Front McGaughy's M84 Controlled Reservoir Shocks
(2) Rear McGaughy's M84 Controlled Shocks
(2) Front Reservoir Mounting Brackets
(2) Front Dual Rate Soft Ride Lift Coils
(2) Rear 4. 5 Inch Lift Blocks
(2) U-Bolt Retainer Plates
(2) Front Bump Stop Extensions
(1) Bump Stop Brake Line Bracket
(2) Front Brake Line Extension Brackets
(1) Drag Link Flip Bracket Kit
(1) Drop Pitman Arm
(1) Front Track Bar Drop Bracket
(2) Front Sway Bar Drop Brackets
(4) U-Bolts
All Hardware

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H28.0000” x L42.0000”
  • Free Ground Shipping | Exclusions Apply*
