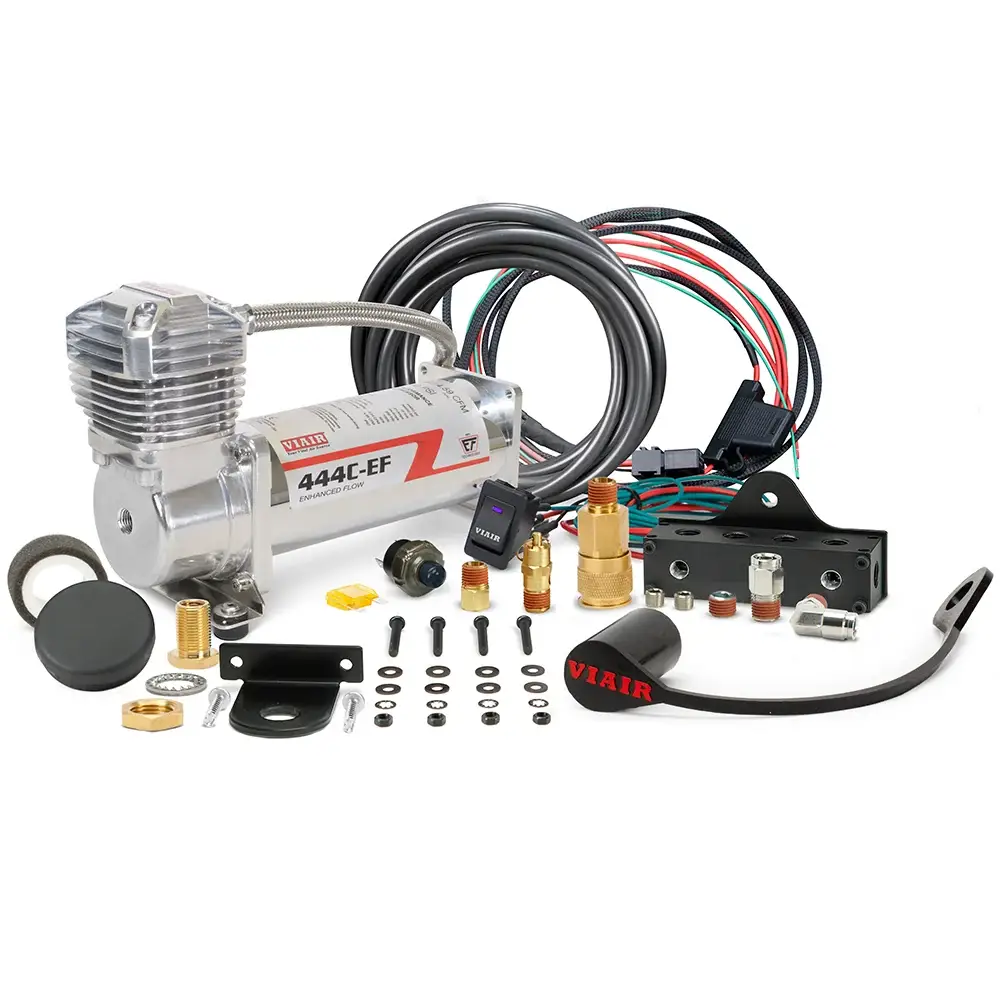

444SC01-EF | VIAIR VMS EF Base System, Single Compressor System | Chrome, Dual 444C

VIAIR Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM flow and fast tire fill with unsurpassed durability. These kits have now been enhanced with EF (Enhanced Flow technology). Delivering up to 32% faster fills and 11% more performance on a single 400C-EF and
up to 33% faster fills and 38% more performance on a single 444C-EF. These kits are offered with a Single or Dual compressors, wiring harness, a high-quality remote air chuck kit, and all necessary hardware and components to install a fully functioning system. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags, and inflatables of all kinds. Single or Dual Lock Mount Brackets are also available for a clean mounting solution.

DUAL

400C-EF Dual (150 PSI/5.30CFM): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast, and compact. 100% Duty Cycle @ 40 PSI. Available in with Black Compressors only.

444C-EF Dual (200 PSI/4.59 CFM): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI. Available in with Black Compressors only.

SINGLE

400C-EF Single (150 PSI/2.62CFM): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast, and compact. 100% Duty Cycle @ 40 PSI. Available in with Black Compressors only.

444C-EF Single (200 PSI/2.24 CFM): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI. Available in with Black Compressors only.

Specifications

SPECS - SINGLE 444C-EF

• 2.24 CFM @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI / 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 27-Amps
• Ingress Protection Rating: IP67
• Max. Ambient Temp: +158F
• Max. Ambient Temp: -40F
• Dimensions: 11.4" x 4.1" x 6.8"
• Net Weight: 10.85 Lbs.

FEATURES - SINGLE 444C-EF

• 444C-EF Stealth Black or Chrome Air Compressor
• Redesigned EF head improves airflow and heat management
• Upgraded internals for increased flow and durability
• Complete single wiring harness w/ 40A fuse holder and 35A micro relay
• Improved vibration isolators for better vibration resistance and easier installation
• Optimized leader hose length for better routing
• Air filter assemblies w/ spare air filter elements
• Mounting hardware
