444DC01-EF | VIAIR VMS EF Base System, Dual Compressor System | Chrome, Dual 444C

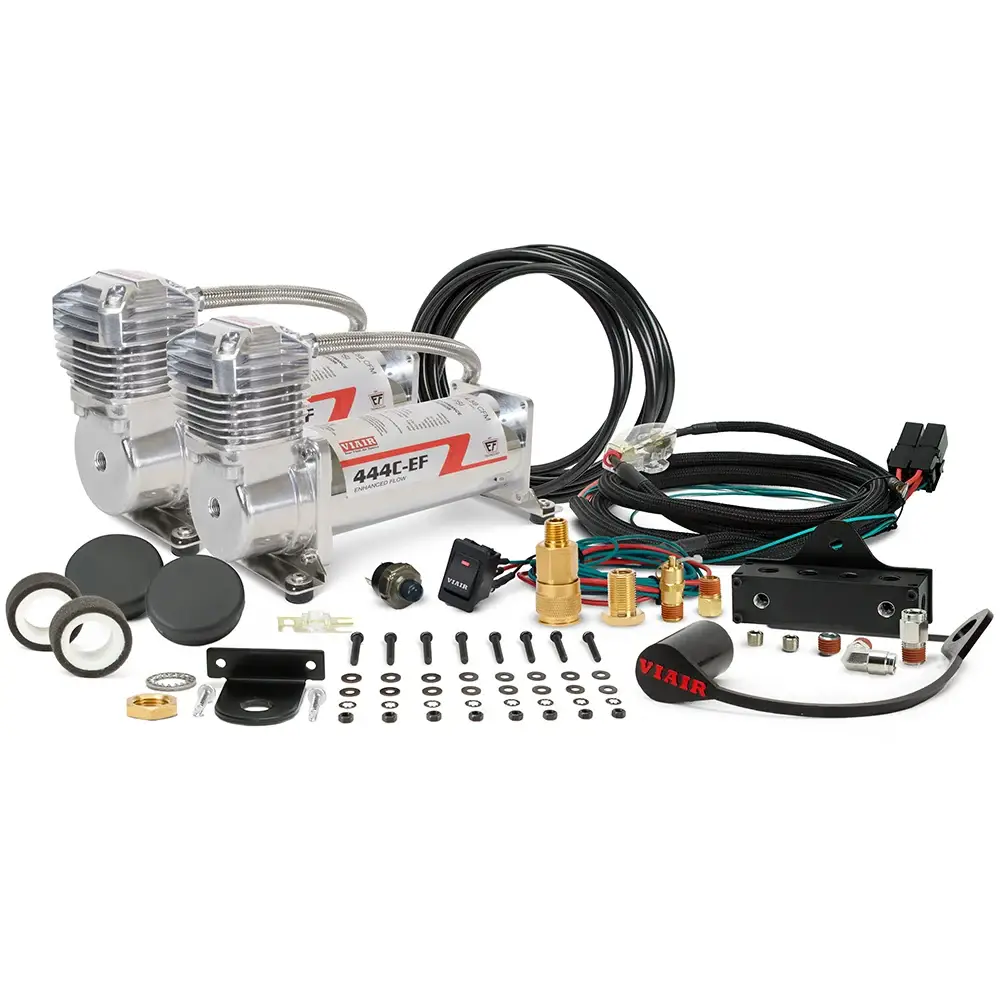

Our Dual VMS BASE System now includes EF (Enhanced Flow) technology. EF technology started life with our portables and is now integrated into our VMS Base systems. Delivering up to 21% faster fills and 36% more performance on Dual 400C-EF and up to 32% faster fills and 27% more performance on Dual 444C-EF.  The kits include two compressors, a high-quality remote mounted air chuck, a pre-made wiring harness tailored for dual compressors, and all the fittings and hardware needed. It’s a solid entry point for anyone seeking a serious onboard air system. Clean and compact, and built to deliver trail-ready performance. Also available in a single compressor configuration. Each Dual VMS BASE System is designed to provide high CFM and fast tire fill with unsurpassed durability. These systems can be used for tire inflation, air tools, air horns, air lockers, air bags, and inflatables of all kinds. 400C-EF Dual (150 PSI/5.30CFM): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast, and compact. 100% Duty Cycle @ 40 PSI. 444C-EF Dual (200 PSI/4.59 CFM): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI.

Specifications

SPECS - DUAL 444C-EF

• 4.59 CFM @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI / 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 54-Amps
• Ingress Protection Rating: IP67
• Max. Ambient Temp: +158F
• Max. Ambient Temp: -40F
• Dimensions: 11.4" x 4.1" x 6.8" (each unit)
• Net Weight: 21.70 Lbs. (compressors only)

FEATURES - DUAL 444C-EF

• (2) 444C-EF Stealth Black or Chrome Air Compressors
• Redesigned EF head improves airflow and heat management
• Upgraded internals for increased flow and durability
• Complete dual wiring harness w/ 70A fuse holder and 35A micro relay
• Improved vibration isolators for better vibration resistance and easier installation
• Air locker compatible
• Sealed compressor with IP rating of IP67 (Waterproof/Dustproof)
• Designed to be air tank ready (Air Tank Optional)
• 8-port Billet Manifold
• Pro Series Air Source Relocation Kit
• Illuminated Rocker Switch
