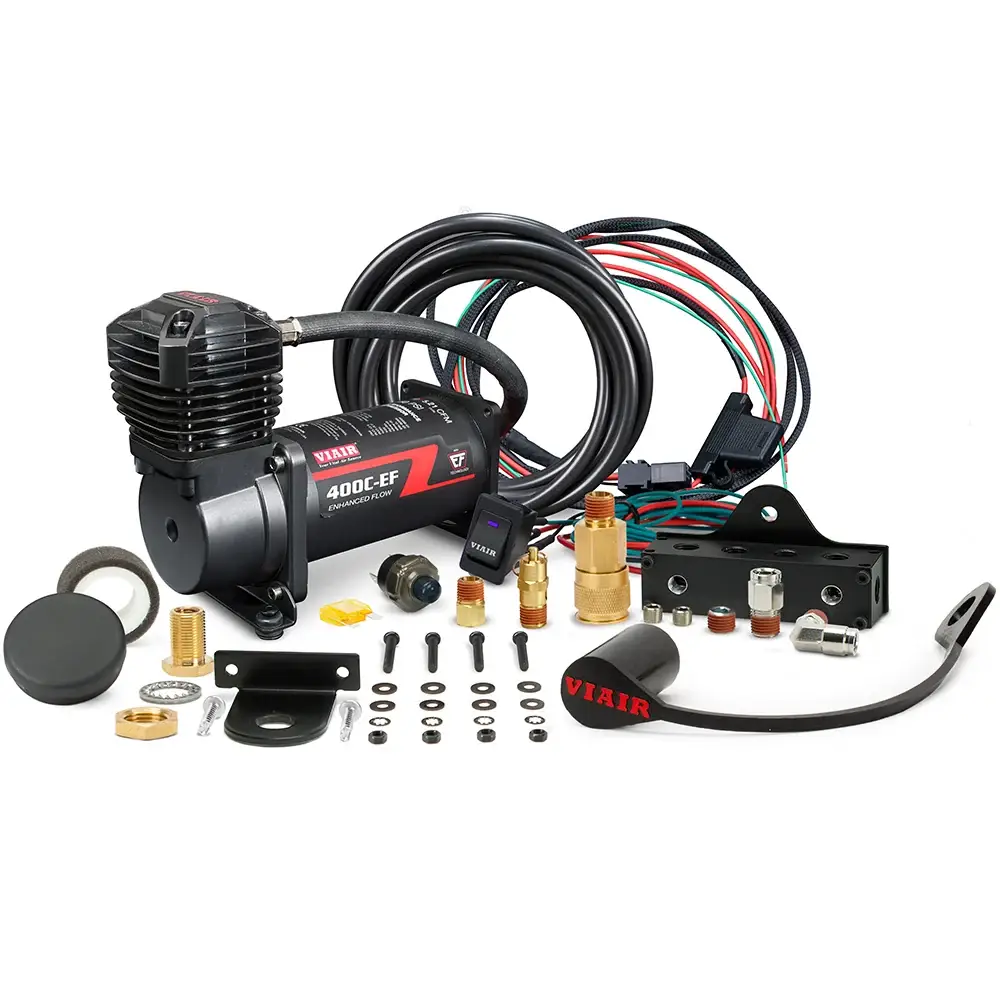

400SB01-EF | VIAIR VMS EF Base System, Single Compressor System | Stealth Black, Dual 400C

VIAIR Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM flow and fast tire fill with unsurpassed durability. These kits have now been enhanced with EF (Enhanced Flow technology). Delivering up to 32% faster fills and 11% more performance on a single 400C-EF and
up to 33% faster fills and 38% more performance on a single 444C-EF. These kits are offered with a Single or Dual compressors, wiring harness, a high-quality remote air chuck kit, and all necessary hardware and components to install a fully functioning system. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags, and inflatables of all kinds. Single or Dual Lock Mount Brackets are also available for a clean mounting solution.

DUAL

400C-EF Dual (150 PSI/5.30CFM): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast, and compact. 100% Duty Cycle @ 40 PSI. Available in with Black Compressors only.

444C-EF Dual (200 PSI/4.59 CFM): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI. Available in with Black Compressors only.

SINGLE

400C-EF Single (150 PSI/2.62CFM): Ideal for tire inflation management and any inflation tasks where 150PSI is needed. Reliable, fills fast, and compact. 100% Duty Cycle @ 40 PSI. Available in with Black Compressors only.

444C-EF Single (200 PSI/2.24 CFM): Ideal for tire inflation management, air suspension, and general needs where 200PSI is needed. Reliable and affordable. 100% Duty Cycle @ 100PSI. Available in with Black Compressors only.

Specifications

SINGLE 400C-EF

• 2.62 CFM @ 0 PSI
• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI / 100% @ 40 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 32-Amps
• Ingress Protection Rating: IP67
• Max. Ambient Temp: +158F
• Max. Ambient Temp: -40F
• Dimensions: 9.5" x 3.9" x 6.8"
• Net Weight: 8.80 Lbs.

FEATURES - SINGLE 400C-EF

• (2) 400C-EF Stealth Black Air Compressors
• Redesigned EF head improves airflow and heat management
• Upgraded internals for increased flow and durability
• Complete dual wiring harness w/ 70A fuse holder and 35A micro relays
• Improved vibration isolators for better vibration resistance and easier installation
• Air Locker compatible
• Sealed compressor with IP rating of IP67 (Waterproof/Dustproof)
• Designed to be air tank ready (Air Tank Optional)
• 8-port Billet Manifold
• Pro Series Air Source Relocation Kit
• Illuminated Rocker Switch
