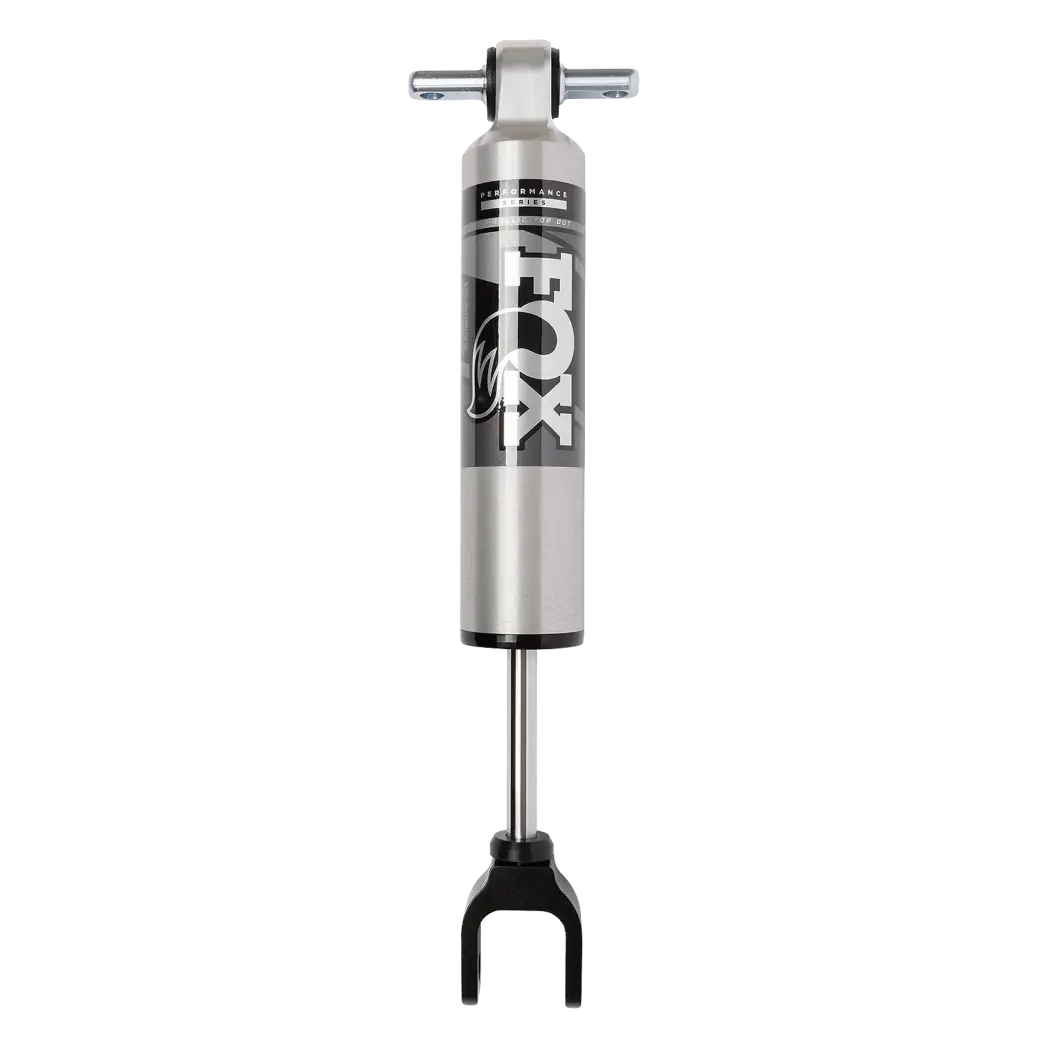

FOX98724010 | BDS Suspension Fox 2.5 IFP Front Shock With HTO For Chevrolet Silverado / GMC Sierra 2500HD / 3500HD | Performance Series | 1.5-2.5 Inch Lift

For 2020-2024 Chevrolet Silverado / GMC Sierra 2500HD / 3500HD

FOX98724010
Pricing: $478.79
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the on-road comfort and off-road control of your 2020-2024 Chevy Silverado or GMC Sierra 2500/3500 4WD to FOX Performance Series 2.5 IFP (internal floating piston) Front shocks with HTO (Hydraulic Top Out). The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.

Turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2.5” Impact extruded 6061-T6 aluminum shock body
  • Type II clear-anodized body plating
  • High-flow velocity-sensitive damping
  • 5/8” hard chrome shaft
  • Internal floating piston (IFP)
  • Hydraulic Top Out (HTO) piston

Installation

Est. Install Time :

1 hr

Difficulty Level :

Easy

Specification

  • Adjustable Damping : No
  • Compressed Length : 13.76
  • Extended Length : 18.95
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Code : Clevis
  • Lower Mount Type : Clevis
  • Position : Front
  • Shaft Diameter : 5/8"
  • Travel Length : 5.18
  • Type : Smooth Body IFP
  • Upper Mount Code : Bar Pin
  • Upper Mount Type : Bar Pin

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 7.0 lbs.
  • W6.0000” x H3.0000” x L25.0000”
  • Free Ground Shipping | Exclusions Apply*
