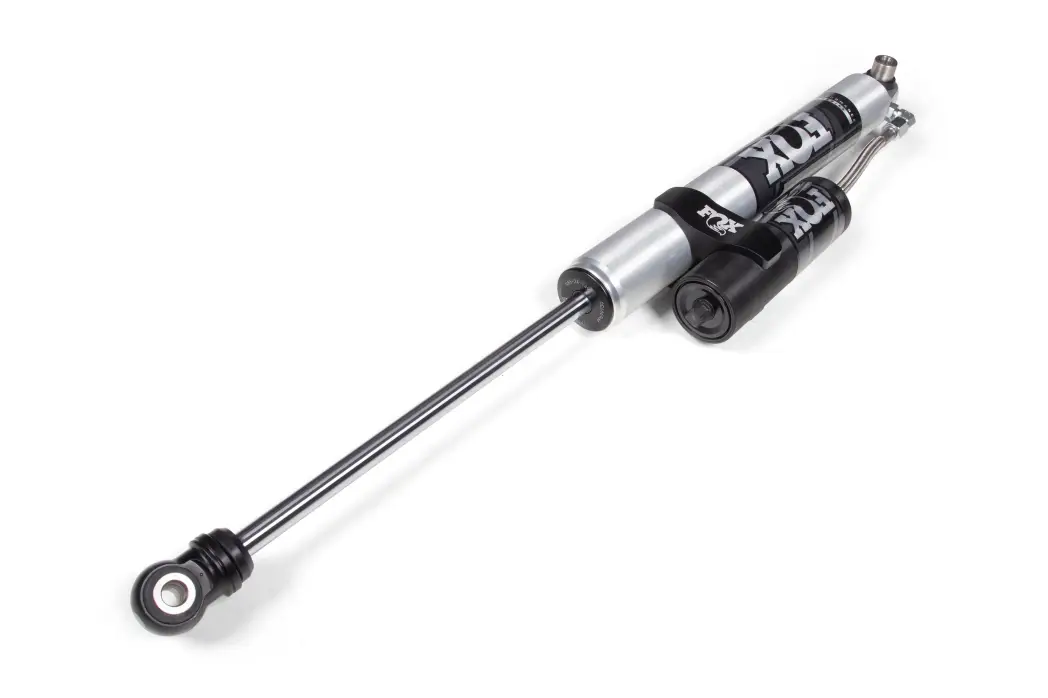

FOX98624149 | BDS Suspension Fox 2.0 Remote Reservoir Rear Shock For Jeep Wrangler JL | Performance Series | 3 Inch Lift

For 2020-2023 Jeep Wrangler JL

FOX98624149
Pricing: $379.43
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the on-road comfort and off-road control of your 2018-2023 Jeep Wrangler JL to FOX Performance Series 2.0 Remote Reservoir rear shocks. Designed to fit a BDS 3-inch lift suspension kit. The mono-tube design's remote reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

Installation

Est. Install Time :

2 hrs

Difficulty Level :

Moderately Easy

Specification

  • Adjustable Damping : No
  • Compressed Length : 18.4
  • Extended Length : 30.5
  • Finish : Clear-anodized
  • Gas Charged : No
  • Lower Mount Code : EB1
  • Lower Mount Type : Eyelet
  • Position : Rear
  • Shaft Diameter : 5_8
  • Travel Length : 12.1
  • Type : Smooth Body
  • Upper Mount Code : ES15
  • Upper Mount Type : Eyelet

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2018JeepWranglerALLALLALLRear3"
2018JeepWranglerALLALLALL
2019JeepWranglerALLALLALL
2019JeepWranglerALLALLALLRear3"
2020JeepWranglerALLALLALLRear3"
2020JeepWranglerALLALLALL
2021JeepWranglerALLALLALLRear3"
2021JeepWranglerALLALLALL
2022JeepWranglerALLALLALLRear3"
2022JeepWranglerALLALLALL
2023JeepWranglerSportALLALL
2023JeepWranglerRubiconALLALL
2023JeepWranglerSaharaALLGAS
2023JeepWranglerHigh AltitudeALLALL
2023JeepWranglerSaharaALLDIESEL
2023JeepWranglerWillys 4xeALLALL
2023JeepWranglerWillysALLALL
2023JeepWranglerUnlimited SaharaALLALL
2023JeepWranglerSahara 4xeALLALL
2023JeepWranglerSahara High AltitudeALLALL
2023JeepWranglerSahara AltitudeALLALL
2023JeepWranglerSport AltitudeALLALL
2023JeepWranglerRubicon 4xeALLALL
2023JeepWranglerUnlimited RubiconALLALL
2023JeepWranglerRubicon 392ALLALL
2023JeepWranglerALLALLALLRear3"
2023JeepWranglerWillys SportALLALL
2023JeepWranglerSport SALLALL
2023JeepWranglerHigh Altitude 4xeALLALL
2024JeepWranglerWillysALLALLRear
2024JeepWranglerUnlimited RubiconALLALLRear
2024JeepWranglerUnlimited WillysALLALLRear
2024JeepWranglerRubicon 392 Final EditionALLALLRear
2024JeepWranglerWillys SportALLALLRear
2024JeepWranglerSportALLALLRear
2024JeepWranglerUnlimited SaharaALLALLRear
2024JeepWranglerRubiconALLALLRear
2024JeepWranglerRubicon 392ALLALLRear
2024JeepWranglerSport SALLALLRear
2024JeepWranglerRubicon XALLALLRear
2025JeepWranglerRubiconALLALLRear
2025JeepWranglerUnlimited RubiconALLALLRear
2025JeepWranglerWillysALLALLRear
2025JeepWranglerRubicon XALLALLRear
2025JeepWranglerUnlimited WillysALLALLRear
2025JeepWranglerSport SALLALLRear
2025JeepWranglerRubicon 392 Final EditionALLALLRear
2025JeepWranglerSportALLALLRear
2025JeepWranglerUnlimited SaharaALLALLRear
2026JeepWranglerSport SALLALLRear3"
2026JeepWranglerSportALLALL
2026JeepWranglerSportALLALLRear
2026JeepWranglerRubicon 392ALLALLRear
2026JeepWranglerWillysALLALLRear
2026JeepWranglerRubicon 392ALLALLRear3"
2026JeepWranglerWillysALLALL
2026JeepWranglerSaharaALLALLRear3"
2026JeepWranglerWillysALLALLRear3"
2026JeepWranglerSportALLALLRear3"
2026JeepWranglerSport SALLALLRear
2026JeepWranglerRubicon XALLALLRear3"
2026JeepWranglerRubiconALLALL
2026JeepWranglerRubiconALLALLRear3"
2026JeepWranglerRubicon XALLALLRear
2026JeepWranglerSaharaALLALL
2026JeepWranglerSport SALLALL
2026JeepWranglerRubiconALLALLRear
2026JeepWranglerRubicon 392ALLALL

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 7.0 lbs.
  • W3.0000” x H6.0000” x L25.0000”
  • Free Ground Shipping | Exclusions Apply*
