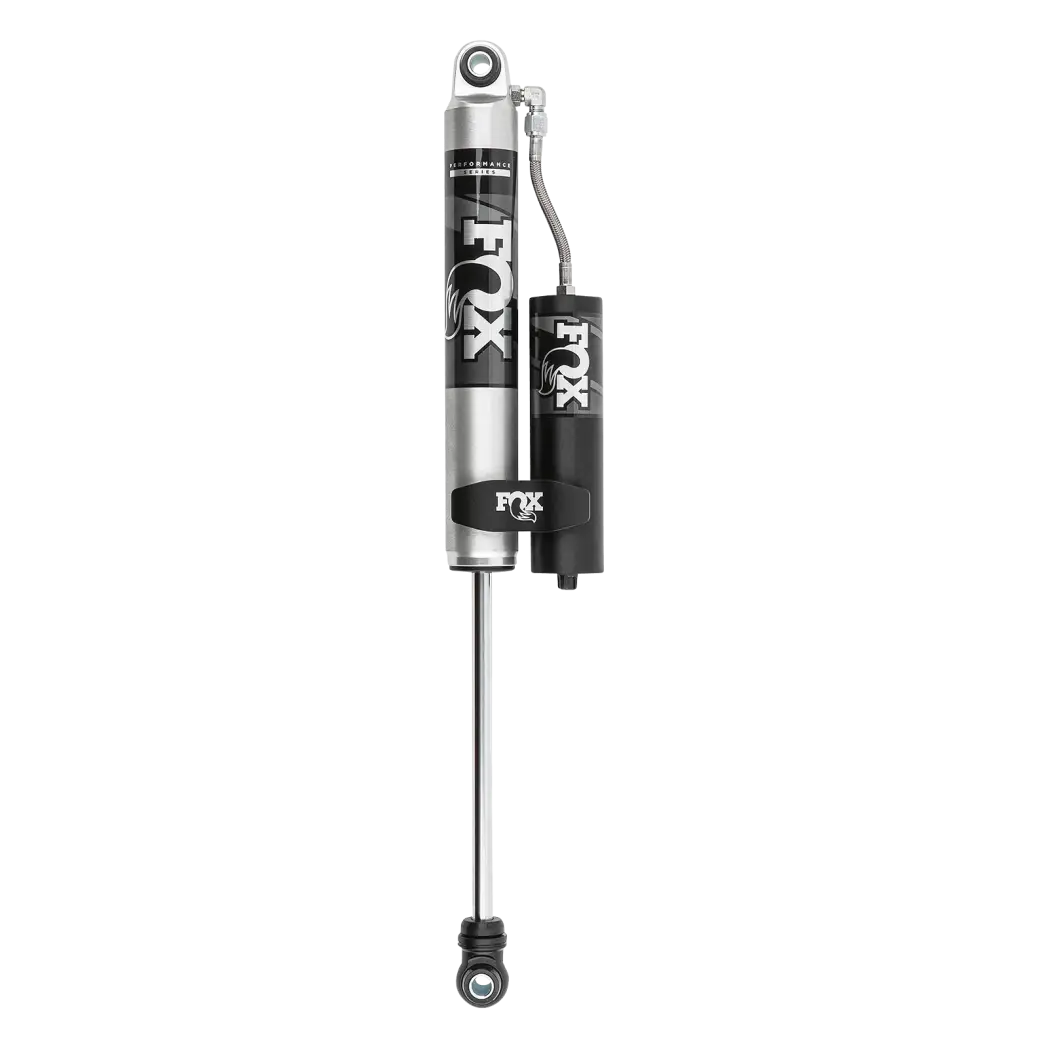

FOX98524243 | BDS Suspension Fox 2.0 Remote Reservoir Rear Shock For Chevrolet Silverado / GMC Sierra 2500HD / 3500HD | Performance Series | 0-1 Inch Lift

For 2020-2026 Chevrolet Silverado / GMC Sierra 2500HD / 3500HD

FOX98524243
Pricing: $492.59
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the on-road comfort and off-road control of your 2020-2026 Chevy Silverado or GMC Sierra 2500HD / 3500HD to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 0 to 1 inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

Installation

Est. Install Time :

1 hr

Difficulty Level :

Easy

Specification

  • Adjustable Damping : No
  • Compressed Length : 15.9
  • Extended Length : 26.52
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Code : Eyelet
  • Lower Mount Type : Eyelet
  • Position : Rear
  • Shaft Diameter : 5/8"
  • Travel Length : 10.62
  • Type : Smooth Body IFP
  • Upper Mount Code : Eyelet
  • Upper Mount Type : Eyelet

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2025GMCSierra 2500 HDPro4WDALLRear1"
2025GMCSierra 2500 HDDenaliALLALLRear1"
2025ChevroletSilverado 3500 HDLTZ4WDALLRear1"
2025ChevroletSilverado 2500 HDLT4WDALLRear1"
2025ChevroletSilverado 2500 HDLTZ4WDALLRear1"
2025ChevroletSilverado 3500 HDLT4WDALLRear1"
2025GMCSierra 2500 HDSLT4WDALLRear1"
2025ChevroletSilverado 2500 HDHigh CountryALLALLRear1"
2025GMCSierra 3500 HDALL4WDALLRear1"
2025ChevroletSilverado 2500 HDCustom4WDALLRear1"
2025ChevroletSilverado 2500 HDWT4WDALLRear1"
2025ChevroletSilverado 3500 HDWT4WDALLRear1"
2025GMCSierra 2500 HDAT4ALLALLRear1"
2025GMCSierra 2500 HDDenali UltimateALLALLRear1"
2025ChevroletSilverado 3500 HDHigh CountryALLALLRear1"
2025GMCSierra 2500 HDSLE4WDALLRear1"

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W3.0000” x H3.0000” x L20.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
