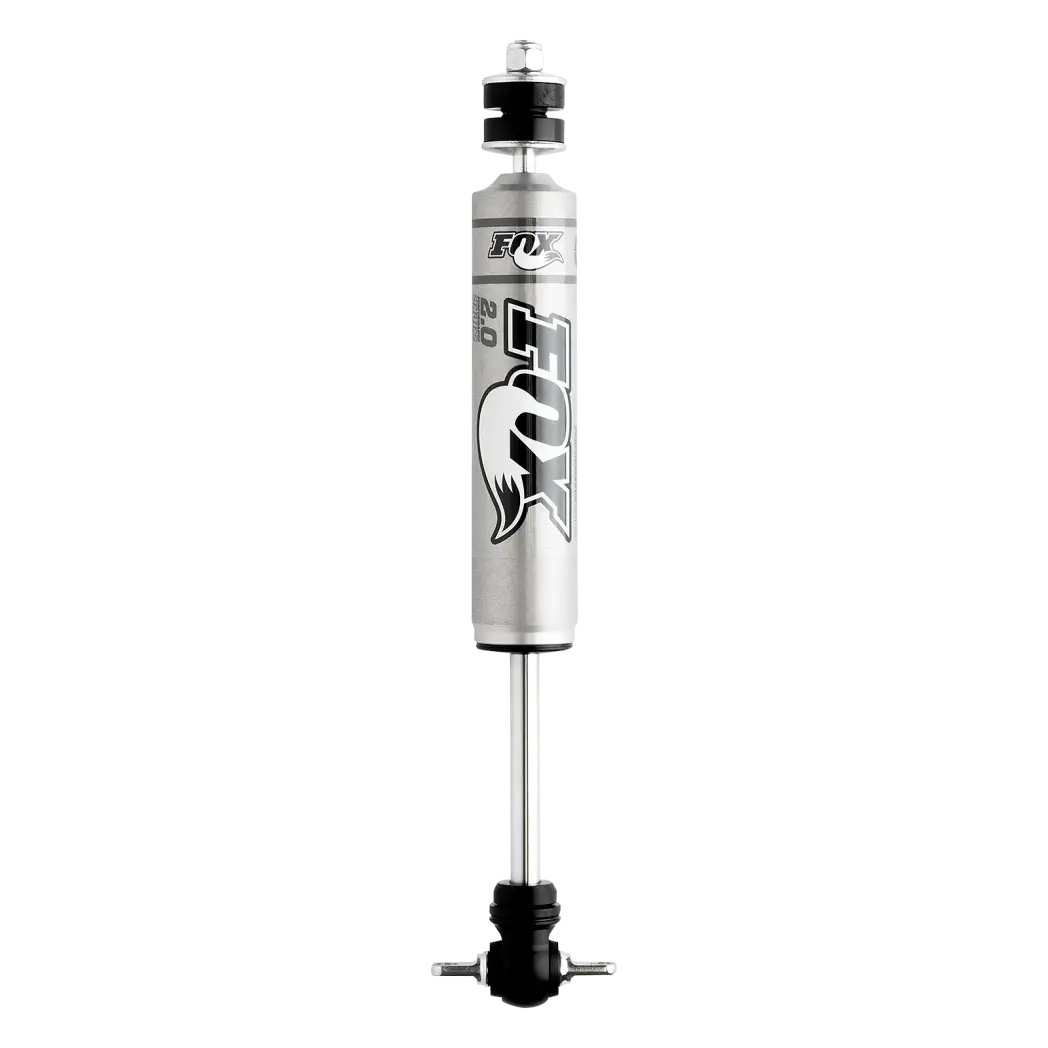

FOX98524084 | BDS Suspension Fox 2.0 IFP Front Shock For Jeep Wrangler TJ / Cherokee XJ | Performance Series | 0-2 Inch Lift

For 1997-2006 Jeep Wrangler TJ / 1984-2001 Cherokee XJ

FOX98524084
Pricing: $317.33
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Improve the on-road comfort and off-road control of your Jeep Wrangler TJ or Cherokee XJ to FOX Performance Series 2.0 IFP (internal floating piston) front shocks. Designed to fit a 0 to 2-inch lift kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

A precision metal impact aluminum body increases cooling capacity and will never rust. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

Installation

Est. Install Time :

1 hr

Difficulty Level :

Easy

Specification

  • Adjustable Damping : No
  • Compressed Length : 13.55
  • Extended Length : 21.17
  • Finish : Clear-anodized
  • Gas Charged : No
  • Lower Mount Code : BP1
  • Lower Mount Type : Bar Pin
  • Position : Front
  • Shaft Diameter : 5/8"
  • Travel Length : 7.62
  • Type : Smooth Body IFP
  • Upper Mount Code : Stem
  • Upper Mount Type : Stem

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
1984JeepCherokeeALLALLALLFront1.5"
1985JeepCherokeeALLALLALLFront1.5"
1986JeepCherokeeALLALLALLFront1.5"
1986JeepComancheALLALLALLFront1.5"
1987JeepComancheALLALLALLFront1.5"
1987JeepCherokeeALLALLALLFront1.5"
1988JeepComancheALLALLALLFront1.5"
1988JeepCherokeeALLALLALLFront1.5"
1989JeepComancheALLALLALLFront1.5"
1989JeepCherokeeALLALLALLFront1.5"
1990JeepComancheALLALLALLFront1.5"
1990JeepCherokeeALLALLALLFront1.5"
1991JeepComancheALLALLALLFront1.5"
1991JeepCherokeeALLALLALLFront1.5"
1992JeepCherokeeALLALLALLFront1.5"
1992JeepComancheALLALLALLFront1.5"
1993JeepGrand CherokeeALLALLALLFront1.5"
1993JeepCherokeeALLALLALLFront1.5"
1994JeepCherokeeALLALLALLFront1.5"
1994JeepGrand CherokeeALLALLALLFront1.5"
1995JeepGrand CherokeeALLALLALLFront1.5"
1995JeepCherokeeALLALLALLFront1.5"
1996JeepCherokeeALLALLALLFront1.5"
1996JeepGrand CherokeeALLALLALLFront1.5"
1997JeepCherokeeALLALLALLFront1.5"
1997JeepWranglerALLALLALLFront2"
1997JeepGrand CherokeeALLALLALLFront1.5"
1998JeepWranglerALLALLALLFront2"
1998JeepGrand CherokeeALLALLALLFront1.5"
1998JeepCherokeeALLALLALLFront1.5"
1999JeepCherokeeALLALLALLFront1.5"
1999JeepWranglerALLALLALLFront2"
1999JeepGrand CherokeeALLALLALLFront1.5"
2000JeepCherokeeALLALLALLFront1.5"
2000JeepGrand CherokeeALLALLALLFront1.5"
2000JeepWranglerALLALLALLFront2"
2001JeepGrand CherokeeALLALLALLFront1.5"
2001JeepCherokeeALLALLALLFront1.5"
2001JeepWranglerALLALLALLFront2"
2002JeepWranglerALLALLALLFront2"
2002JeepGrand CherokeeALLALLALLFront1.5"
2003JeepWranglerALLALLALLFront2"
2003JeepGrand CherokeeALLALLALLFront1.5"
2004JeepWranglerALLALLALLFront2"
2004JeepGrand CherokeeALLALLALLFront1.5"
2005JeepWranglerALLALLALLFront2"
2006JeepWranglerALLALLALLFront2"

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
  • W3.0000” x H3.0000” x L20.0000”
  • Free Ground Shipping | Exclusions Apply*
