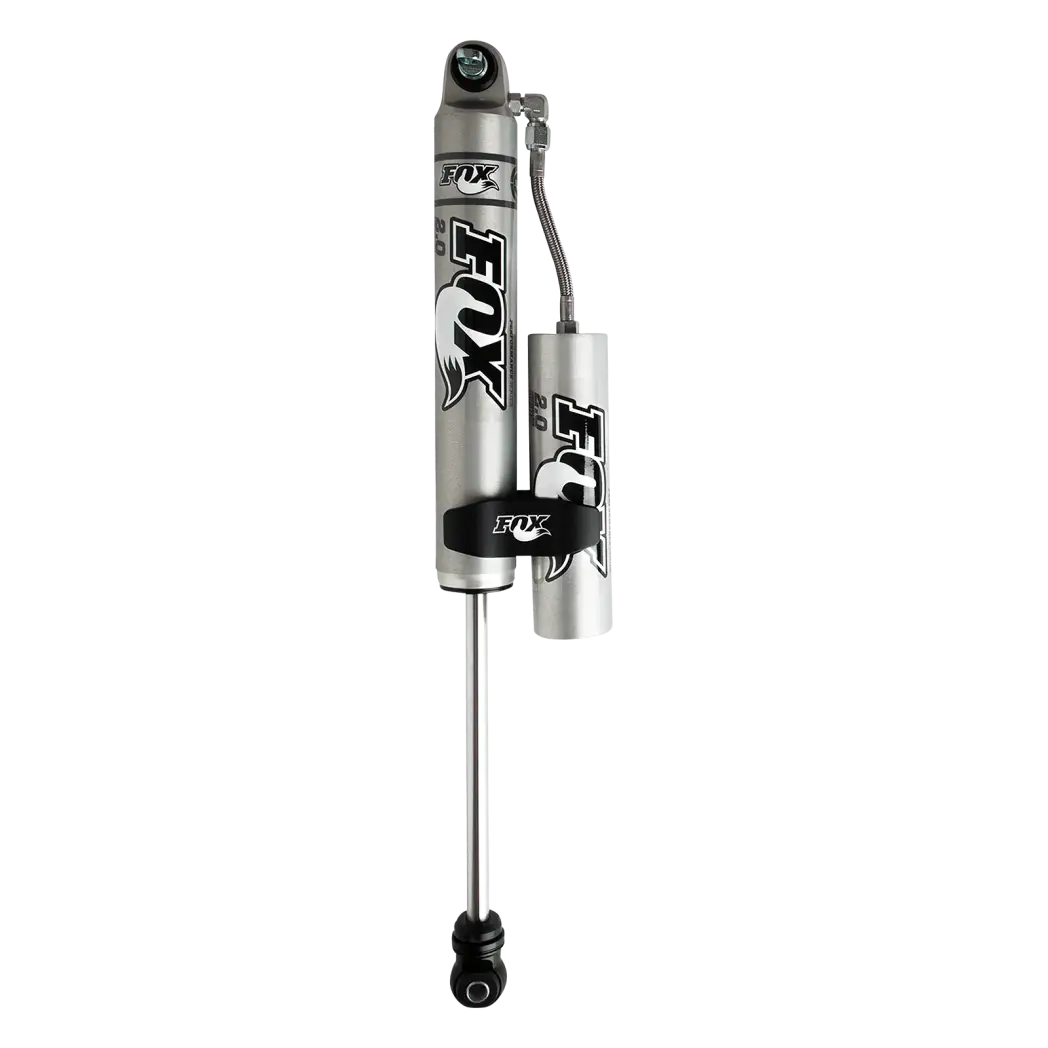

FOX98524016 | BDS Suspension Fox 2.0 Rear Shock With Reservoir For Jeep Wrangler JK | Performance Series | 1.5-3.5 Inch Lift

For 2007-2018 Jeep Wrangler JK

FOX98524016
Pricing: $505.01
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the on-road comfort and off-road control of your 2007-2018 Jeep Wrangler JK to FOX Performance Series 2.0 Remote Reservoir rear shocks. Designed to fit a 1.5 to 3.5-inch lift suspension kit. The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package.

The external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • External remote reservoir design w/ billet mounting clamp

Installation

Est. Install Time :

1 hr

Difficulty Level :

Easy

Specification

  • Adjustable Damping : No
  • Compressed Length : 14.9
  • Extended Length : 24.52
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Code : Eyelet
  • Lower Mount Type : Eyelet
  • Position : Rear
  • Shaft Diameter : 5/8"
  • Travel Length : 9.62
  • Type : Smooth Body IFP
  • Upper Mount Code : BP4
  • Upper Mount Type : Bar Pin

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007JeepWranglerALLALLALLRear3.5"
2008JeepWranglerALLALLALLRear3.5"
2009JeepWranglerALLALLALLRear3.5"
2010JeepWranglerALLALLALLRear3.5"
2011JeepWranglerALLALLALLRear3.5"
2012JeepWranglerALLALLALLRear3.5"
2013JeepWranglerALLALLALLRear3.5"
2014JeepWranglerALLALLALLRear3.5"
2015JeepWranglerALLALLALLRear3.5"
2016JeepWranglerALLALLALLRear3.5"
2017JeepWranglerALLALLALLRear3.5"
2018JeepWrangler JKALLALLALLRear3.5"

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 8.0 lbs.
  • W3.0000” x H3.0000” x L20.0000”
  • Free Ground Shipping | Exclusions Apply*
