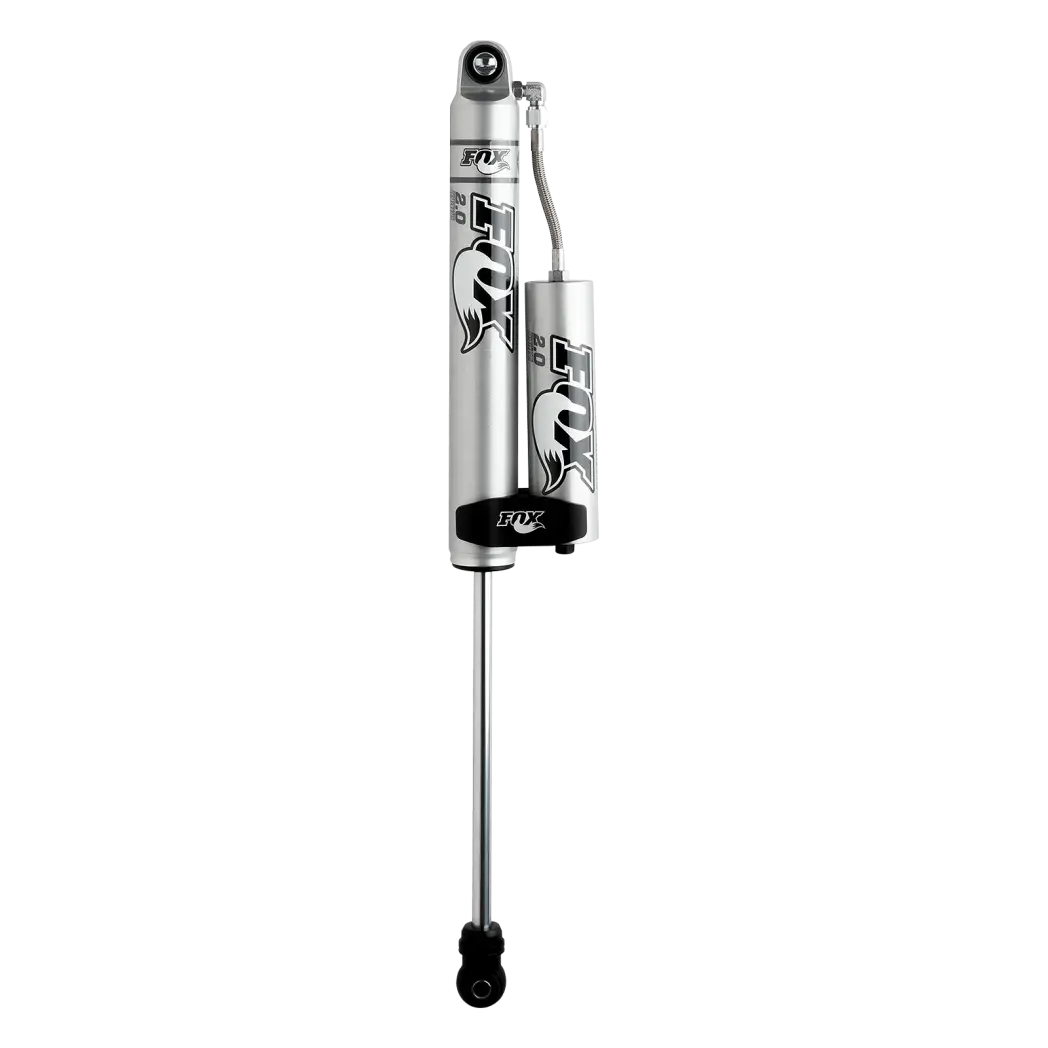

FOX98524012 | BDS Suspension Fox 2.0 Rear Shock With Reservoir For Jeep Wrangler JK | Performance Series | 4-6 Inch Lift

For 2007-2018 Jeep Wrangler JK

FOX98524012
Pricing: $505.01
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the on-road comfort and off-road control of your 2007-2018 Jeep Wrangler JK to FOX Performance Series 2.0 Remote Reservoir rear shocks. Designed to fit a 4 to 6-inch lift suspension kit. The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package.

The external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • External remote reservoir design w/ billet mounting clamp

Installation

Est. Install Time :

1 hr

Difficulty Level :

Easy

Specification

  • Adjustable Damping : No
  • Compressed Length : 16.9
  • Extended Length : 28.52
  • Finish : Clear-anodized
  • Gas Charged : No
  • Lower Mount Code : EB1
  • Lower Mount Type : Eyelet
  • Position : Rear
  • Shaft Diameter : 5/8"
  • Travel Length : 11.62
  • Type : Smooth Body IFP
  • Upper Mount Code : BP4
  • Upper Mount Type : Bar Pin

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007JeepWranglerALLALLALLRear6"
2008JeepWranglerALLALLALLRear6"
2009JeepWranglerALLALLALLRear6"
2010JeepWranglerALLALLALLRear6"
2011JeepWranglerALLALLALLRear6"
2012JeepWranglerALLALLALLRear6"
2013JeepWranglerALLALLALLRear6"
2014JeepWranglerALLALLALLRear6"
2015JeepWranglerALLALLALLRear6"
2016JeepWranglerALLALLALLRear6"
2017JeepWranglerALLALLALLRear6"
2018JeepWrangler JKALLALLALLRear6"

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 8.0 lbs.
  • W3.0000” x H3.0000” x L20.0000”
  • Free Ground Shipping | Exclusions Apply*
