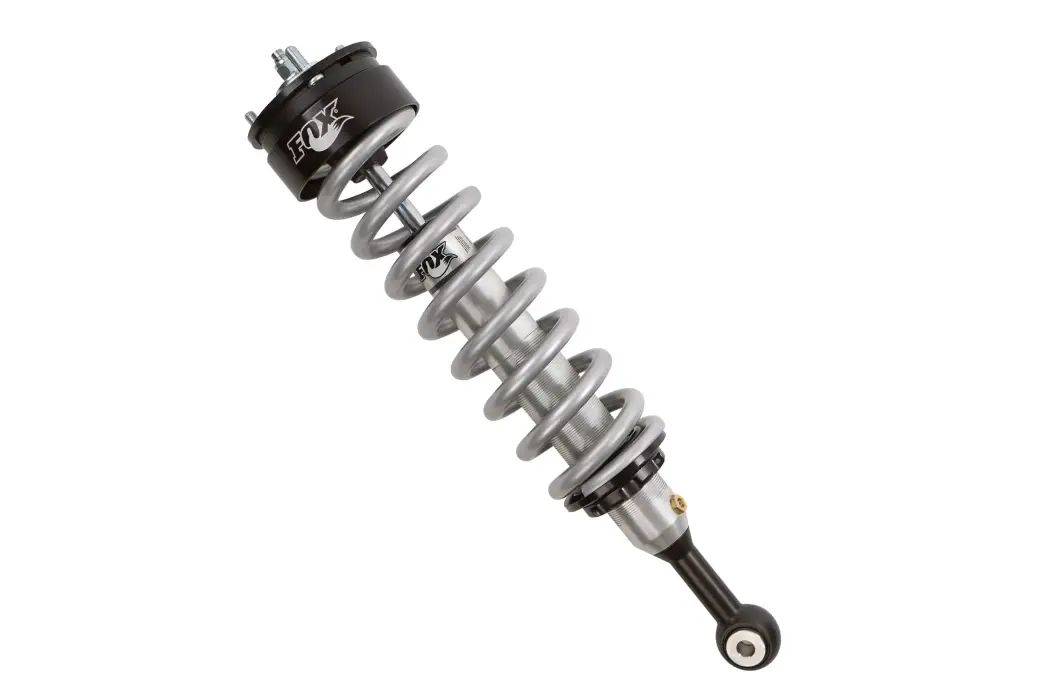

FOX98502004 | BDS Suspension Fox 2.0 IFP Coilover Shock For Toyota Tundra | Performance Series | 0-2 Inch Lift

For 2007-2021 Toyota Tundra

FOX98502004
Pricing: $869.33
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the on-road comfort and off-road control of your 2007-2021 Toyota Tundra to FOX Performance Series 2.0 Coilover IFP (internal floating piston) shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. FOX shocks bolt on with no modifications and are designed to level your truck front-to-rear. The metal impact-extruded aluminum body increases cooling capacity and resists rust. Vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

Important Notes

  1. Sold individually - order QTY 2 for a pair.

Installation

Est. Install Time :

1-2 hrs

Difficulty Level :

Moderately Easy

Specification

  • Adjustable Damping : No
  • Compressed Length : 18.4
  • Extended Length : 24.04
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Type : Eyelet
  • Position : Front
  • Shaft Diameter : 5/8"
  • Travel Length : 5.64
  • Type : Coil-Over
  • Upper Mount Type : OEM

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007ToyotaTundraALLALLALLFront2"
2008ToyotaTundraALLALLALLFront2"
2009ToyotaTundraALLALLALLFront2"
2010ToyotaTundraALLALLALLFront2"
2011ToyotaTundraALLALLALLFront2"
2012ToyotaTundraALLALLALLFront2"
2013ToyotaTundraALLALLALLFront2"
2014ToyotaTundraALLALLALLFront2"
2015ToyotaTundraALLALLALLFront2"

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 21.0 lbs.
  • W8.0000” x H8.0000” x L20.0000”
  • Free Ground Shipping | Exclusions Apply*
