FOX98302146 | BDS Suspension Fox 2.0 ATS Steering Stabilizer For Jeep Wrangler JK | 1-5/8 Inch Tie Rod | Factory Race Series
For 2007-2018 Jeep Wrangler JK
Description

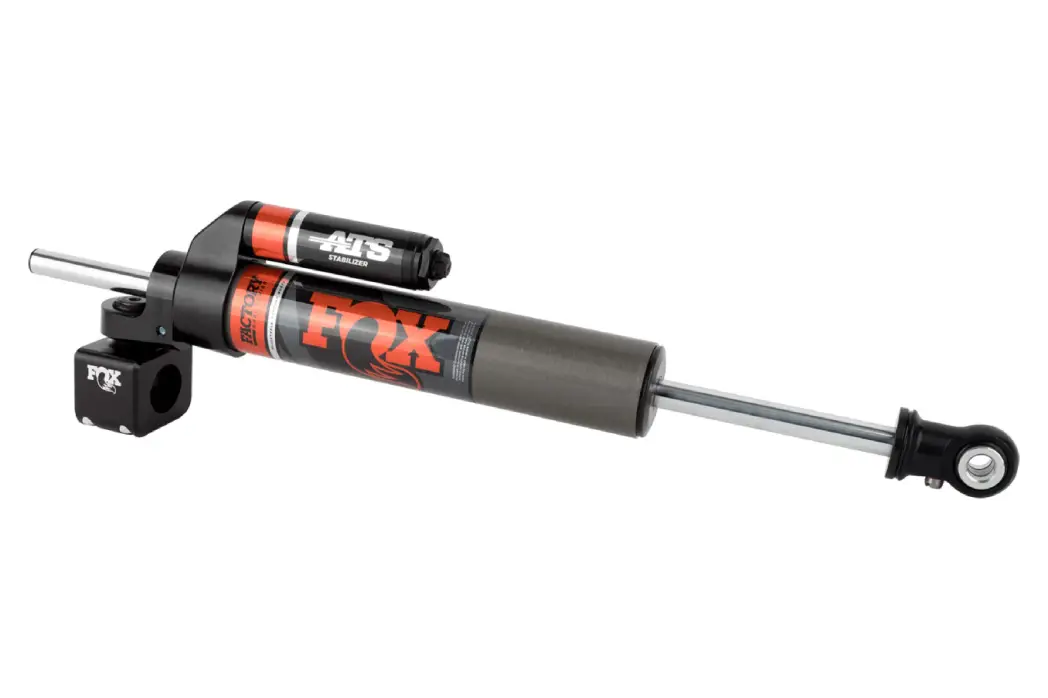

Reduce bump steer in the front end of your Jeep Wrangler JK by installing a FOX 2.0 ATS Steering Stabilizer Shock. FOX 983-02-146 2.0 ATS stabilizer provides the perfect balance of control and freedom to wheel the Jeep hard. The FOX Factory Race Series Adjustable Through Shaft (ATS) steering stabilizer offers unrivaled steering control and a striking, high-tech appearance. The technologically advanced design cancels unwanted steering forces in both directions, taking the place of two conventional opposing stabilizers. It will also respond to your input with 24 clicks of external adjustment to fine tune the feel. The integrated reservoir allows for additional fluid capacity and improves cooling during extreme use. Also included is FOX's relocating hardware that moves the steering stabilizer up and out of the way utilizing a new track bar relocation bolt and 1-5/8" tie-rod mounting clamp. The ATS represents a revolutionary breakthrough in stabilizer design.
Features & Benefits
- Adjustable Through Shaft (ATS) design cancels unwanted steering forces in both directions
- Takes the place of two conventional opposing stabilizers.
- 24 clicks of adjustability for fine tuning.
- Relocates stabilizer higher and out of the way from damage.
- Direct replacement for stock and aftermarket lifts kits.
Important Notes
- Works with JK Wranglers with 1-5/8" Tie Rod ends only.
Installation
Est. Install Time :
1 hrDifficulty Level :
Moderately EasySpecification
- Compressed Length : 14.09
- Cylinder Diameter : 2.000"
- Cylinder Material : Aluminum
- Extended Length : 22.2
- Lower Mount Type : Eyelet
- Upper Mount Type : Tie rod clamp
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2007 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2007 | Jeep | Wrangler | ALL | ALL | ALL | Front | 0" |
| 2008 | Jeep | Wrangler | ALL | ALL | ALL | Front | 0" |
| 2008 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2009 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2009 | Jeep | Wrangler | ALL | ALL | ALL | Front | 0" |
| 2010 | Jeep | Wrangler | ALL | ALL | ALL | Front | 0" |
| 2010 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2012 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2012 | Jeep | Wrangler | ALL | ALL | ALL | Front | 0" |
| 2013 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2013 | Jeep | Wrangler | ALL | ALL | ALL | Front | 0" |
| 2014 | Jeep | Wrangler | ALL | ALL | ALL | Front | 0" |
| 2014 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2016 | Jeep | Wrangler | ALL | ALL | ALL | Front | 0" |
| 2016 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2017 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2017 | Jeep | Wrangler | ALL | ALL | ALL | Front | 0" |
| 2018 | Jeep | Wrangler | ALL | ALL | ALL | ||
| 2018 | Jeep | Wrangler JK | ALL | ALL | ALL | Front | 0" |
Details
- FOX98302146
- FOX98302146
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 7.0 lbs.
- W8.0000” x H8.0000” x L20.0000”
- Free Ground Shipping | Exclusions Apply*
