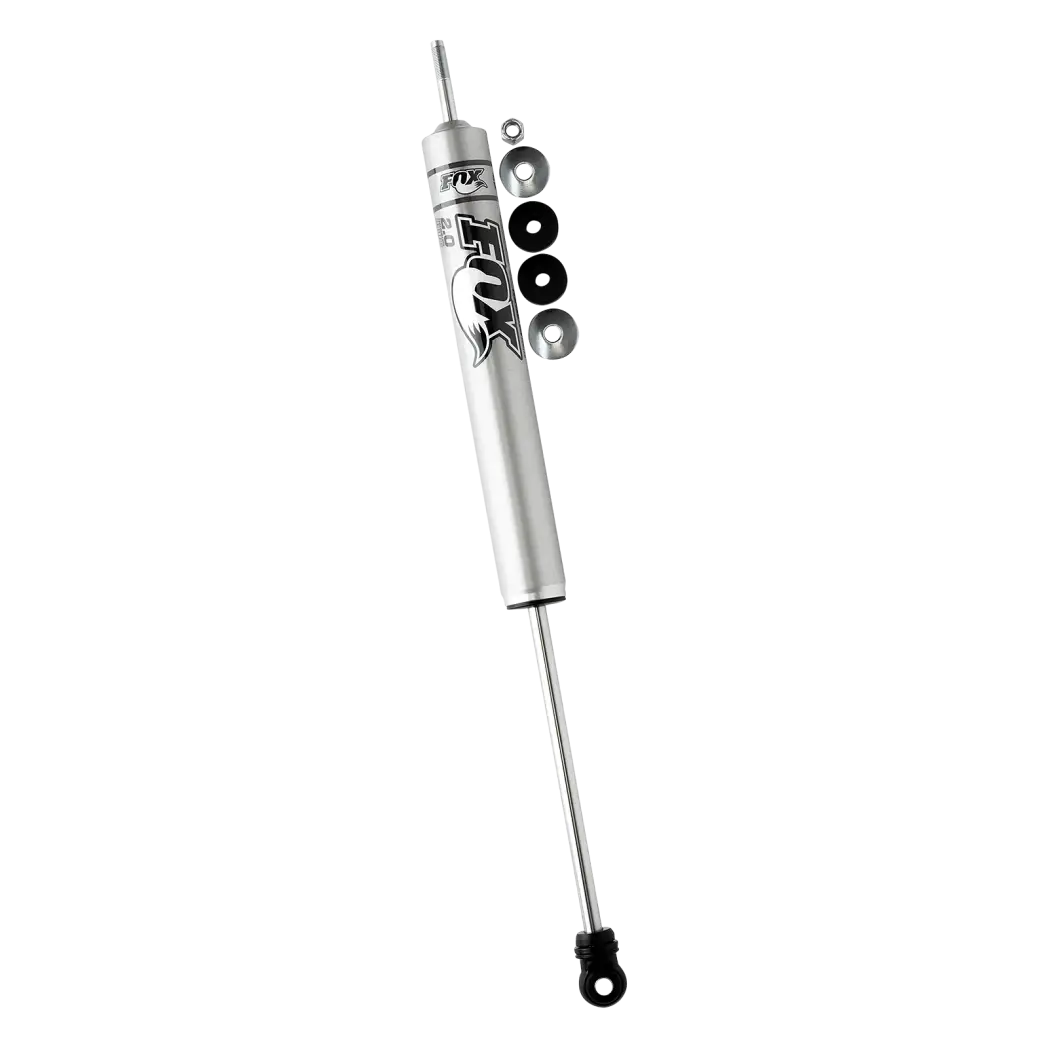

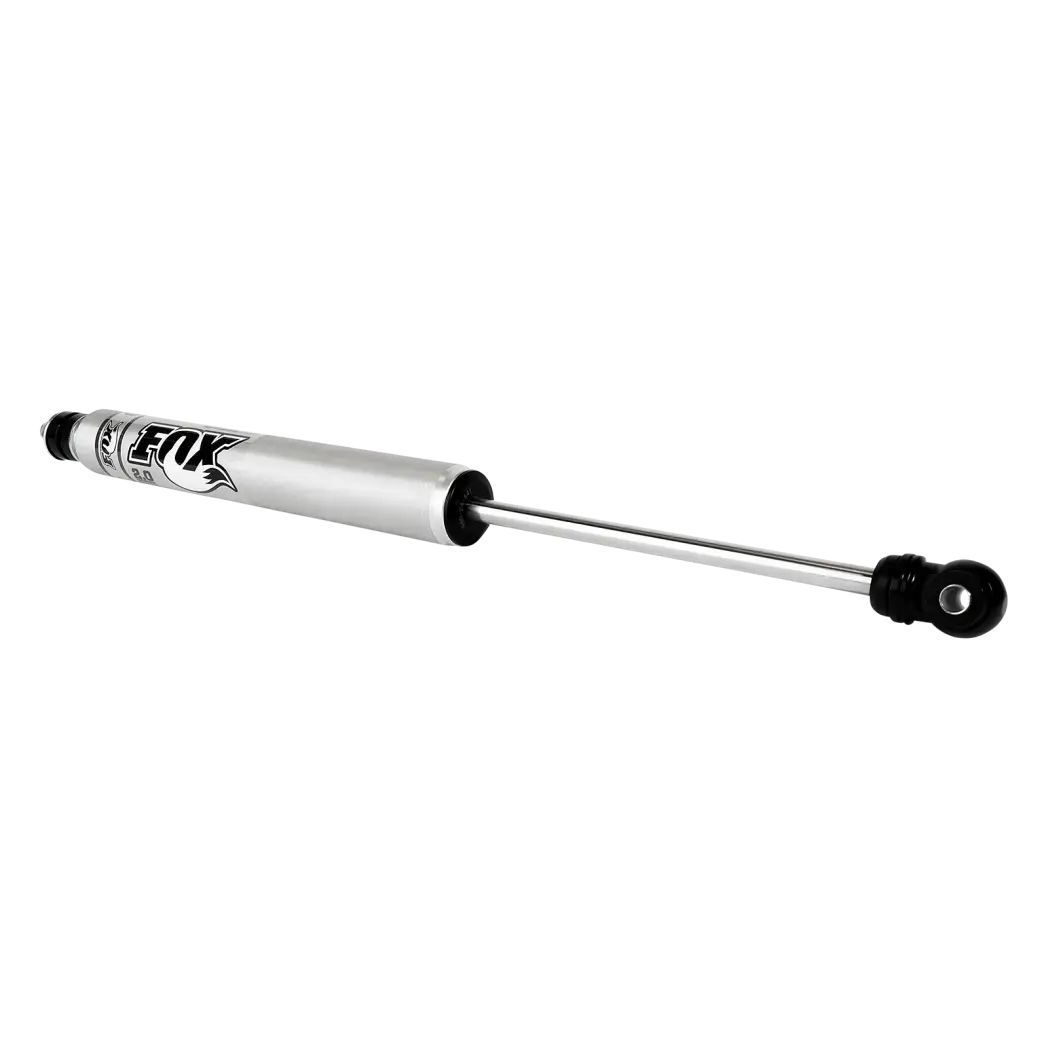

FOX98224700 | BDS Suspension Fox 2.0 IFP Shock For Ford / Ram / Toyota | Performance Series | 25.65 x 16.05 x 2 - S50 / EB1

For 2005-2026 Ford F-250 / F-350 Super Duty / 2019-2022 Ram 1500 / 2011-2022 Ram 2500 / 2013-2022 Ram 3500 / 2007-2021 Toyota Tundra

FOX98224700
Pricing: $289.73
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Upgrade the on-road comfort and off-road control of your 2000-2005 Ford Excursion 4WD to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 4-inch lift suspension kit. The mono-tube design’s internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Features & Benefits

  • 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Internal IFP mono-tube reservoir design

Specification

  • Adjustable Damping : No
  • Compressed Length : 18.45
  • Extended Length : 30.05
  • Finish : Clear-anodized
  • Gas Charged : Yes
  • Lower Mount Code : EB1
  • Lower Mount Type : Eyelet
  • Shaft Diameter : 5_8
  • Travel Length : 11.6
  • Type : Smooth Body
  • Upper Mount Code : BP8
  • Upper Mount Type : Bar Pin

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
1994DodgeRam 2500ALL4WDALLFront2"
1994DodgeRam 1500Base4WDALLFront3"
1995DodgeRam 1500Lujo4WDALLFront3"
1995DodgeRam 1500Custom4WDALLFront3"
1995DodgeRam 2500ALL4WDALLFront2"
1995DodgeRam 1500Base4WDALLFront3"
1996DodgeRam 2500ALL4WDALLFront2"
1996DodgeRam 1500Base4WDALLFront3"
1997DodgeRam 1500ST4WDALLFront3"
1997DodgeRam 2500Custom4WDALLFront2"
1997DodgeRam 1500Custom4WDALLFront3"
1997DodgeRam 1500Laramie4WDALLFront3"
1997DodgeRam 1500LT4WDALLFront3"
1997DodgeRam 2500Runner4WDALLFront2"
1997DodgeRam 2500Base4WDALLFront2"
1997DodgeRam 1500Sport4WDALLFront3"
1997DodgeRam 2500LujoALLALLFront2"
1998DodgeRam 1500Custom4WDALLFront3"
1998DodgeRam 2500Custom4WDALLFront2"
1998DodgeRam 2500Base4WDALLFront2"
1998DodgeRam 2500LujoALLALLFront2"
1998DodgeRam 1500Laramie4WDALLFront3"
1998DodgeRam 1500Sport4WDALLFront3"
1998DodgeRam 1500ST4WDALLFront3"
1999DodgeRam 1500ST4WDALLFront3"
1999DodgeRam 1500Sport4WDALLFront3"
1999DodgeRam 1500Custom4WDALLFront3"
1999DodgeRam 1500Laramie4WDALLFront3"
1999DodgeRam 2500ALL4WDALLFront2"
1999DodgeRam 1500SLT4WDALLFront3"
2000DodgeRam 1500SLT4WDALLFront3"
2000DodgeRam 1500Sport4WDALLFront3"
2000DodgeRam 2500ALL4WDALLFront2"
2000DodgeRam 1500Custom4WDALLFront3"
2000DodgeRam 1500ST4WDALLFront3"
2000DodgeRam 1500Laramie4WDALLFront3"
2001DodgeRam 2500ALL4WDALLFront2"
2001DodgeRam 1500Sport4WDALLFront3"
2001DodgeRam 1500Laramie4WDALLFront3"
2001DodgeRam 1500ST4WDALLFront3"
2001DodgeRam 1500SLT4WDALLFront3"
2002DodgeRam 2500ALL4WDALLFront2"
2003DodgeRam 2500ALL4WDALLFront3"
2004DodgeRam 2500ALL4WDALLFront3"
2005DodgeRam 2500ST4WDALLFront3"
2005FordF-350 Super DutyALL4WDALLFront4"
2005DodgeRam 2500Laramie4WDALLFront3"
2005DodgeRam 2500SLT4WDALLFront3"
2005FordF-250 Super DutyALL4WDALLFront4"
2006FordF-250 Super DutyALL4WDALLFront4"
2006DodgeRam 2500Power WagonALLALLFront3"
2006DodgeRam 2500Sport4WDALLFront3"
2006DodgeRam 2500Laramie4WDALLFront3"
2006DodgeRam 2500TRX4ALLALLFront3"
2006DodgeRam 2500SLT Sport4WDALLFront3"
2006DodgeRam 2500ST4WDALLFront3"
2006FordF-350 Super DutyALL4WDALLFront4"
2006DodgeRam 2500SLT4WDALLFront3"
2007FordF-250 Super DutyALL4WDALLFront4"
2007FordF-350 Super DutyALL4WDALLFront4"
2007DodgeRam 2500ALL4WDALLFront3"
2007ToyotaTundraALLALLALLRear0"
2008DodgeRam 2500ALL4WDALLFront3"
2008FordF-350 Super DutyALL4WDALLFront4"
2008ToyotaTundraALLALLALLRear0"
2008FordF-250 Super DutyALL4WDALLFront4"
2009ToyotaTundraALLALLALLRear0"
2009FordF-350 Super DutyALL4WDALLFront4"
2009FordF-250 Super DutyALL4WDALLFront4"
2010ToyotaTundraALLALLALLRear0"
2010FordF-350 Super DutyALL4WDALLFront4"
2010FordF-250 Super DutyALL4WDALLFront4"
2011FordF-250 Super DutyALL4WDALLFront4"
2011ToyotaTundraALLALLALLRear0"
2011Ram2500ALL4WDALLFront3"
2011FordF-350 Super DutyALL4WDALLFront4"
2012Ram2500ST4WDALLFront3"
2012Ram2500SLT4WDALLFront3"
2012Ram2500Outdoorsman4WDALLFront3"
2012FordF-350 Super DutyALL4WDALLFront4"
2012Ram2500Laramie4WDALLFront3"
2012Ram2500R/T4WDALLFront3"
2012Ram2500Laramie Longhorn4WDALLFront3"
2012FordF-250 Super DutyALL4WDALLFront4"
2012ToyotaTundraALLALLALLRear0"
2012Ram2500Power WagonALLALLFront3"
2013Ram2500Tradesman4WDALLFront3"
2013Ram2500Big Horn4WDALLFront3"
2013Ram2500SLT4WDALLFront3"
2013Ram3500ALL4WDGASFront4"
2013FordF-350 Super DutyALL4WDALLFront4"
2013Ram2500Power WagonALLALLFront3"
2013Ram2500ST4WDALLFront3"
2013ToyotaTundraALLALLALLRear0"
2013Ram3500ALL4WDDIESELFront3"
2013Ram2500OutdoorsmanALLALLFront3"
2013Ram2500Lone Star4WDALLFront3"
2013Ram2500R/T4WDALLFront3"
2013Ram2500SXT4WDALLFront3"
2013FordF-250 Super DutyALL4WDALLFront4"
2013Ram2500Laramie Longhorn4WDALLFront3"
2013Ram2500Laramie4WDALLFront3"
2014Ram2500Big Horn4WDDIESELFront3"
2014Ram2500ST4WDDIESELFront3"
2014Ram2500R/T4WDALLFront4"
2014Ram2500Lone Star4WDDIESELFront3"
2014Ram2500Laramie4WDDIESELFront3"
2014Ram2500ST4WDGASFront4"
2014ToyotaTundraALLALLALLRear0"
2014Ram2500Laramie Limited4WDDIESELFront3"
2014Ram2500SLT4WDDIESELFront3"
2014Ram2500Power WagonALLALLFront4"
2014Ram2500Big Horn4WDGASFront4"
2014Ram2500Laramie Longhorn4WDGASFront4"
2014Ram3500ALL4WDGASFront4"
2014FordF-350 Super DutyALL4WDALLFront4"
2014Ram2500Laramie Limited4WDGASFront4"
2014Ram2500Tradesman4WDDIESELFront3"
2014Ram2500SLT4WDGASFront4"
2014Ram2500Lone Star4WDGASFront4"
2014Ram2500OutdoorsmanALLGASFront4"
2014Ram2500Tradesman4WDGASFront4"
2014Ram2500OutdoorsmanALLDIESELFront3"
2014Ram3500ALL4WDDIESELFront3"
2014FordF-250 Super DutyALL4WDALLFront4"
2014Ram2500Laramie4WDGASFront4"
2014Ram2500Laramie Longhorn4WDDIESELFront3"
2015FordF-350 Super DutyALL4WDALLFront4"
2015Ram2500OutdoorsmanALLDIESELFront3"
2015Ram2500ALL4WDGASFront4"
2015Ram2500SLT4WDDIESELFront3"
2015Ram3500ALL4WDGASFront4"
2015Ram2500Lone Star4WDDIESELFront3"
2015Ram2500Big Horn4WDDIESELFront3"
2015Ram2500Laramie Longhorn4WDDIESELFront3"
2015Ram2500Laramie Limited4WDDIESELFront3"
2015Ram2500Tradesman4WDDIESELFront3"
2015Ram2500ST4WDDIESELFront3"
2015FordF-250 Super DutyALL4WDALLFront4"
2015Ram2500Laramie4WDDIESELFront3"
2015ToyotaTundraALLALLALLRear0"
2015Ram3500ALL4WDDIESELFront3"
2016Ram2500Tradesman4WDDIESELFront3"
2016FordF-250 Super DutyALL4WDALLFront4"
2016Ram2500Laramie Limited4WDDIESELFront3"
2016Ram2500SLT4WDDIESELFront3"
2016Ram2500Big Horn4WDDIESELFront3"
2016Ram3500ALL4WDDIESELFront3"
2016Ram2500Laramie Longhorn4WDDIESELFront3"
2016Ram2500Laramie4WDDIESELFront3"
2016Ram2500Limited4WDDIESELFront3"
2016ToyotaTundraALLALLALLRear0"
2016FordF-350 Super DutyALL4WDALLFront4"
2016Ram2500OutdoorsmanALLDIESELFront3"
2016Ram3500ALL4WDGASFront4"
2016Ram2500ALL4WDGASFront4"
2016Ram2500ST4WDDIESELFront3"
2017FordF-250 Super DutyALL4WDALLFront4"
2017FordF-350 Super DutyXLT4WDALLFront4"
2017Ram2500SLT4WDDIESELFront3"
2017Ram2500OutdoorsmanALLDIESELFront3"
2017Ram2500Big Horn4WDDIESELFront3"
2017FordF-350 Super DutyLariat4WDALLFront4"
2017Ram2500Laramie4WDDIESELFront3"
2017Ram2500Tradesman4WDDIESELFront3"
2017Ram2500Limited4WDDIESELFront3"
2017Ram2500Laramie Longhorn4WDDIESELFront3"
2017Ram3500ALL4WDDIESELFront3"
2017FordF-350 Super DutyKing Ranch4WDALLFront4"
2017Ram2500Laramie Limited4WDDIESELFront3"
2017FordF-350 Super DutyXL4WDALLFront4"
2017Ram2500ST4WDDIESELFront3"
2017Ram2500ALL4WDGASFront4"
2017Ram3500ALL4WDGASFront4"
2017ToyotaTundraALLALLALLRear0"
2017FordF-350 Super DutyPlatinum4WDALLFront4"
2018Ram2500Big Horn4WDDIESELFront3"
2018FordF-350 Super DutyXLT4WDALLFront4"
2018Ram2500Tradesman4WDDIESELFront3"
2018Ram3500ALL4WDGASFront4"
2018Ram2500ALL4WDGASFront4"
2018FordF-350 Super DutyKing Ranch4WDALLFront4"
2018Ram3500ALL4WDDIESELFront3"
2018Ram2500Limited4WDDIESELFront3"
2018ToyotaTundraALLALLALLRear0"
2018FordF-350 Super DutyXL4WDALLFront4"
2018Ram2500Laramie Longhorn4WDDIESELFront3"
2018Ram2500Laramie4WDDIESELFront3"
2018Ram2500Laramie Limited4WDDIESELFront3"
2018FordF-350 Super DutyLimitedALLALLFront4"
2018FordF-350 Super DutyLariat4WDALLFront4"
2018FordF-350 Super DutyPlatinum4WDALLFront4"
2018Ram2500ST4WDDIESELFront3"
2018Ram2500SLT4WDDIESELFront3"
2018Ram2500OutdoorsmanALLDIESELFront3"
2018FordF-250 Super DutyALL4WDALLFront4"
2019FordF-350 Super DutyLariat4WDALLFront4"
2019FordF-250 Super DutyALL4WDALLFront4"
2019FordF-350 Super DutyXL4WDALLFront4"
2019Ram1500SXT4WDALLRear2"
2019Ram1500ST4WDALLRear2"
2019Ram1500Limited4WDALLRear2"
2019Ram3500ALL4WDDIESELFront3"
2019Ram2500ALL4WDGASFront4"
2019FordF-350 Super DutyXLT4WDALLFront4"
2019Ram1500Tradesman4WDALLRear2"
2019Ram1500Sport4WDALLRear2"
2019Ram3500ALL4WDGASFront4"
2019Ram2500Limited4WDDIESELFront3"
2019Ram1500Rebel4WDALLRear2"
2019ToyotaTundraALLALLALLRear0"
2019Ram2500Lone Star4WDDIESELFront3"
2019Ram1500SLT4WDALLRear2"
2019Ram2500Laramie Limited4WDDIESELFront3"
2019Ram2500Laramie4WDDIESELFront3"
2019FordF-350 Super DutyPlatinum4WDALLFront4"
2019FordF-350 Super DutyKing Ranch4WDALLFront4"
2019Ram2500Big Horn4WDDIESELFront3"
2019Ram2500Laramie Longhorn4WDDIESELFront3"
2019Ram2500Tradesman4WDDIESELFront3"
2019FordF-350 Super DutyLimitedALLALLFront4"
2019Ram1500Laramie SportALLALLRear2"
2019Ram1500Laramie4WDALLRear2"
2019Ram1500Lone Star4WDALLRear2"
2019Ram1500Big Horn4WDALLRear2"
2019Ram1500LonghornALLALLRear2"
2019Ram1500Laramie Longhorn4WDALLRear2"
2020Ram1500Lone Star4WDALLRear2"
2020Ram2500Laramie Longhorn4WDDIESELFront3"
2020Ram1500Rebel4WDALLRear2"
2020Ram1500Laramie SportALLALLRear2"
2020Ram1500Special ServiceALLALLRear2"
2020Ram2500Tradesman4WDDIESELFront3"
2020Ram1500LonghornALLALLRear2"
2020FordF-350 Super DutyKing Ranch4WDALLFront4"
2020Ram2500Limited4WDDIESELFront3"
2020Ram1500SLT4WDALLRear2"
2020FordF-350 Super DutyXL4WDALLFront4"
2020Ram3500ALL4WDGASFront4"
2020Ram1500Big Horn4WDALLRear2"
2020Ram1500Tradesman4WDALLRear2"
2020FordF-350 Super DutyLimitedALLALLFront4"
2020Ram2500ALL4WDGASFront4"
2020Ram2500Lone Star4WDDIESELFront3"
2020Ram2500Laramie4WDDIESELFront3"
2020Ram2500Laramie Limited4WDDIESELFront3"
2020Ram1500Limited4WDALLRear2"
2020FordF-250 Super DutyALL4WDALLFront4"
2020FordF-350 Super DutyXLT4WDALLFront4"
2020Ram1500Laramie Longhorn4WDALLRear2"
2020Ram2500Big Horn4WDDIESELFront3"
2020ToyotaTundraALLALLALLRear0"
2020FordF-350 Super DutyLariat4WDALLFront4"
2020Ram1500Hemi SportALLALLRear2"
2020Ram1500Laramie4WDALLRear2"
2020Ram3500ALL4WDDIESELFront3"
2020Ram1500Sport4WDALLRear2"
2020FordF-350 Super DutyPlatinum4WDALLFront4"
2021Ram2500Laramie4WDDIESELFront3"
2021Ram2500Lone Star4WDDIESELFront3"
2021Ram2500Limited4WDDIESELFront3"
2021Ram1500Laramie Longhorn4WDALLRear2"
2021Ram1500Sport4WDALLRear2"
2021ToyotaTundraALLALLALLRear0"
2021Ram1500Tradesman4WDALLRear2"
2021FordF-350 Super DutyXLT4WDALLFront4"
2021Ram1500Laramie SportALLALLRear2"
2021Ram1500Limited4WDALLRear2"
2021Ram1500Hemi SportALLALLRear2"
2021FordF-350 Super DutyKing Ranch4WDALLFront4"
2021Ram2500Big Horn4WDDIESELFront3"
2021Ram1500Lone Star4WDALLRear2"
2021FordF-350 Super DutyXL4WDALLFront4"
2021Ram3500ALL4WDDIESELFront3"
2021Ram2500ALL4WDGASFront4"
2021Ram2500Laramie Longhorn4WDDIESELFront3"
2021Ram2500Tradesman4WDDIESELFront3"
2021FordF-250 Super DutyALL4WDALLFront4"
2021FordF-350 Super DutyPlatinum4WDALLFront4"
2021Ram2500Limited Longhorn4WDDIESELFront3"
2021FordF-350 Super DutyLimitedALLALLFront4"
2021Ram1500Laramie4WDALLRear2"
2021Ram1500Rebel4WDALLRear2"
2021Ram1500SLT4WDALLRear2"
2021Ram1500Big Horn4WDALLRear2"
2021Ram1500Special ServiceALLALLRear2"
2021Ram1500Limited Longhorn4WDALLRear2"
2021Ram1500Longhorn4WDALLRear2"
2021FordF-350 Super DutyLariat4WDALLFront4"
2021Ram3500ALL4WDGASFront4"
2022Ram1500Laramie SportALLALLRear2"
2022Ram1500Laramie4WDALLRear2"
2022FordF-350 Super DutyXLT4WDALLFront4"
2022Ram2500Tradesman4WDDIESELFront3"
2022Ram2500Laramie4WDDIESELFront3"
2022Ram2500Big Horn4WDDIESELFront3"
2022FordF-350 Super DutyLimitedALLALLFront4"
2022Ram2500Limited4WDDIESELFront3"
2022Ram3500ALL4WDGASFront4"
2022Ram2500ALL4WDGASFront4"
2022FordF-250 Super DutyALL4WDALLFront4"
2022FordF-350 Super DutyXL4WDALLFront4"
2022Ram1500Hemi SportALLALLRear2"
2022Ram1500LonghornALLALLRear2"
2022FordF-350 Super DutyKing Ranch4WDALLFront4"
2022Ram1500SLT4WDALLRear2"
2022Ram2500Lone Star4WDDIESELFront3"
2022Ram2500Limited Longhorn4WDDIESELFront3"
2022FordF-350 Super DutyLariat4WDALLFront4"
2022Ram1500Limited4WDALLRear2"
2022Ram1500Big Horn4WDALLRear2"
2022FordF-350 Super DutyPlatinum4WDALLFront4"
2022Ram1500Tradesman4WDALLRear2"
2022Ram1500Limited Longhorn4WDALLRear2"
2022Ram3500ALL4WDDIESELFront3"
2022Ram1500Lone Star4WDALLRear2"
2022Ram1500Rebel4WDALLRear2"
2022Ram1500SportALLALLRear2"
2023FordF-350 Super DutyXLT4WDALLFront
2023FordF-350 Super DutyKing RanchALLALLFront
2023FordF-250 Super DutyALL4WDALLFront
2023FordF-350 Super DutyLariat4WDALLFront
2023FordF-350 Super DutyLimitedALLALLFront
2023FordF-350 Super DutyXL4WDALLFront
2023FordF-350 Super DutyPlatinumALLALLFront
2024FordF-350 Super DutyLimitedALLALLFront
2024FordF-350 Super DutyLariat4WDALLFront
2024FordF-350 Super DutyXLT4WDALLFront
2024FordF-350 Super DutyPlatinumALLALLFront
2024FordF-350 Super DutyXL4WDALLFront
2024FordF-350 Super DutyKing RanchALLALLFront
2024FordF-250 Super DutyALL4WDALLFront
2025FordF-350 Super DutyXLT4WDALLFront
2025FordF-350 Super DutyPlatinumALLALLFront
2025FordF-350 Super DutyXL4WDALLFront
2025FordF-250 Super DutyXLTALLALLFront
2025FordF-250 Super DutyPlatinumALLALLFront
2025FordF-250 Super DutyKing RanchALLALLFront
2025FordF-250 Super DutyXL4WDALLFront
2025FordF-350 Super DutyLariat4WDALLFront
2025FordF-250 Super DutyLariatALLALLFront
2025FordF-350 Super DutyKing RanchALLALLFront
2026FordF-350 Super DutyXLT4WDALLN/A
2026FordF-250 Super DutyXL4WDALLN/A
2026FordF-350 Super DutyKing RanchALLALLN/A
2026FordF-250 Super DutyKing RanchALLALLN/A
2026FordF-250 Super DutyXLTALLALLN/A
2026FordF-350 Super DutyLariat4WDALLN/A
2026FordF-250 Super DutyLariatALLALLN/A
2026FordF-350 Super DutyXL4WDALLN/A
2026FordF-250 Super DutyPlatinumALLALLN/A
2026FordF-350 Super DutyPlatinumALLALLN/A

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W3.0000” x H3.0000” x L20.0000”
  • Free Ground Shipping | Exclusions Apply*
