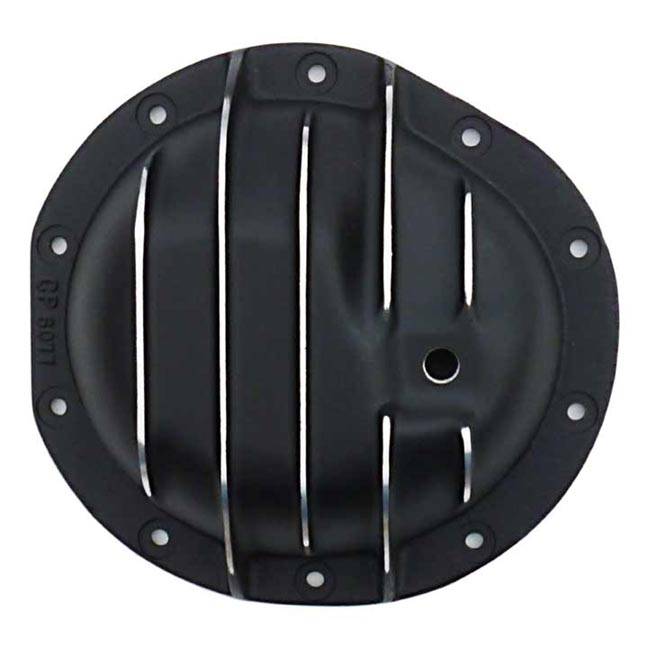

6077-B | PML Cover GM Front 8.5 Differential Cover For Chevrolet Blazer, Suburban, C10, K10, C20, K20, C30 And K30 | Black Powder Coated Finish

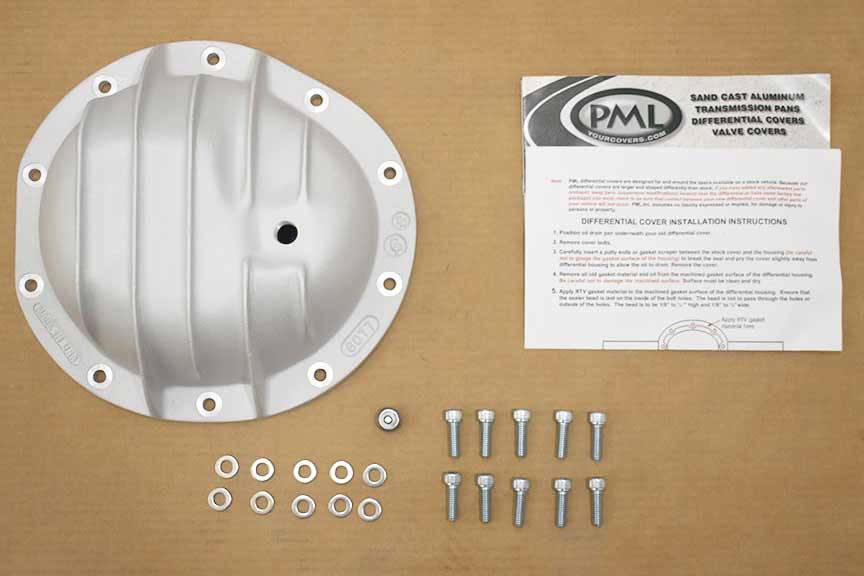

Cover includes fill/level check hole plug and mounting hardware.

Volume:

0.5 qt. over stock, approximately

Dimensions:

Check for clearance with wheels at the stops and at the limits of the suspension.

Number of Bolts:

10 bolts

PML GM 8.5 inch ring gear front differential cover adds function and old school veritcal fins for classic work horse 1970s and 1980s 4x4 GMC and Chevy trucks and SUVs.

Benefits

• Extra capacity
• Fins for heat dissipation and classic styling
• Heavy duty cast aluminum construction
• Machined gasket flange for a secure seal to the housing

This PML Dana 50/60 front end cover is designed for older Ford Super Duty trucks. This cover clears the ring gear and the steering linkage on most older Ford truck applications. Other trucks and SUVs can also use this cover.

Steering Linkage Clearance Concerns: For trucks about 1999 and newer, the steering linkage can cause a clearance issue with this cover. Trucks that are lifted or modified may not have any clearance issues. PML designed a cover to clear the linkage. See Part Number 11169. Older model trucks (1966 to about 1999), cannot use Part Number 11169 because it is too shallow to clear the gears on older trucks.

Vent: If your stock cover has a vent fitting (instead of having a vent on the differential housing), this differential cover cannot be used. The vent is common on some Dodge trucks.

Variations: Configurations vary so please check carefully. Some F–250 trucks have independent front suspension and cannot use this cover. Some Dodge Ram 2500 and 3500 trucks can have a track bar and do not have clearance for a larger cover. Be sure to check for clearance with the steering all the way at stops.

Rear Cover: For a Ford Sterling 10¼, 10½, see PML Part Number 7086. For a Dana 80, see PML Part Number 6065.

Drain and Fill/Level Check Holes

On most vehicles, there is a drain on the carrier. There is not a drain hole on the cover.

This PML cover has a Fill/level check hole on the front of the cover in the same location as the stock cover for accurate fluid levels.
