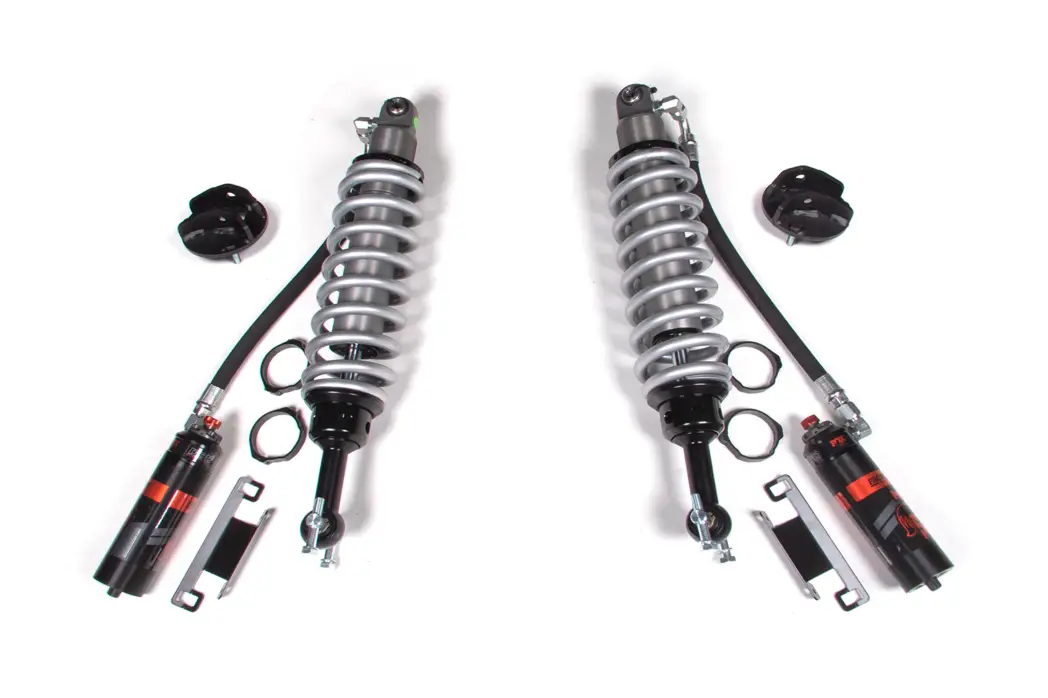

FOX88406262 | BDS Suspension Fox 2.5 Coilover Shocks With DSC Reservoir Adjuster For Ford Ranger 4WD | Factory Series | 6 Inch Lift

For 2019-2023 Ford Ranger 4WD

FOX88406262
Pricing: $2,897.93
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Give your 2019-2023 Ford Ranger 4WD equipped with a BDS 6-inch lift a race-winning technology upgrade to improve damping in any terrain with FOX Factory Series 2.5 Coil-Over shocks with Dual Speed Compression (DSC) Reservoir Adjusters. Before any FOX shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. FOX pushes the boundaries to give you that same precise control and race-proven performance you can feel in a bolt-on solution.

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Features & Benefits

  • 2.5-inch smooth bore zinc plated seamless steel body
  • Zinc-plated and double-clear coated for long lasting finish
  • Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Application-specific, adjustable 3.0 Eibach® racing springs
  • 7/8-inch hard chrome-plated steel shafts
  • Application specific valving to maximize performance

Important Notes

  1. If upgrading an existing standard 6" lift system to coilovers, BDS123600 will be needed in addition to the coilovers.

Installation

Est. Install Time :

2 -3hrs

Difficulty Level :

Moderate

Specification

  • Adjustable Damping : Yes
  • Compressed Length : 19.64
  • Cylinder Material : Steel
  • Extended Length : 24
  • Gas Charged : Yes
  • Lift Height : 4-6"
  • Lower Mount Code : Bar Pin
  • Lower Mount Type : Bar Pin
  • Reservoir Type : Remote
  • Shaft Diameter : 7_8
  • Travel Length : 4.36
  • Type : Coil-Over
  • Upper Mount Code : Eyelet
  • Upper Mount Type : OEM

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019FordRangerALLALLALLFront6"
2020FordRangerALLALLALLFront6"
2021FordRangerALLALLALLFront6"
2022FordRangerXLT4WDALLFront6"
2022FordRangerLariat4WDALLFront6"
2022FordRangerXL4WDALLFront6"
2023FordRangerXLT4WDGASFront6"
2023FordRangerLariat4WDALLFront6"
2023FordRangerXL4WDALLFront6"

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 60.0 lbs.
  • W18.0000” x H10.0000” x L30.0000”
  • Free Ground Shipping | Exclusions Apply*
