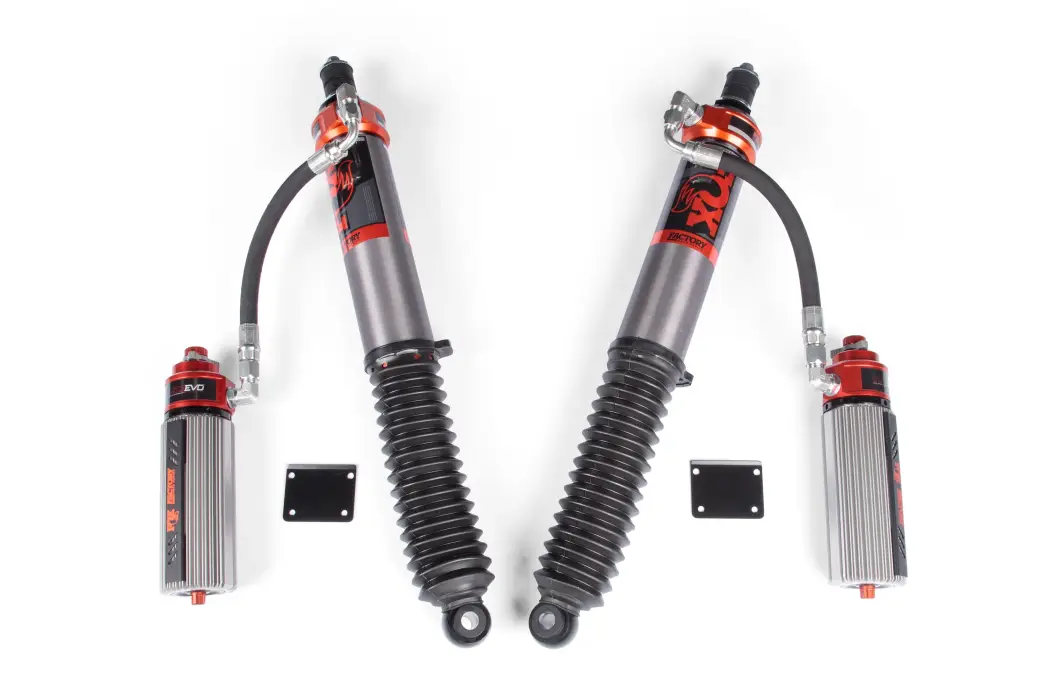

FOX88326149 | BDS Suspension Fox 3.0 Internal Bypass Reservoir Rear Shocks Adjustable For Toyota Tacoma | Factory Race Series | 0-1 Inch Lift
For 2024-2025 Toyota Tacoma
Description
If you're building the ultimate Toyota Tacoma, install FOX Factory Race Series 3.0 Internal Bypass shocks. PN 883-26-149 rear position shocks deliver race-dominating, extreme-duty performance on all terrains. Designed for bolt-on installation on Toyota Tacoma with 0-1" lift kits, the remote reservoirs feature connect via hose to new recirculating bridges. Separate high and low-speed compression adjustments help you fine tune performance to your exact driving style and vehicle specs. The remote reservoirs feature finned bodies to help dissipate heat and maintain optimal fluid temps. Inside the shock bodies, position-sensitive internal bypass technology provides a plush, predictable ride during normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs. Additional features include large 3" diameter hard-anodized, aluminum-bodies 7/8" shafts, race-bred pistons and valving, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton seals. You won’t find a more capable off-road shock for your Toyota Tacoma.
Features & Benefits
- Position-sensitive internal bypass technology allows for a plush, predictable ride over normal off-road driving conditions.
- Counteract harsh bottom-outs or top-outs that could buck you off the trail.
- Durable 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel. Aluminum finned remote reservoir with Recirculating Reservoir Bridge dissipates heat fast for long lasting performance.
- Dual Speed Compression (DSC) adjusters allow tool-free high and low-speed compression adjustment to easily dial in your ride.
- Massive 7/8" diameter hard chrome plated heat-treated alloy steel shock shaft to prevent bending or damage upon impacts.
Important Notes
- Will not fit Leaf Spring rear end models.
Installation
Est. Install Time :
1 hrDifficulty Level :
Moderately EasySpecification
- Adjustable Damping : Yes
- Compressed Length : 16.28
- Extended Length : 26.25
- Finish : Anodized
- Gas Charged : Yes
- Lower Mount Code : Eyelet
- Lower Mount Type : Eyelet
- Position : Rear
- Shaft Diameter : 7/8"
- Travel Length : 9.97
- Type : Smooth Body
- Upper Mount Code : Stem
- Upper Mount Type : Stem
Details
- FOX88326149
- FOX88326149
- BDS Suspension
- New
Categories
