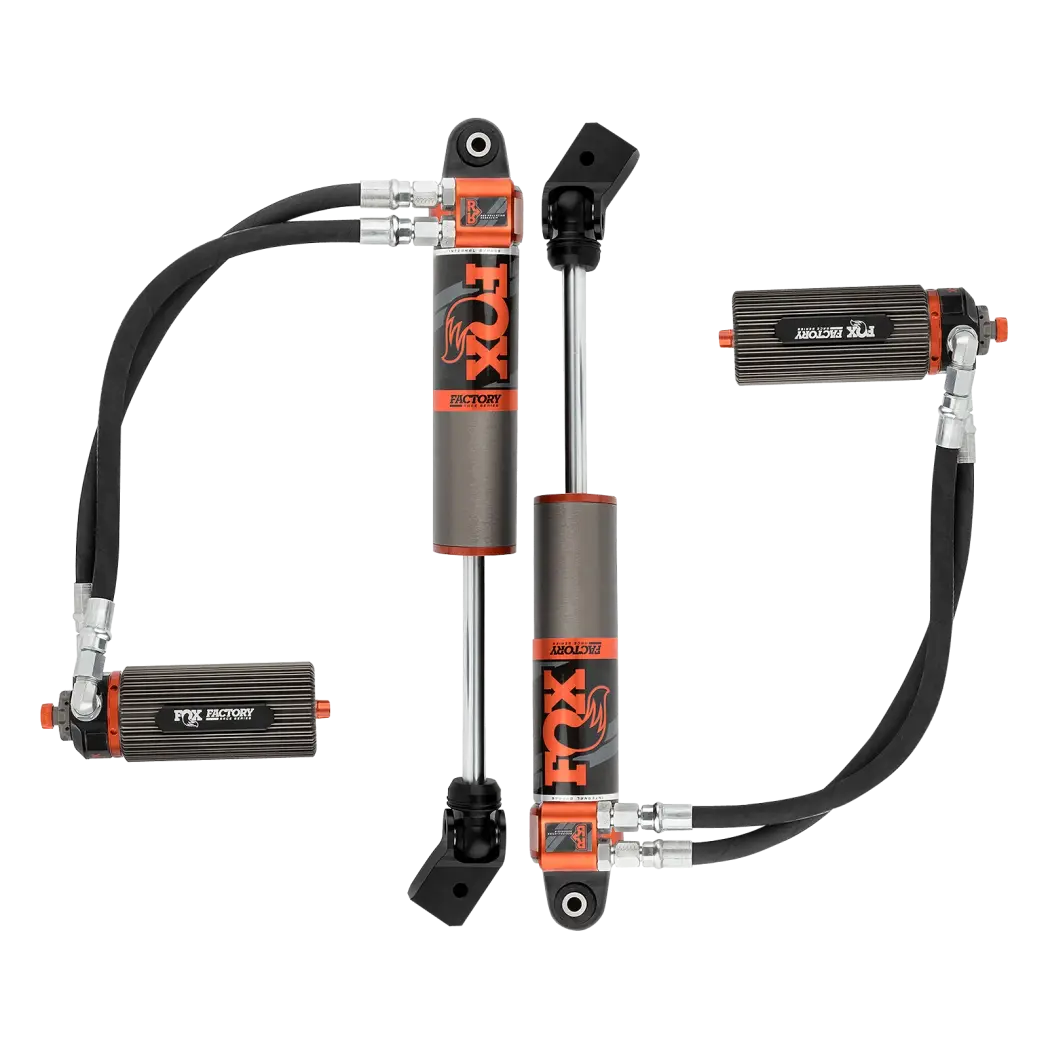

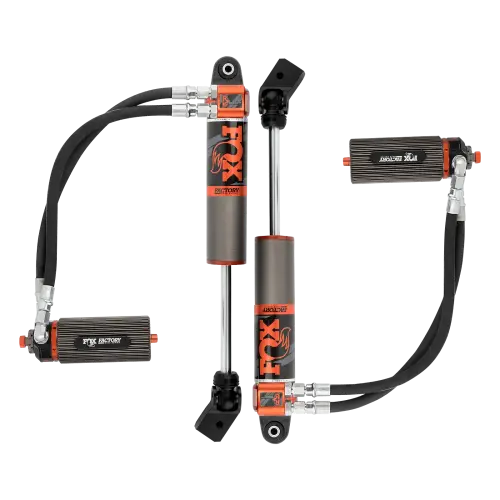

FOX88326080 | BDS Suspension Fox 3.0 Remote Reservoir Front Shocks Adjustable For Jeep Gladiator JT | Factor Race Series Internal Bypass | 2-3 Inch Lift
For 2020-2025 Jeep Gladiator JT
FOX88326080
Pricing:
$4,636.73
Description
Give your Jeep Gladiator JT the edge with the Factory Race Series 3.0 Internal Bypass shock, delivering race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail.
These hard-anodized, aluminum-bodied shocks are engineered with precision-machined aluminum components and race-bred internal valving. They are designed to bolt onto your JT with 2 to 3 inches of lift.
Features & Benefits
- Position-sensitive internal bypass technology allows for a plush, predictable ride over normal off-road driving conditions.
- Counteract harsh bottom-outs or top-outs that could buck you off the trail.
- Durable 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel.
- Aluminum finned remote reservoir with Recirculating Reservoir Bridge dissipates heat fast for long lasting performance.
- Dual Speed Compression (DSC) adjusters allow tool-free high and low-speed compression adjustment to easily dial in your ride.
- Massive 7/8" diameter hard chrome plated heat-treated alloy steel shock shaft to prevent bending or damage upon impacts.
Installation
Est. Install Time :
1-2 hrsDifficulty Level :
Moderately EasySpecification
- Front Lift Height : 2-3"
- Adjustable Damping : Yes
- Compressed Length : 15.78
- Cylinder Material : Aluminum
- Extended Length : 24.55
- Gas Charged : Yes
- Lower Mount Code : EB2
- Lower Mount Type : Eyelet
- Reservoir Type : Remote
- Shaft Diameter : 7/8"
- Travel Length : 8.77
- Type : Shocks
- Upper Mount Code : EB2
- Upper Mount Type : Eyelet
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2020 | Jeep | Gladiator | ALL | ALL | ALL | Front | 3" |
| 2021 | Jeep | Gladiator | ALL | ALL | ALL | Front | 3" |
| 2022 | Jeep | Gladiator | ALL | ALL | ALL | Front | 3" |
| 2023 | Jeep | Gladiator | ALL | ALL | ALL | Front | 3" |
| 2024 | Jeep | Gladiator | ALL | ALL | ALL | Front | 3" |
| 2025 | Jeep | Gladiator | ALL | ALL | ALL | Front | 3" |
Details
- FOX88326080
- FOX88326080
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 45.0 lbs.
- W10.0000” x H8.0000” x L25.0000”
- Free Ground Shipping | Exclusions Apply*
