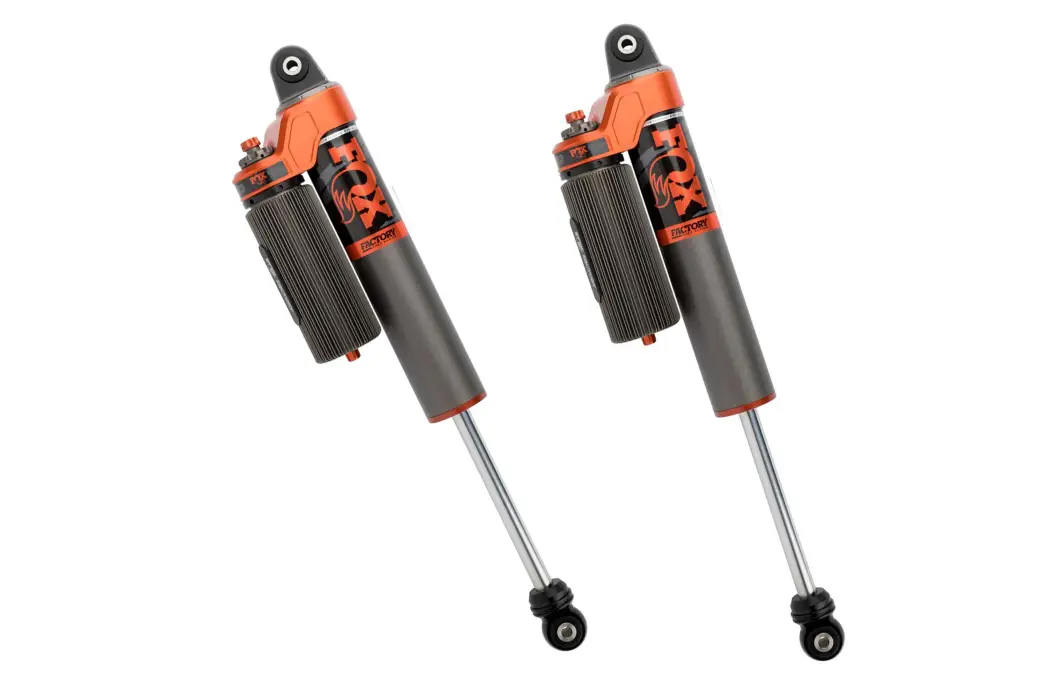

FOX88326078 | BDS Suspension Fox 3.0 Internal Bypass Piggyback Rear Shocks Adjustable For Jeep Wrangler JL | Factory Race Series | 3.5-4.5 Inch Lift
For 2018-2026 Jeep Wrangler JL
Description
If you're building the ultimate Jeep Wrangler JL, install FOX Factory Race Series 3.0 Internal Bypass shocks. PN 883-26-078 front position shocks deliver race-dominating, extreme-duty performance on all terrains. Designed for bolt-on installation on Jeep Wrangler JLs with JKS 3.5-4.5" lift kits, the remote reservoirs feature connect via hose to new recirculating bridges. Separate high and low-speed compression adjustments help you fine tune performance to your exact driving style and vehicle specs. The remote reservoirs feature finned bodies to help dissipate heat and maintain optimal fluid temps. Inside the shock bodies, position-sensitive internal bypass technology provides a plush, predictable ride during normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs. Additional features include large 3" diameter hard-anodized, aluminum-bodies 7/8" shafts, race-bred pistons and valving, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton seals. You won’t find a more capable off-road shock for your Jeep Wrangler JL.
Features & Benefits
- Position-sensitive internal bypass technology allows for a plush, predictable ride over normal off-road driving conditions.
- Counteract harsh bottom-outs or top-outs that could buck you off the trail.
- Durable 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel.
- Aluminum finned remote reservoir with Recirculating Reservoir Bridge dissipates heat fast for long lasting performance.
- Dual Speed Compression (DSC) adjusters allow tool-free high and low-speed compression adjustment to easily dial in your ride.
- Massive 7/8" diameter hard chrome plated heat-treated alloy steel shock shaft to prevent bending or damage upon impacts.
Installation
Est. Install Time :
1-2 hrsDifficulty Level :
EasySpecification
- Adjustable Damping : No
- Compressed Length : 18.93
- Extended Length : 29.78
- Finish : Clear-anodized
- Gas Charged : Yes
- Lower Mount Code : N/A
- Lower Mount Type : Eyelet
- Shaft Diameter : 7_8
- Travel Length : 10.85
- Type : Smooth Body
- Upper Mount Code : N/A
- Upper Mount Type : Eyelet
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2018 | Jeep | Wrangler | ALL | ALL | ALL | Rear | 4" |
| 2019 | Jeep | Wrangler | ALL | ALL | ALL | Rear | 4" |
| 2020 | Jeep | Wrangler | ALL | ALL | ALL | Rear | 4" |
| 2021 | Jeep | Wrangler | ALL | ALL | ALL | Rear | 4" |
| 2022 | Jeep | Wrangler | ALL | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Rubicon 4xe | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Sport Altitude | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Sahara 4xe | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Sahara | ALL | DIESEL | Rear | 4" |
| 2023 | Jeep | Wrangler | Rubicon | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Unlimited Sahara | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Sahara Altitude | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Willys Sport | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Sahara High Altitude | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Willys | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | High Altitude | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Unlimited Rubicon | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Sahara | ALL | GAS | Rear | 4" |
| 2023 | Jeep | Wrangler | Rubicon 392 | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Sport S | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | High Altitude 4xe | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Sport | ALL | ALL | Rear | 4" |
| 2023 | Jeep | Wrangler | Willys 4xe | ALL | ALL | Rear | 4" |
| 2024 | Jeep | Wrangler | Rubicon | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Unlimited Sahara | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Rubicon 392 Final Edition | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Rubicon X | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Willys | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Unlimited Willys | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Willys Sport | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Sport | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Unlimited Rubicon | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Sport S | ALL | ALL | Rear | |
| 2024 | Jeep | Wrangler | Rubicon 392 | ALL | ALL | Rear | |
| 2025 | Jeep | Wrangler | Unlimited Sahara | ALL | ALL | Rear | |
| 2025 | Jeep | Wrangler | Sport S | ALL | ALL | Rear | |
| 2025 | Jeep | Wrangler | Unlimited Rubicon | ALL | ALL | Rear | |
| 2025 | Jeep | Wrangler | Unlimited Willys | ALL | ALL | Rear | |
| 2025 | Jeep | Wrangler | Rubicon X | ALL | ALL | Rear | |
| 2025 | Jeep | Wrangler | Rubicon | ALL | ALL | Rear | |
| 2025 | Jeep | Wrangler | Sport | ALL | ALL | Rear | |
| 2025 | Jeep | Wrangler | Rubicon 392 Final Edition | ALL | ALL | Rear | |
| 2025 | Jeep | Wrangler | Willys | ALL | ALL | Rear | |
| 2026 | Jeep | Wrangler | Rubicon | ALL | ALL | Rear | |
| 2026 | Jeep | Wrangler | Willys | ALL | ALL | Rear | 4" |
| 2026 | Jeep | Wrangler | Willys | ALL | ALL | Rear | |
| 2026 | Jeep | Wrangler | Sport | ALL | ALL | Rear | |
| 2026 | Jeep | Wrangler | Sahara | ALL | ALL | Rear | 4" |
| 2026 | Jeep | Wrangler | Rubicon X | ALL | ALL | Rear | |
| 2026 | Jeep | Wrangler | Sport S | ALL | ALL | Rear | |
| 2026 | Jeep | Wrangler | Rubicon 392 | ALL | ALL | Rear | |
| 2026 | Jeep | Wrangler | Sport | ALL | ALL | Rear | 4" |
| 2026 | Jeep | Wrangler | Sport S | ALL | ALL | Rear | 4" |
| 2026 | Jeep | Wrangler | Rubicon | ALL | ALL | Rear | 4" |
| 2026 | Jeep | Wrangler | Rubicon 392 | ALL | ALL | Rear | 4" |
Details
- FOX88326078
- FOX88326078
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 45.0 lbs.
- W10.0000” x H8.0000” x L25.0000”
- Free Ground Shipping | Exclusions Apply*
