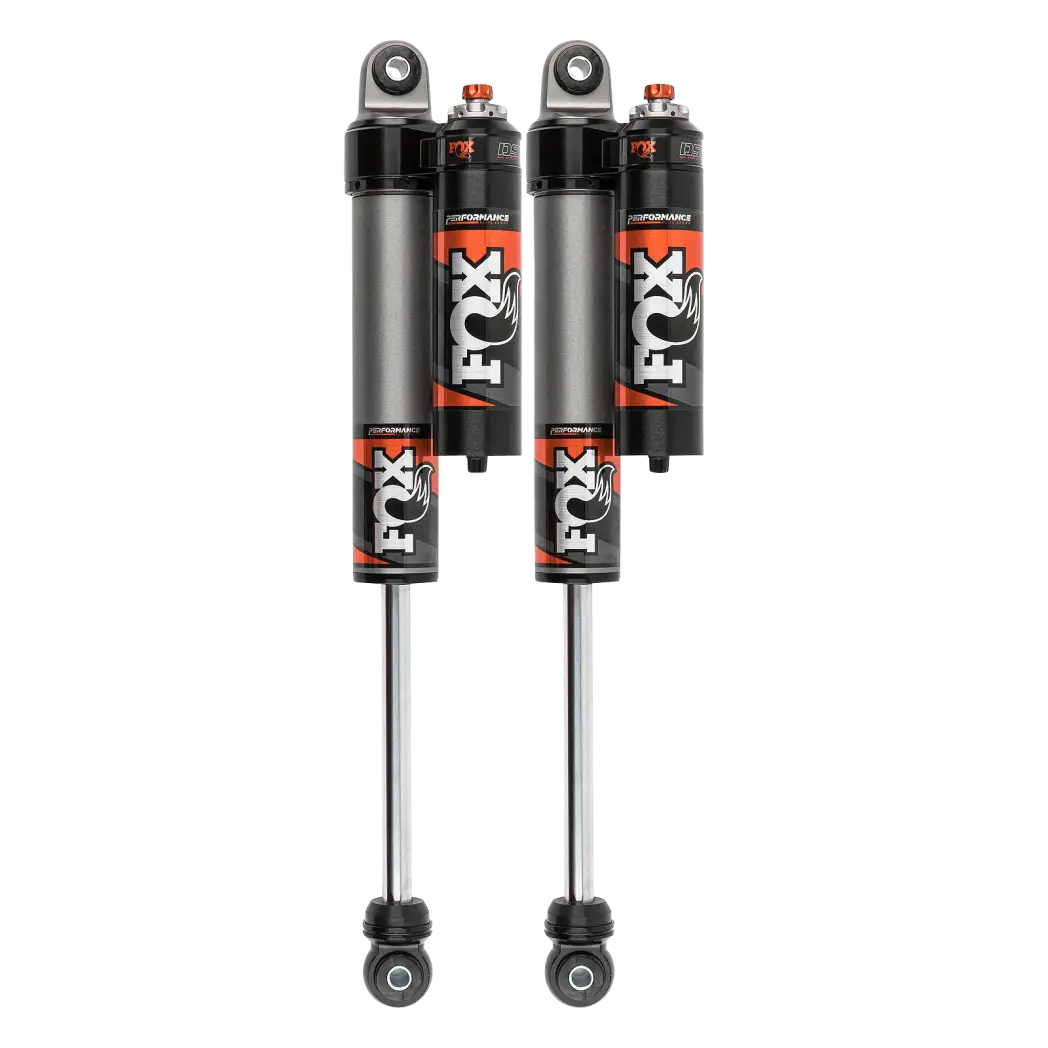

FOX88326073 | BDS Suspension Fox 2.5 Rear Shocks With DSC Reservoir Adjuster For Jeep Gladiator JT | Performance Elite Series | 0-1.5 Inch Lift
For 2020-2025 Jeep Gladiator JT
Description
Give your Jeep Gladiator JT a race-winning technology upgrade to improve damping in any terrain with FOX Performance Elite Series 2.5 front shocks with Dual Speed Compression (DSC) Reservoir Adjusters. Designed to be installed in conjunction with a 0-1.5 inch lift kit suspension system. Before any FOX shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. FOX pushes the boundaries to give you that same precise control and race-proven performance you can feel in a bolt-on solution.
The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Features & Benefits
- 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
- Hard-anodized for a durable finish
- External reservoir design separates shock oil from the high-pressure nitrogen
- Black-anodized, CNC-machined 6061-T6 billet aluminum
- 7/8" hard chrome plated heat-treated alloy steel
- Race-developed high-flow piston design
- Application specific valving to maximize performance
- Redundant sealing pack system main seal, wiper seal, scraper seal
- PTFE-lined, heat-treated, alloy steel spherical
- DSC - Dual Speed Compression
Installation
Est. Install Time :
1 hrDifficulty Level :
Moderately EasySpecification
- Front Lift Height : 0-1.5"
- Rear Lift Height : 0-1.5"
- Adjustable Damping : Yes
- Compressed Length : 16.34
- Cylinder Material : Aluminum
- Extended Length : 26.31
- Gas Charged : Yes
- Lower Mount Code : EB2
- Lower Mount Type : Eyelet
- Reservoir Type : Remote
- Shaft Diameter : 7/8"
- Travel Length : 9.97
- Type : Smooth Body IFP
- Upper Mount Code : EB2
- Upper Mount Type : Eyelet
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2020 | Jeep | Gladiator | ALL | ALL | ALL | Rear | 1.5" |
| 2021 | Jeep | Gladiator | ALL | ALL | ALL | Rear | 1.5" |
| 2022 | Jeep | Gladiator | ALL | ALL | ALL | Rear | 1.5" |
| 2023 | Jeep | Gladiator | ALL | ALL | ALL | Rear | 1.5" |
| 2024 | Jeep | Gladiator | ALL | ALL | ALL | Rear | 1.5" |
| 2025 | Jeep | Gladiator | ALL | ALL | ALL | Rear | 1.5" |
