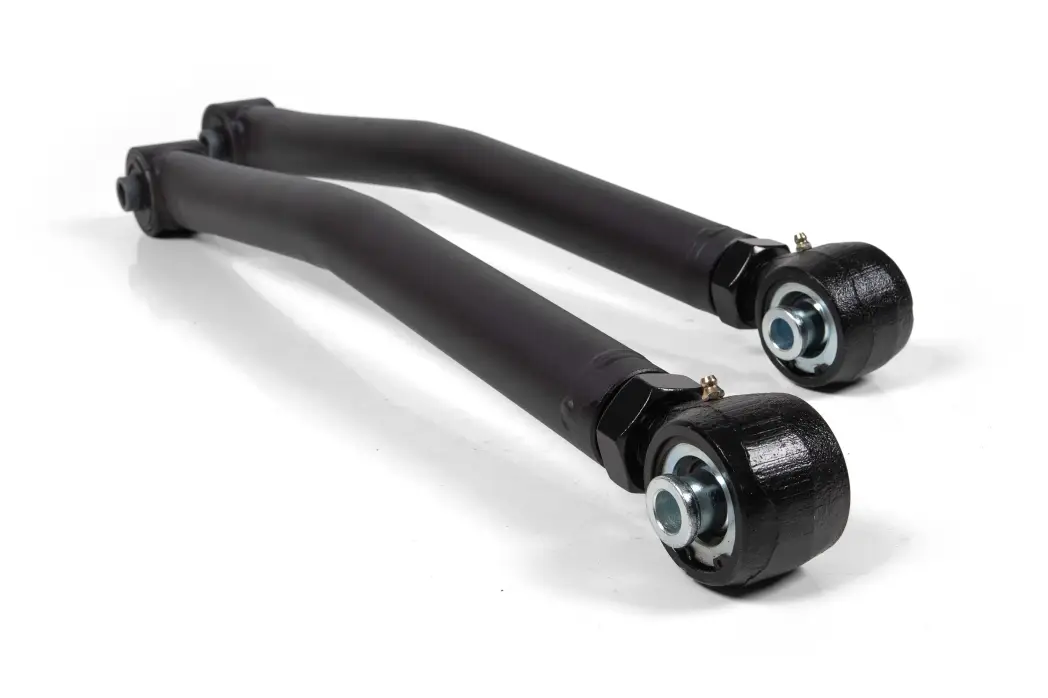

BDS123257 | BDS Suspension Rear Lower Tubular Control Arms With Flex Ends For Ford Bronco
For 2021-2026 Ford Bronco
Description
Upgrade the factory rear suspension control arms on your Ford Bronco with BDS heavy-duty replacements. Designed as a bolt-in upgrade, BDS rear lower control arms add strength and adjustability to your stock or lifted vehicle. Built from thick wall 1.9" diameter tubing and specially formed to maximize tire clearance.
The axle side utilizes an OE-style rubber bushing for long service-free operation and better isolation of the noise, vibration, and harshness associated with driving across various terrain. The frame mount side features a large forged end for strength and durability and is available with either OE-style rubber bushings or flex ends that allow up to 30-degrees of misalignment for greater articulation. These arms are compatible with 2-6.5" of lift and finished in a durable textured black powdercoat for excellent corrosion resistance.
Features & Benefits
- High strength construction from 1.9" OD heavy wall tubing
- Fully welded ends with factory-style rubber bushings
- Adjustable length to correctly position axle with 2-6.5" of lift
- Durable textured black powdercoat finish
- Fully assembled and ready to install right out of the box
Important Notes
- Fuel Tank Removal is Required for installation
- Will fit Bronco HOSS 3.0 model.
Specification
- Bushing Material : Urethane
- Bushings Included : Yes
- Grease Fitting Included : Yes
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2021 | Ford | Bronco | Big Bend | ALL | ALL | ||
| 2021 | Ford | Bronco | Outer Banks | ALL | ALL | ||
| 2021 | Ford | Bronco | Base | ALL | ALL | ||
| 2021 | Ford | Bronco | Black Diamond | ALL | ALL | ||
| 2021 | Ford | Bronco | Badlands | ALL | ALL | ||
| 2022 | Ford | Bronco | Black Diamond | ALL | ALL | ||
| 2022 | Ford | Bronco | Big Bend | ALL | ALL | ||
| 2022 | Ford | Bronco | Everglades | ALL | ALL | ||
| 2022 | Ford | Bronco | Badlands | ALL | ALL | ||
| 2022 | Ford | Bronco | Base | ALL | ALL | ||
| 2022 | Ford | Bronco | Outer Banks | ALL | ALL | ||
| 2023 | Ford | Bronco | Black Diamond | ALL | ALL | ||
| 2023 | Ford | Bronco | Big Bend | ALL | ALL | ||
| 2023 | Ford | Bronco | Base | ALL | ALL | ||
| 2023 | Ford | Bronco | Outer Banks | ALL | ALL | ||
| 2023 | Ford | Bronco | Everglades | ALL | ALL | ||
| 2023 | Ford | Bronco | Badlands | ALL | ALL | ||
| 2024 | Ford | Bronco | Wildtrak | ALL | ALL | Rear Lower | |
| 2024 | Ford | Bronco | Outer Banks | ALL | ALL | Rear Lower | |
| 2024 | Ford | Bronco | Big Bend | ALL | ALL | Rear Lower | |
| 2024 | Ford | Bronco | Badlands | ALL | ALL | Rear Lower | |
| 2024 | Ford | Bronco | Heritage Edition | ALL | ALL | Rear Lower | |
| 2024 | Ford | Bronco | Heritage Limited Edition | ALL | ALL | Rear Lower | |
| 2024 | Ford | Bronco | Black Diamond | ALL | ALL | Rear Lower | |
| 2024 | Ford | Bronco | Everglades | ALL | ALL | Rear Lower | |
| 2025 | Ford | Bronco | Outer Banks | ALL | ALL | Rear Lower | |
| 2025 | Ford | Bronco | Base | ALL | ALL | Rear Lower | |
| 2025 | Ford | Bronco | Badlands | ALL | ALL | Rear Lower | |
| 2025 | Ford | Bronco | Stroppe Edition | ALL | ALL | Rear Lower | |
| 2025 | Ford | Bronco | Heritage Edition | ALL | ALL | Rear Lower | |
| 2025 | Ford | Bronco | Big Bend | ALL | ALL | Rear Lower |
Details
- BDS123257
- BDS123257
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 27.0 lbs.
- W8.0000” x H4.0000” x L20.0000”
- Free Ground Shipping | Exclusions Apply*
