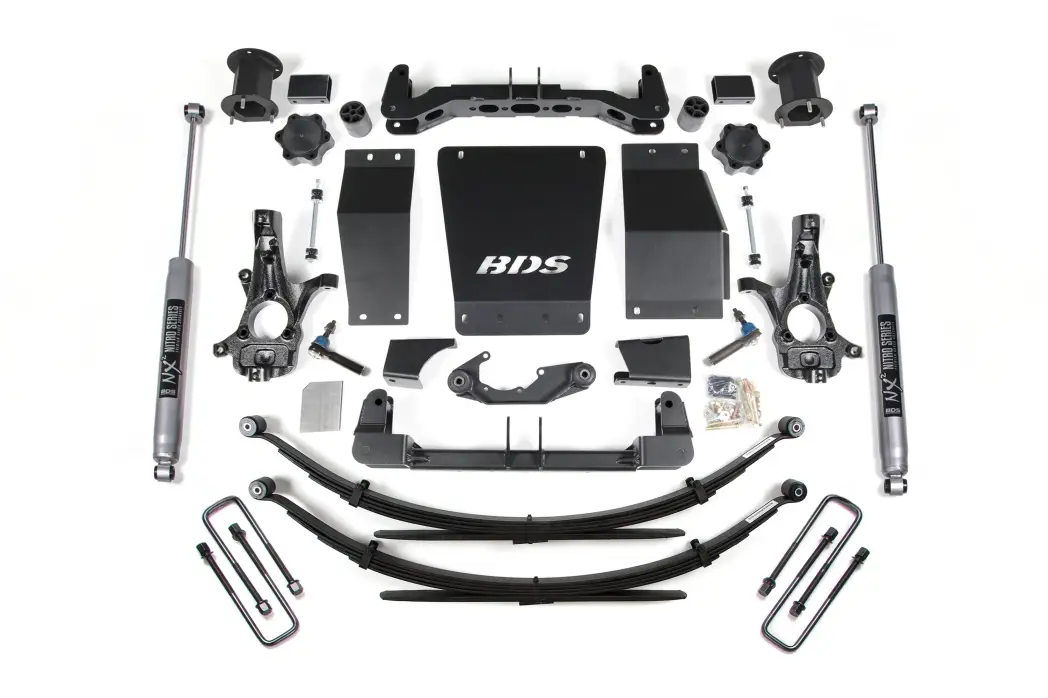

BDS902H | BDS Suspension 4.5 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 1500 4WD | Cast Steel Factory Control Arm | Rear Leaf Springs | NX2 Nitro Series Shocks

The BDS 4.5-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

Recommended Tires & Wheels

(Trimming may be required)

• 32 x 12.5 with 17 x 8 and 4.5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Rear Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Rear Lift Option

3 Inch Block Kit

• The 3" rear block replaces the factory 1-1/4" block
• Nets 2" of rear lift to level the vehicle.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Important Notes

1. *IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
2. Requires frame bracket modification.
3. Requires differential modification to clear electric power steering
4. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference If choosing the 3" rear block option, add-a-leaf # 111209 is recommended for a more level/tail high stance on crew cab models.
5. All wheel drive models require drive line modification.
