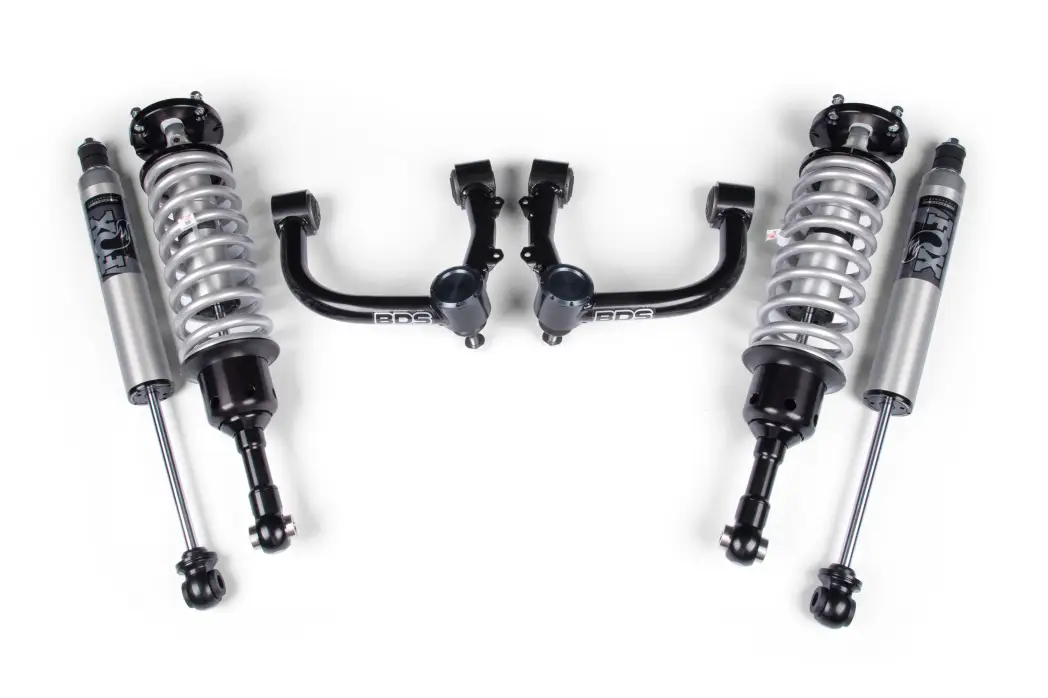

BDS843FPS | BDS Suspension 2 Inch Leveling Kit With Fox Coilover Upgrade For Toyota Tacoma | Fox 2.5 Performance Series HTO Shocks

Upgrade your truck’s stance, capability, and ride performance with the BDS 2" Coilover Shock Leveling Kit, combining premium FOX coilover technology with heavy duty BDS tubular upper control arms for improved suspension geometry, increased wheel travel, and long term durability. This system is available with multiple FOX shock options including FOX 2.0 Performance, FOX 2.5 Performance, FOX 2.5 Performance Elite, and FOX 3.0 Factory Race IBP, allowing you to choose the level of on and off road performance that best matches your driving needs. The FOX 2.0 Performance Series provides a solid step up from stock with smoother damping and better heat dissipation, while the FOX 2.5 Performance Series delivers greater oil capacity and cooling for more aggressive terrain. For drivers demanding maximum tunability, the FOX 2.5 Performance Elite and FOX 3.0 Factory Race IBP coilovers include external reservoirs and feature the new DSC EVO Dual Speed Compression EVO adjuster, which offers a broader tuning range, improved oil flow, and more intuitive high and low speed compression adjustments. The DSC EVO adjuster allows you to fine tune ride quality, body control, bottom out resistance, and overall suspension feel on the fly without tools, thanks to its expanded damping range, enhanced durability, and refined internal porting. Every kit comes equipped with BDS’s high strength tubular upper control arms, built from fully welded heavy wall steel with indexed ball joint cups to optimize alignment and maximize suspension travel when paired with performance coilovers. Together, the coilover and UCA combination delivers exceptional control, comfort, and handling while leveling the truck and improving front end clearance, all backed by the legendary BDS No Fine Print Warranty.

Recommended Tires & Wheels

(Trimming may be required)

• 275 / 70 with 17 x 8.5 and 5 in. Backspace
• 285 / 70 with 17 x 8.5 and 5.38 in. Backspace
• 285 / 70 with 17 x 8.5 and Stock in. Backspace

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

FOX 2.5 Performance Series HTO

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

FOX 3.0 Factory Race Series HTO

• Position-sensitive internal bypass technology
• Counteract harsh bottom-outs or top-outs that could buck you off the trail.
• 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel.
• Aluminum finned remote reservoir with Recirculating Reservoir Bridge dissipates heat fast for long lasting performance.
• Dual Speed Compression (DSC) adjusters allow tool-free high and low-speed compression adjustment to easily dial in your ride.
• Massive 7/8" diameter hard chrome plated heat-treated alloy steel shock shaft to prevent bending or damage upon impacts.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. The spring preload is set by FOX to last the life of the product. If any preload is added, a bumpstop spacer must be installed to prevent coilbind and to preserve spring life.
