BDS842FPE | BDS Suspension 2 Inch Lift Kit For Toyota Hilux | Fox 2.5 Performance Elite Coilover

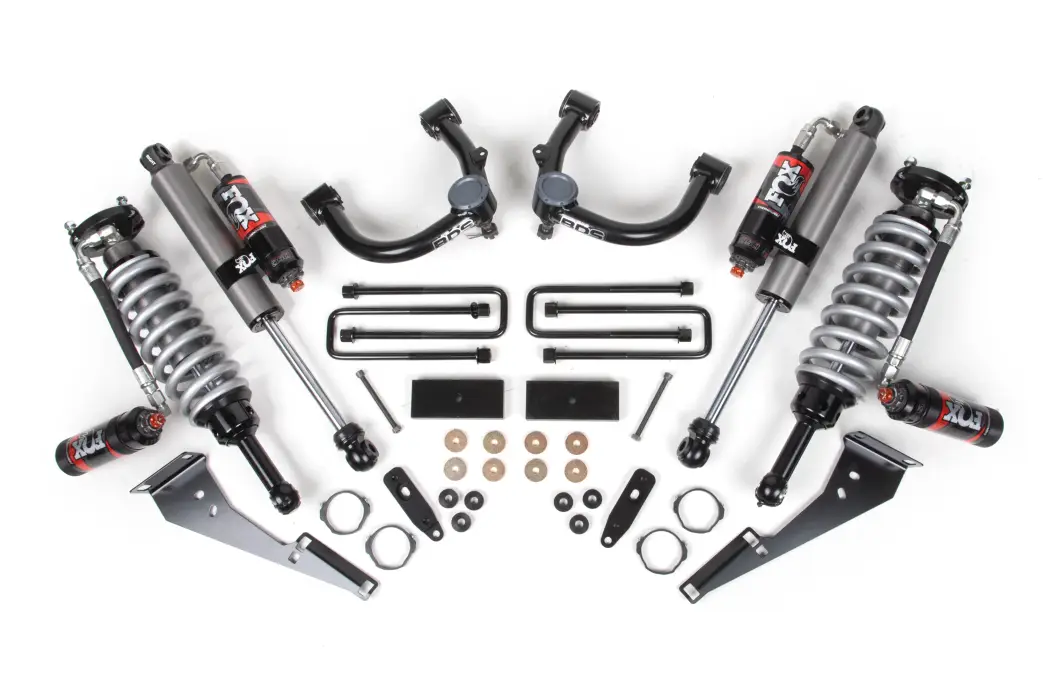

BDS introduces a high-performance suspension upgrade for the popular Toyota Hilux, designed to deliver exceptional ride quality, strength, and off-road capability. This system features heavy-duty BDS upper control arms paired with your choice of Fox Performance Series coil-over options:

Fox 2.0 Snap Ring Struts

Fox 2.5 Performance HTO Coilovers

Fox 2.5 Performance Elite Coilovers

Each setup is built to handle tough terrain while improving handling and control, both on and off the road. The rear of the vehicle benefits from a collaboration between BDS Engineering and Fox Ride Engineering, with rear shocks precisely tuned to work in harmony with the Hilux’s aggressive factory spring rate. This ensures a balanced, responsive ride and maximum performance under load or during spirited driving.

Whether you're loading up, heading off-road, or simply want a more composed ride, BDS delivers the suspension solution the Hilux was meant to have.

Recommended Tires & Wheels

(Trimming may be required)

• 285 / 70 with 16 x 8 and 4.5 in. Backspace
• 285 / 70 with 17 x 8 and 4.5 in. Backspace

Coilover Options

FOX 2.0 Performance Series Snap Ring Strut

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Snap Ring Spring Seat to re-use OEM spring

FOX 2.5 Performance Elite Series Coil-Over

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Performance
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

FOX 2.5 Performance Series HTO

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty
