BDS839PES | BDS Suspension 5 Inch Lift Kit For Toyota Tundra 4WD | Fox 2.5 Performance Elite Shocks

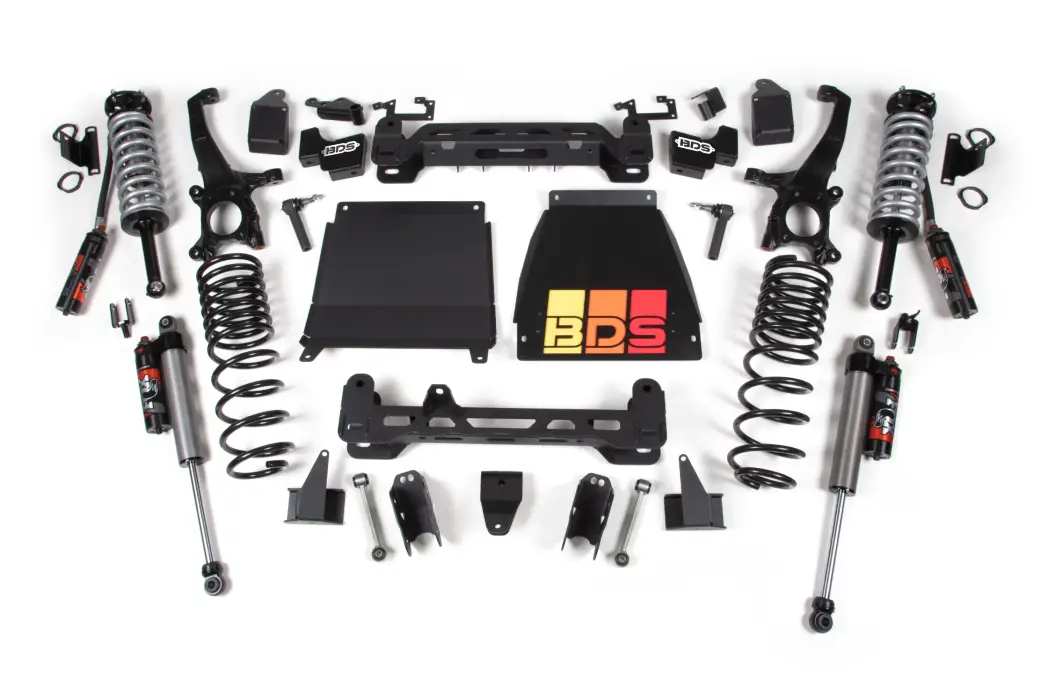

Get the ultimate look and performance for your late-model Toyota Tundra with the BDS 5-inch suspension lift kit, featuring FOX 2.5 Performance Elite (PE) coil-overs and shocks. These kits feature the new aluminum bodied FOX 2.5 Performance Elite (PE) coil-over shocks, designed specifically for bolt-on performance, increased travel, more adjustability via DSC adjustment, and better heat dispersion, allowing you to tackle the roughest terrain on and off-road. Designed to improve stance, performance, and capability, BDS includes everything necessary to set your truck up right with clearance for up to 37-inch tires.

This kit takes advantage of BDS's tried-and-true high-clearance architecture for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for great on-road handling characteristics. Up front, this kit pairs the FOX 2.5 PE coil-overs with high-arched, 1/4-inch thick steel crossmembers, while properly relocating the front differential to correct CV operating angles and protect it with heavy-duty, laser-cut skid plates featuring the iconic tri-color stripe backing plate. Steering geometry is corrected at the new, taller ride height with CNC-machined ductile iron steering knuckles, along with high strength tie rod ends, allowing for improved control and ESC system compatibility. These, combined with the provided sway bar drops, bump stop extensions, brake line brackets, FOX reservoir mounts, and supplied hardware packs, provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear, this kit utilizes a pair of Pro-Ride coil springs, a track bar relocation bracket, extended sway bar links, and control arm brackets to lift and level the stance while maintaining suspension geometry and load capacity. For shocks, you have the option of FOX 2.0 IFP Performance Series gas shocks or an upgrade to the FOX 2.5 Performance Elite (PE) Series piggyback reservoir shocks to match the front and further enhance vehicle performance and adjustability.

Recommended Tires & Wheels

(Trimming may be required)

FOX 2.5 PE Coil-Overs

FOX 2.5 Performance Elite (PE) coil-overs offer next-level performance for both on-road comfort and off-road capability. Tuned and ready to install right out of the box, these aluminum-bodied FOX 2.5-inch diameter coil-overs are the latest iteration of FOX suspension technology, built for durability. Their lighter design, better heat dispersion, and race-proven components make them the best all-around product. These include DSC (Dual Speed Compression) adjusters on the remote reservoir for additional fluid capacity and high-speed/low-speed compression tuning, allowing you to easily dial in performance to match any terrain with the turn of the knobs.

HD Components

All BDS kits come with a No Fine Print Warranty, and to ensure our kits are the best they can be, we use high-strength American steel, high-clearance, fully welded crossmembers, the latest manufacturing processes, and quality inspection at every step of the way. Get the most out of your truck with BDS Suspension and FOX.

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. TRD Sports will achieve the same stance as other models by achieving extra lift in the front.
2. Will not work with Adaptive Variable Suspension (AVS) System equipped vehicles
3. Will not work with Air Ride models
4. Will not work with TRD Pro models
5. For regular off-road use, it recommended to upgrade Non TRD Off-Road trucks half axles (CVs) to Toyota TRD's (Driver Part# 434200C020, Passenger Part# 434100C020. Not including TRD Pro models.
6. The ADAS system in some vehicles needs to be recalibrated by a certified shop. The vehicle may warn the driver of potential collision from lower bridges, overhead signs/wires, and signs in windy conditions. Most windshield repair shops (Safelite) and dealers are capable of doing this
7. Wheel&Tire Combos were tested through normal driving conditions within alignment specs. Some models will required: removal of mud flaps, fender liner being trimmed or resecured, body mount bump being cut off or ground down ** Some 37" tires with 5-5.5" BS wheels may rub the sway bar during full lock turning situations.
