BDS838FPE | BDS Suspension 3 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Toyota Tundra 4WD | Fox 2.5 Performance Elite Shocks

Take your 2022-2026 Toyota Tundra truck to the next level and improve the ride with this 0-3-inch lift kit featuring FOX 2.5 Performance Elite Coilovers from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

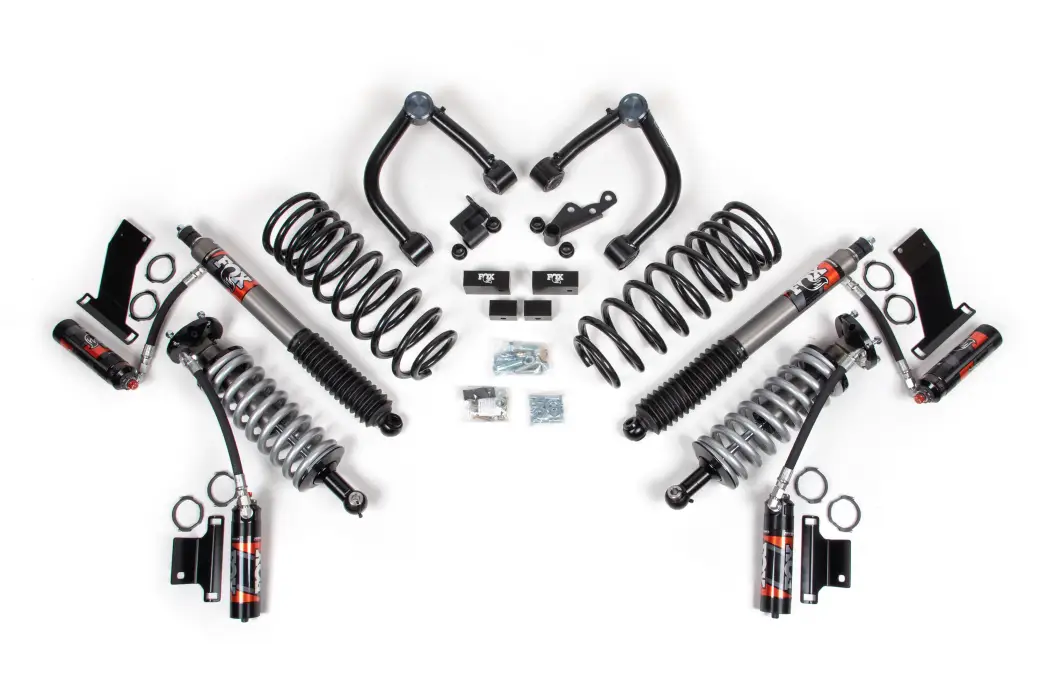

Up front the lift kit includes FOX 2.5 Performance Elite Coilovers with DSC remote reservoirs, heavy duty tubular upper control arms for increased strength, BDS heavy duty diff. drop brackets as well as solid aluminum sway bar drop blocks. In the rear this kit utilizes 1- 3/4" BDS heavy duty coil springs and a set of FOX 2.5 Performance Elite shocks with DSC remote reservoirs for ultimate adjustability that lets you dial in for the smoothest ride possible.

Recommended Tires & Wheels

(Trimming may be required)

DSC Adjustment

FOX 2.5 Performance Elite front coilovers and rear shocks come equipped with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Important Notes

1. TRD Sports will achieve the extra lift but will have the same stance as other models in the front
2. Will not work with Adaptive Variable Suspension (AVS) System equipped vehicles
3. Will not work with Air Ride models
4. Will not work with TRD Pro models
5. For regular off-road use, it is recommended to upgrade Non TRD Off-Road trucks half axles (CVs) to Toyota TRD's  (Driver Toyota Part# 434200C020, Passenger Toyota Part# 434100C020). Not including TRD Pro model.
6.  Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals
7. For replacement ball joints, order BDS088200. Ball joints are directional and need to be positioned correctly when installed on the upper control arm.
8. The ADAS system in some vehicles needs to be recalibrated by a certified shop. The vehicle may warn the driver of potential collision from lower bridges, overhead signs/wires, and signs in windy conditions. Most windshield repair shops (Safelite) and dealers are capable of doing this.

Installation

Specification
