BDS837FS | BDS Suspension 2 Inch Leveling Kit For Toyota Tundra 4WD | Fox 2.0 Performance Series Shocks

For 2022-2026 Toyota Tundra 4WD

BDS837FS
Availability:
Pricing: $938.19
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Level the front of your 2022-2026 Toyota Tundra 4WD truck by installing this 2-inch leveling kit from BDS. Specially designed for the Tundra, this 2" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. The lift kit includes bolt-on steel top mount strut spacers, sway bar spacers, skid plate hardware and optional custom-tuned NX2 Nitro or FOX Performance series rear shocks. Give your 2022-2026 Toyota Tundra the extra boost with this 2" leveling kit from BDS Suspension.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Maintains factory like ride quality
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 285 / 65 with stock and Stock in. Backspace
  • 295 / 60 with and in. Backspace
  • 305 / 55 with and in. Backspace

Important Notes

  1. Will NOT work on TRD Pro models.
  2. Will NOT work on models with Adaptive Variable Suspension (AVS)
  3. Will NOT work on models with XSP-X package
  4. The ADAS system in some vehicles needs to be recalibrated by a certified shop. The vehicle may warn the driver of potential collision from lower bridges, overhead signs/wires, and signs in windy conditions. Most windshield repair shops (Safelite) and dealers are capable of doing this.

Installation

Est. Install Time :

3 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Cut Off Wheel or Equiv., Strut Compressor

Specification

  • Front Lift Method : Strut Spacer
  • Front Lift Height : 2"
  • Rear Lift Method : Stock
  • Rear Lift Height : 0"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2022ToyotaSequoiaNightshade4WDALLFront2"
2022ToyotaTundra1794 Edition4WDALLFront2"
2022ToyotaTundraLimited4WDALLFront2"
2022ToyotaSequoiaSR54WDALLFront2"
2022ToyotaSequoiaLimited4WDALLFront2"
2022ToyotaSequoiaPlatinum4WDALLFront2"
2022ToyotaTundraSR TRD Off-RoadALLALLFront2"
2022ToyotaTundraSR4WDALLFront2"
2022ToyotaSequoiaTRD Sport4WDALLFront2"
2022ToyotaTundraPlatinum4WDALLFront2"
2022ToyotaTundraSR54WDALLFront2"
2022ToyotaTundraSR5 TRD Off-RoadALLALLFront2"
2022ToyotaTundraLimited TRD Off-RoadALLALLFront2"
2022ToyotaTundraCapstoneALLALLFront2"
2022ToyotaTundraPlatinum 1794 EditionALLALLFront2"
2023ToyotaSequoiaPlatinum4WDALLFront2"
2023ToyotaTundraPlatinum4WDALLFront2"
2023ToyotaTundraSR4WDALLFront2"
2023ToyotaSequoiaLimited4WDALLFront2"
2023ToyotaTundraLimited4WDALLFront2"
2023ToyotaTundraCapstoneALLALLFront2"
2023ToyotaSequoiaCapstone4WDALLFront2"
2023ToyotaSequoiaTRD Off-RoadALLALLFront2"
2023ToyotaTundraSR54WDALLFront2"
2023ToyotaTundra1794 Edition4WDALLFront2"
2023ToyotaSequoiaSR54WDALLFront2"
2024ToyotaTundraCapstoneALLALLFront2"
2024ToyotaTundraSR4WDALLFront2"
2024ToyotaTundra1794 Edition4WDALLFront2"
2024ToyotaSequoiaCapstone4WDALLFront2"
2024ToyotaSequoiaSR54WDALLFront2"
2024ToyotaTundraSR54WDALLFront2"
2024ToyotaSequoiaLimited4WDALLFront2"
2024ToyotaSequoiaPlatinum4WDALLFront2"
2024ToyotaTundraPlatinum4WDALLFront2"
2024ToyotaTundraLimited4WDALLFront2"
2024ToyotaTundraTRD Off-RoadALLALLFront2"
2025ToyotaTundraTRD Off-RoadALLALLFront2"
2025ToyotaTundraPlatinum4WDALLFront2"
2025ToyotaTundra1794 Edition4WDALLFront2"
2025ToyotaTundraCapstoneALLALLFront2"
2025ToyotaTundraSR4WDALLFront2"
2025ToyotaTundraSR54WDALLFront2"
2025ToyotaTundraLimited4WDALLFront2"
2026ToyotaTundraSR54WDALLFront2"
2026ToyotaTundraCapstoneALLALLFront2"
2026ToyotaTundraSR4WDALLFront2"
2026ToyotaTundra1794 Edition4WDALLFront2"
2026ToyotaTundraLimited4WDALLFront2"
2026ToyotaTundraPlatinum4WDALLFront2"

Component List

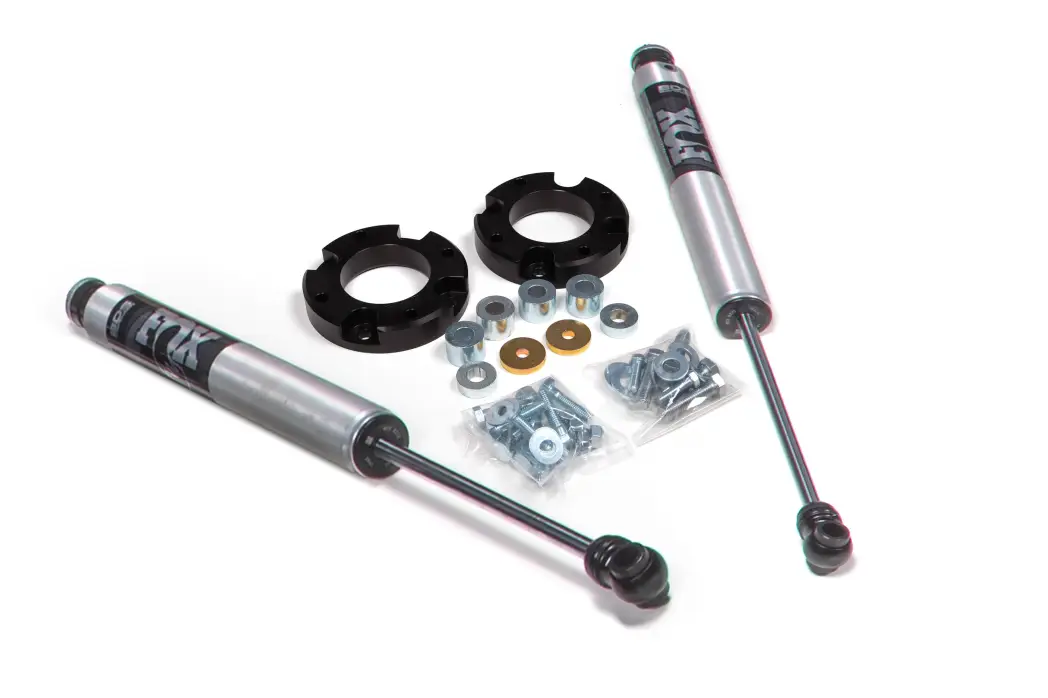

1 BDS028201 2022 Toyota Tundra, 2" Leveling Spacer
2 FOX98224755 Shock: Fox 2.0 Performance Series 26.15 x 16.05 x 2- S50/EB1

Tires & Wheels

(Trimming may be required)
285 / 65 with stock and Stock in. Backspace
295 / 60 with and in. Backspace
305 / 55 with and in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W10.0000” x H8.0000” x L30.0000”
