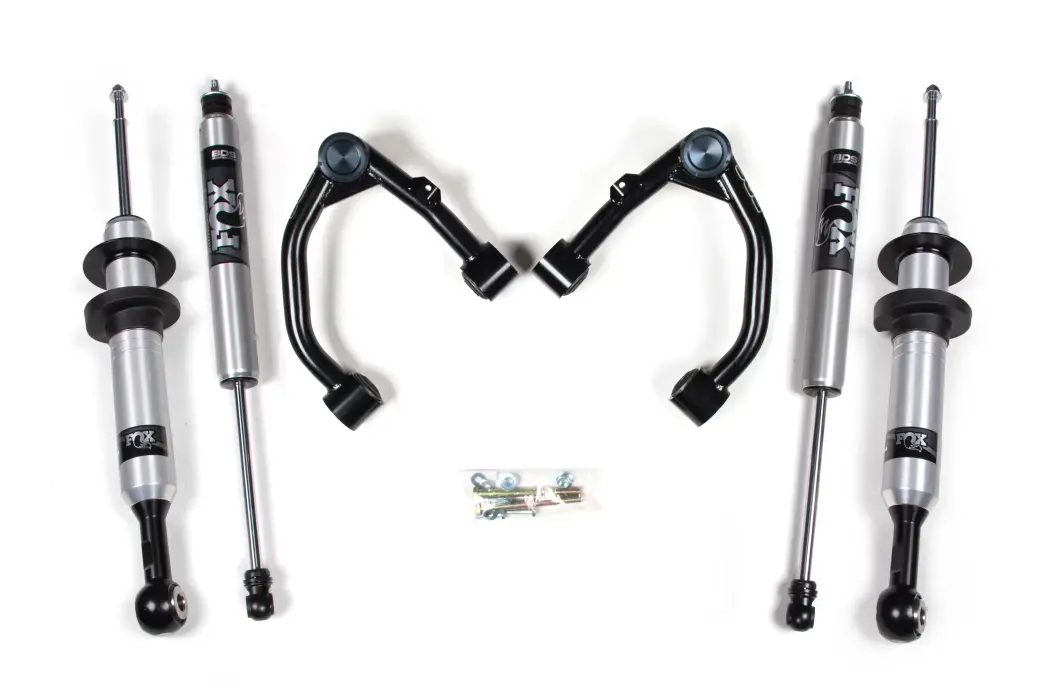

BDS826FSR | BDS Suspension 2 Inch Leveling Kit With Fox 2.0 Snap Ring Strut For Toyota Tundra 2/4WD

Features & Benefits

Recommended Tires & Wheels

(Trimming may be required)

• 33 x 12.5 with 17 x 9 and 5 in. Backspace

FOX 2.0 Snap Ring Strut

The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Important Notes

1. This kit will work on TRD Pro models, but only net 2" of lift due to the taller factory ride height.
2. This kit is designed to level your vehicle.
3. If you desire to maintain the stock rake there is a 1" shackle or 2" rear block kit available when you build your kit.
