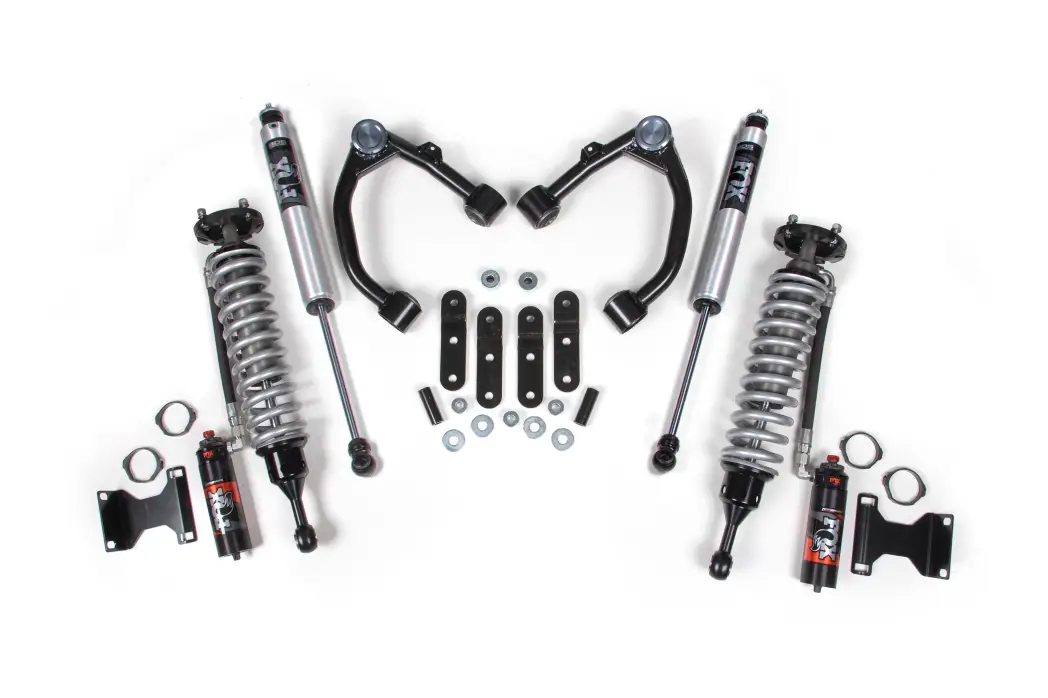

BDS824FPS | BDS Suspension 3 Inch Lift Kit With Fox 2.5 Performance Elite Coilover For Toyota Tundra 2/4WD | Fox 2.0 Performance Series Shocks

• Highly engineered upper control arms featuring 1.5" tubualr steel construction with indexed ball joint to provide maximum travel with facotry style rubber bushings which provide long lasting maintenance free operation.
• Fox Performance Elite 2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body with smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster. 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster.
• Vehicle-specific spring and valving to maximize performance.
• 7/8" hard chromeplated steel shafts

• 33 x 12.5 with 17 x 9 and 5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Important Notes

1. This kit will work on TRD Pro models, but only net 2" of lift due to the taller factory ride height.
2. Can be installed on 2WD models, differential drop brackets are not used during installation.
