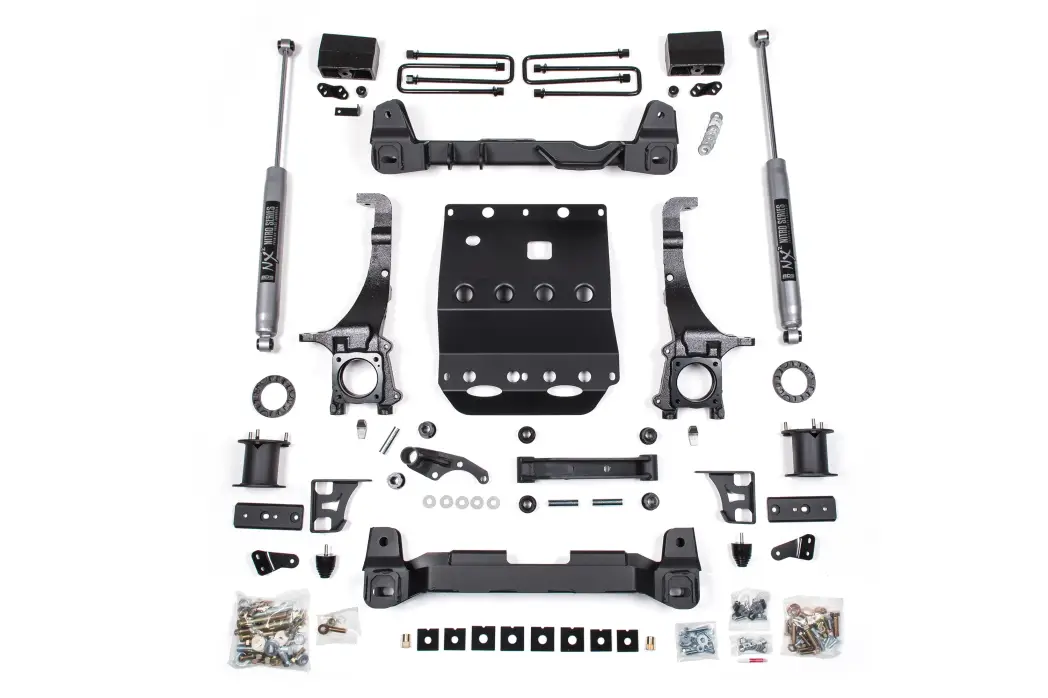

BDS823H | BDS Suspension 6 Inch Lift Kit For Toyota Tacoma 4WD | NX2 Nitro Series Shocks

For 2016-2023 Toyota Tacoma 4WD

BDS823H
Availability:
Pricing: $2,749.79
Qty:
Free Ground Shipping | Exclusions Apply*

Description

BDS steps up the performance and capability of the 2016-2023 Toyota Tacoma 4WD trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Will not work on TRD Pro Models
  2. Minor welding required
  3. Requires frame bracket modification
  4. Strut compressor required for installation
  5. Stock wheels cannot be reinstalled
  6. System will work on 2WD PreRunner models
  7. Can not use 17" wheels.
  8. Fox Shocks required for 2013-2020 models

Installation

Est. Install Time :

4-5 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Reciprocating Saw, Welding Equipment

Specification

  • Front Lift Method : Cross-Member
  • Front Lift Height : 6"
  • Rear Lift Method : Block
  • Rear Lift Height : 4"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2017ToyotaTacomaSR4WDALL
2017ToyotaTacomaTRD Off-Road4WDALL
2017ToyotaTacomaTRD Sport4WDALL
2017ToyotaTacomaEdicion EspecialALLALL
2017ToyotaTacomaSR54WDALL
2017ToyotaTacomaSport4WDALL
2017ToyotaTacomaLimited4WDALL
2018ToyotaTacomaSR54WDALL
2018ToyotaTacomaTRD Off-Road4WDALL
2018ToyotaTacomaTRD Sport4WDALL
2018ToyotaTacomaEdicion EspecialALLALL
2018ToyotaTacomaSport4WDALL
2018ToyotaTacomaLimited4WDALL
2018ToyotaTacomaSR4WDALL
2019ToyotaTacomaSR54WDALL
2019ToyotaTacomaTRD Off-Road4WDALL
2019ToyotaTacomaSport4WDALL
2019ToyotaTacomaEdicion EspecialALLALL
2019ToyotaTacomaLimited4WDALL
2019ToyotaTacomaTRD Sport4WDALL
2019ToyotaTacomaSR4WDALL
2020ToyotaTacomaTRD Off-Road4WDALL
2020ToyotaTacomaSR4WDALL
2020ToyotaTacomaSR54WDALL
2020ToyotaTacomaTRD Sport4WDALL
2020ToyotaTacomaEdicion EspecialALLALL
2020ToyotaTacomaLimited4WDALL
2020ToyotaTacomaSport4WDALL
2021ToyotaTacomaTRD Off-Road4WDALL
2021ToyotaTacomaSR54WDALL
2021ToyotaTacomaTRD Sport4WDALL
2021ToyotaTacomaLimited4WDALL
2021ToyotaTacomaSR4WDALL
2022ToyotaTacomaTRD Off-Road4WDALL
2022ToyotaTacomaTRD Sport4WDALL
2022ToyotaTacomaSR4WDALL
2022ToyotaTacomaLimited4WDALL
2022ToyotaTacomaSR54WDALL
2023ToyotaTacomaSR4WDALL
2023ToyotaTacomaLimited4WDALL
2023ToyotaTacomaTRD Sport4WDALL
2023ToyotaTacomaSR54WDALL
2023ToyotaTacomaTrail Special EditionALLALL
2023ToyotaTacomaTRD Off-Road4WDALL

Component List

1 BDS018408 2005-2023 Toyota Tacoma 4" Rear Block Kit
1 BDS028614 2005-2023 Toyota Tacoma Knuckle Box Kit - DS
1 BDS028615 2005-2023 Toyota Tacoma Knuckle Box Kit - PS
1 BDS028603 2005-2023 Tacoma 6" Strut Spacer Box Ki
1 BDS028612 2016-2023 Toyota Tacoma 4-6" Front Box Kit
1 BDS028621 2016-2023 Toyota Tacoma Crossmember Box Kit
2 BDS85953 Shock - 29.80 x 17.57 x 2-3/8 -S1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W29.0000” x H29.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
