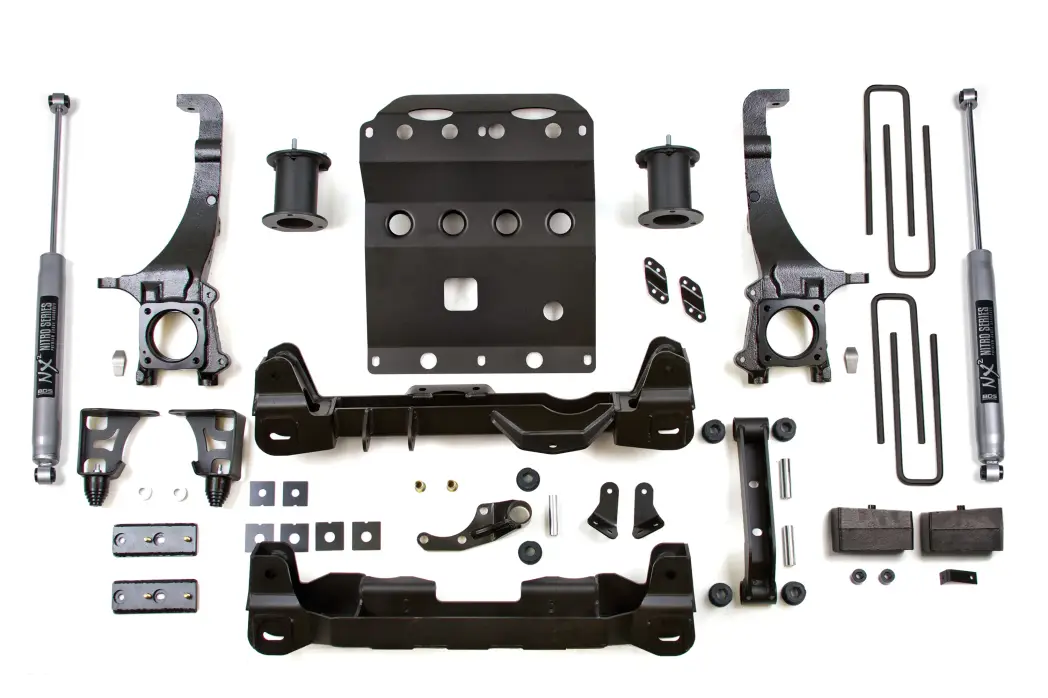

BDS816H | BDS Suspension 4 Inch Lift Kit For Toyota Tacoma 4WD | NX2 Nitro Series Shocks

For 2005-2015 Toyota Tacoma 4WD

BDS816H
Pricing: $2,647.67
Qty:
Free Ground Shipping | Exclusions Apply*

Description

BDS steps up the performance and capability of the 2005-2015 Toyota Tacoma 4WD trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 4.5 in. Backspace

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Will not work on TRD Pro Models
  2. Minor welding required
  3. Requires frame bracket modification
  4. Stock wheels cannot be reinstalled
  5. System will work on 2WD PreRunner models
  6. Can not use 17" wheels.
  7. Some 2014-15 models may not achieve net lift height stated but will have the same lift stance/final height of an equally equipped 05-13 model
  8. Fox Shocks required for 2013-2016 models

Installation

Est. Install Time :

6-8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Reciprocating Saw, Welding Equipment

Specification

  • Front Lift Method : Cross-Member
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 3"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2005ToyotaTacomaPre RunnerALLALL
2005ToyotaTacomaBase4WDALL
2006ToyotaTacomaBase PrerunnerALLALL
2006ToyotaTacomaBase4WDALL
2006ToyotaTacomaPre RunnerALLALL
2006ToyotaTacomaSR5 PrerunnerALLALL
2006ToyotaTacomaTRD Sport PrerunnerALLALL
2007ToyotaTacomaPre RunnerALLALL
2007ToyotaTacomaBase4WDALL
2007ToyotaTacomaTRD Sport PrerunnerALLALL
2007ToyotaTacomaSR5 PrerunnerALLALL
2008ToyotaTacomaBase4WDALL
2008ToyotaTacomaTRD Sport PrerunnerALLALL
2008ToyotaTacomaPre RunnerALLALL
2008ToyotaTacomaSR5 PrerunnerALLALL
2009ToyotaTacomaTRD Sport PrerunnerALLALL
2009ToyotaTacomaSR5 PrerunnerALLALL
2009ToyotaTacomaPre RunnerALLALL
2009ToyotaTacomaBase4WDALL
2010ToyotaTacomaBase4WDALL
2010ToyotaTacomaPre RunnerALLALL
2010ToyotaTacomaTRD SportALLALL
2011ToyotaTacomaBase4WDALL
2011ToyotaTacomaPre RunnerALLALL
2011ToyotaTacomaTRD SportALLALL
2012ToyotaTacomaPre RunnerALLALL
2012ToyotaTacomaBase4WDALL
2012ToyotaTacomaTRD SportALLALL
2013ToyotaTacomaPre RunnerALLALL
2013ToyotaTacomaBase4WDALL
2013ToyotaTacomaTRD SportALLALL
2014ToyotaTacomaALLALLALL
2015ToyotaTacomaPre RunnerALLALL
2015ToyotaTacomaTRD SportALLALL
2015ToyotaTacomaBase4WDALL

Component List

1 BDS018318 2005-2023 Tacoma 3" Rear Block Kit
1 BDS028403 2005-2023 Tacoma 4" Strut Spacer Box Kit
1 BDS028614 2005-2023 Toyota Tacoma Knuckle Box Kit - DS
1 BDS028615 2005-2023 Toyota Tacoma Knuckle Box Kit - PS
1 BDS028601 2005-2015 Tacoma Crossmember Box Kit
1 BDS028602 2005-2015 Tacoma 4-6" Front Box Kit
2 BDS85954 Shock - 26.17 x 15.55 x 2-3/8 - S1/EB1

Tires & Wheels

(Trimming may be required)
33 x 12.5 with 18 x 9 and 4.5 in. Backspace
33 x 12.5 with 20 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W29.0000” x H29.0000” x L48.0000”
